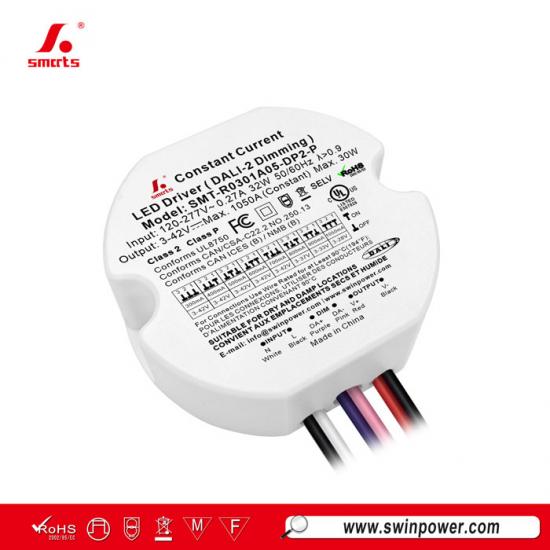

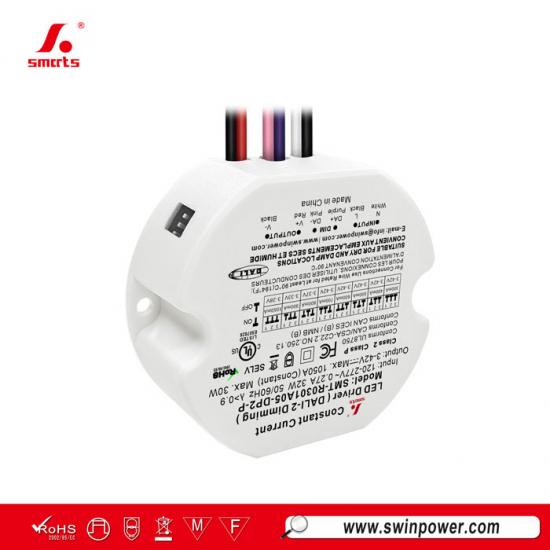

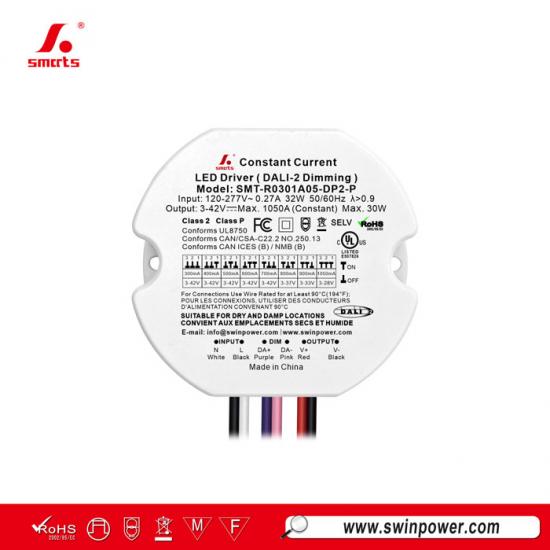

Digital Dimming 30W DALI-2 Dimmable Constant Current Round LED Driver for indoor
Downlights, track lights, and linear modules on a DALI-2 network the 30W constant-current driver covers them. Set 300–1050mA by DIP switch, then dim smoothly from 1% to 100% with zero flicker, perfect for restaurants, showrooms, and offices. The compact round plastic body fits dry and damp locations, and fanless cooling runs silent. Straightforward install, 7-year warranty.

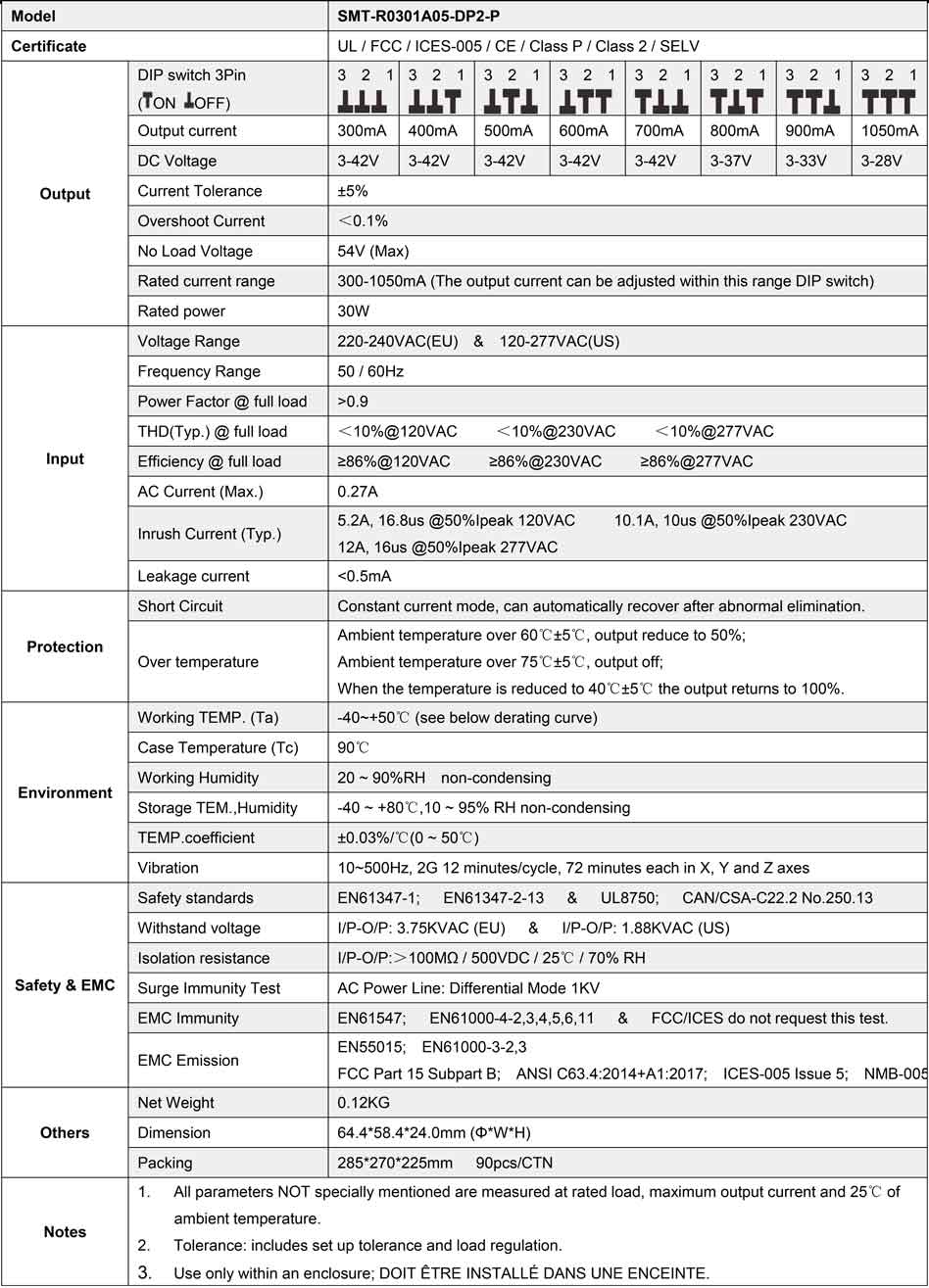

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming electronic wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
Dimming Operation
Connection Diagram for DALI Dimmer:
Related Products
|
DALI-2 dimming led driver over 1–100% at 1% depth, flicker-free for restaurants, showrooms, and commercial spaces. The DIP switch sets the output to match the load, while 120–277VAC (EU 220–240VAC) with PF correction and up to 80% efficiency stays efficient. Short-circuit and over-temperature protection plus fanless cooling keep it reliable. Dry/damp rated, 7-year warranty.

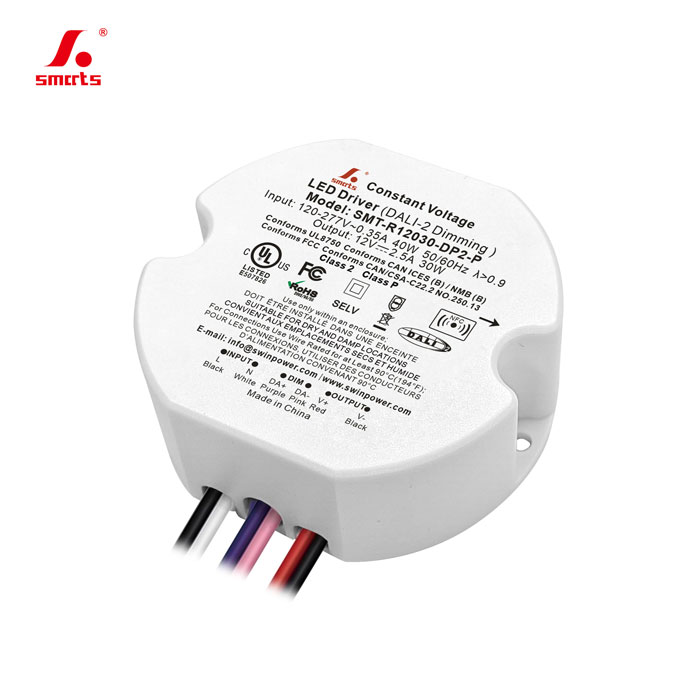

Model: SMT-R12030-DP2-P Input Voltage: 100-277Vac
