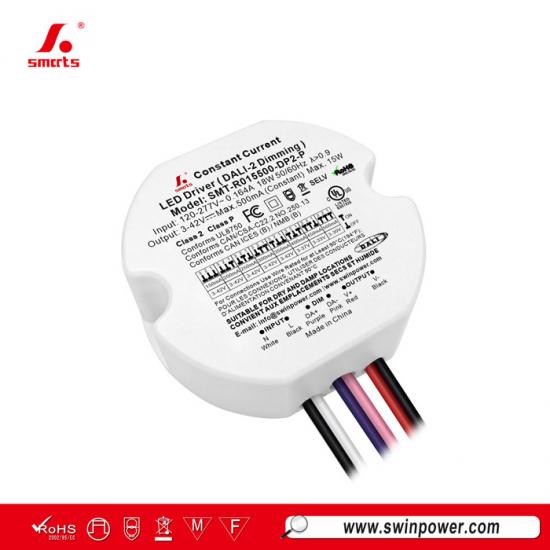

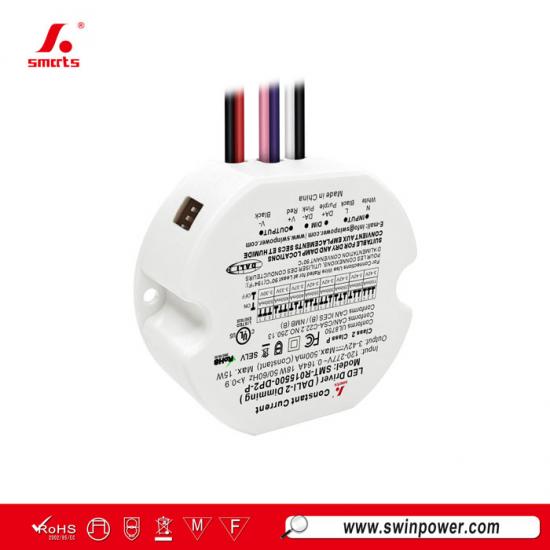

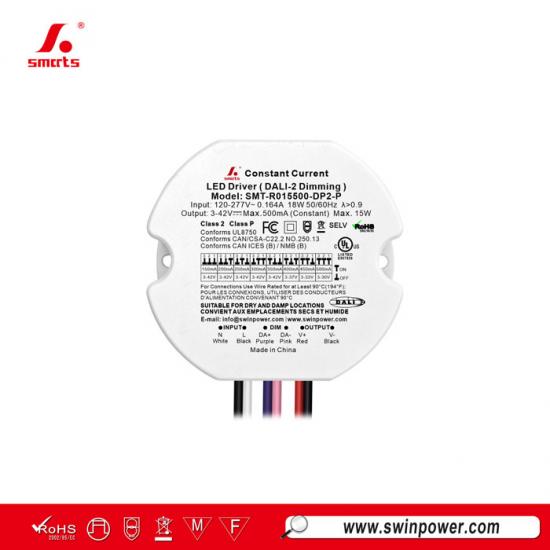

Zero Flicker 15W DALI-2 Dimmable Constant Current Round LED Driver for led lighting
This 15W constant-current driver integrates with scene-setting and daylight-linked systems, dimming smoothly from 1% to 100% without flicker. The DIP switch adapts output from 150 to 500mA to match different modules, and the compact round plastic body installs fast in cabinets and ceilings. Dry/damp rated, fanless, 7-year warranty.

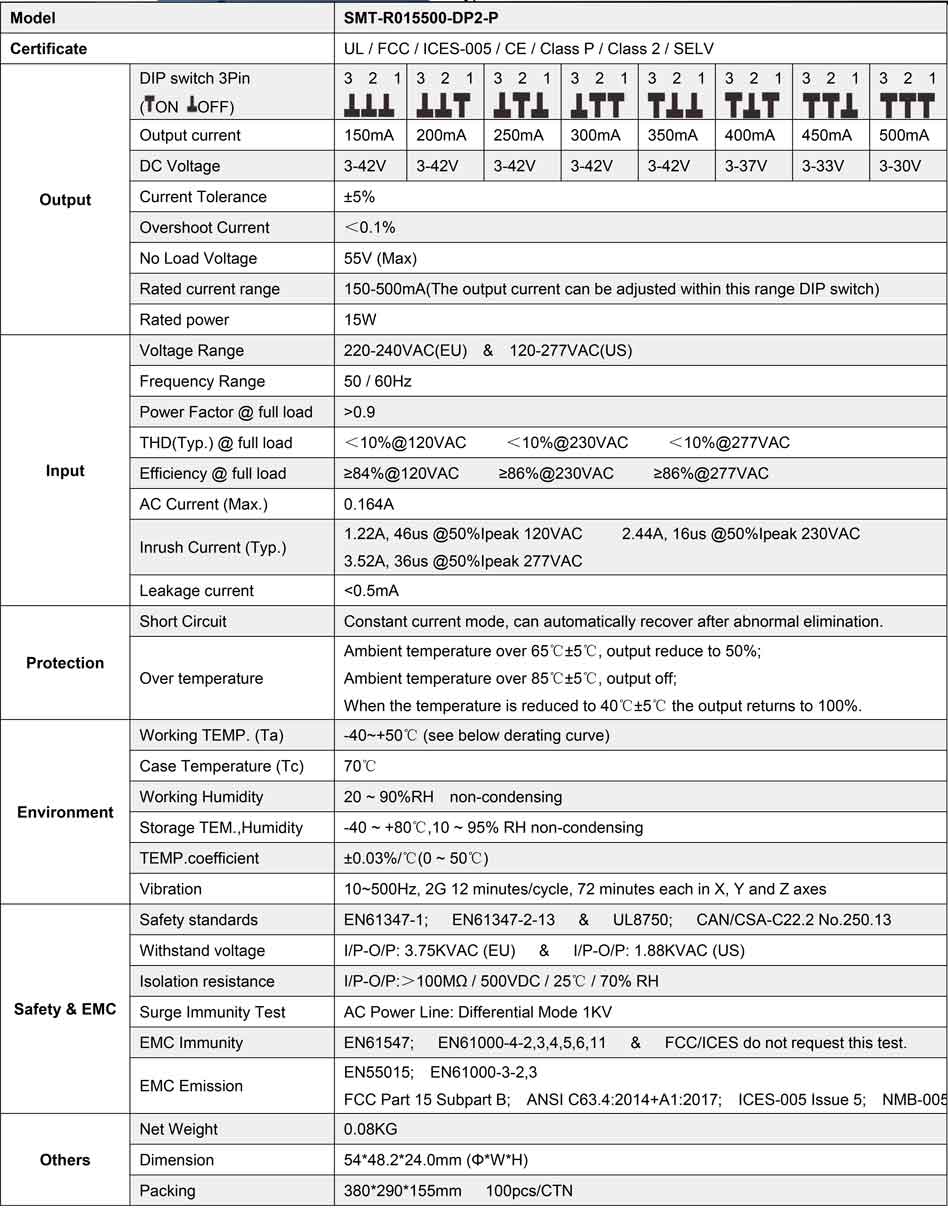

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming electronic wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
Dimming Operation
Connection Diagram for DALI Dimmer:
Related Products
|

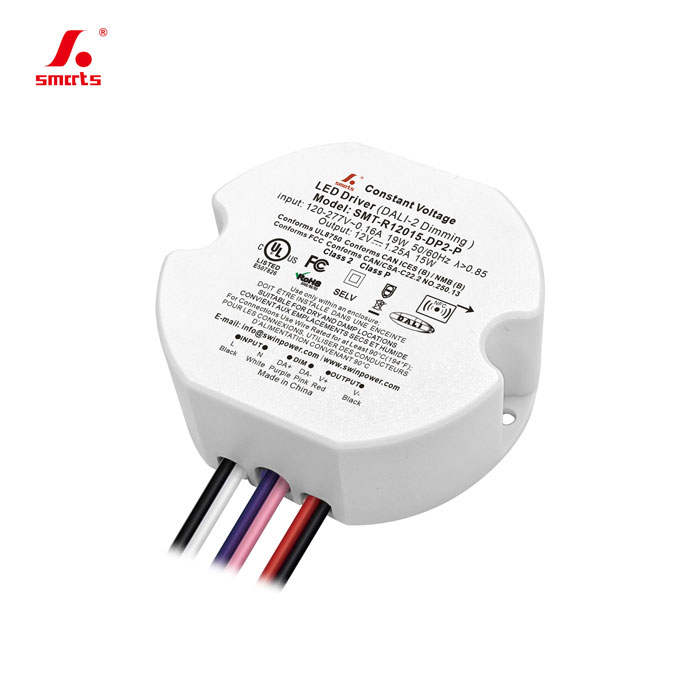

Bring addressable DALI-2 dimming to under-cabinet runs, display cases, and small signage with the 15W constant-voltage round driver. It dims flicker-free across a 1–100% range at 1% depth, ready for scene-setting and daylight-linked control. The DIP switch adapts the output to your fixtures, while the 120–277VAC (EU 220–240VAC) input with PF correction and up to 80% efficiency runs clean. Short-circuit and over-temperature protection, silent fanless cooling, dry/damp rated, 7-year warranty.
