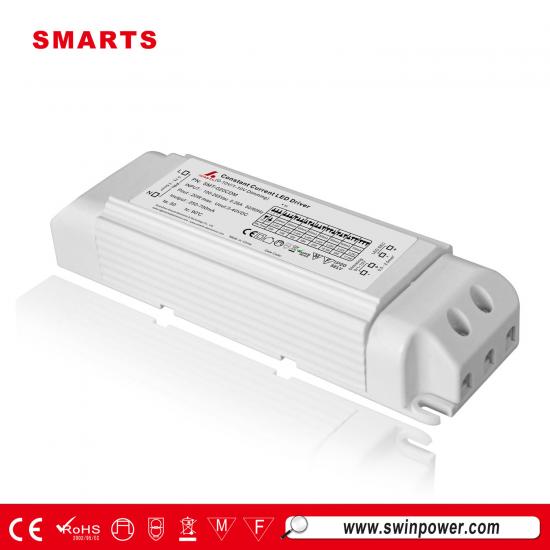

0-10v rohs LED Driver Triac Multi-current 350ma 700ma 20w

SMT-020CDM provide smooth and no flicker 0-100% full dimming range and stepless dimming performance.Multi-current DIP Adjustment output,20W/50W available
  • Brand:

    SMARTS
  • Item No.:

    SMT-020CDM
  • Input Voltage:

    100 -265 VAC
  • Output Voltage:

    3-50VDC
  • Output Current:

    350mA - 700mA
  • Working Mode:

    Constant Current
  • Dimming mode:

    0-10V/ PWM dimmable
  • Size:

    140*45*28mm
  • Certification:

    CE Rohs Certifications
Products description

0-10v rohs LED Driver Triac Multi-current 350ma 700ma 20w


SMARTS’s 0-10V/1-10V/Potentiometer/10V PWM (4 in 1) dimmable 20w led driver, is compatible with all standard 0-10V/1-10V/100K potentiometer/10V PWM dimmer and various lighting control system, such as Lutron, Clispal, C-BUS etc.  The current levels, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 700mA, , are easily switched by adjusting the built-in DIP switch.



  What is your MOQ and lead time for Multi-current DIP Adjustment output constant current led driver?


Answer:

MOQ is 200pcs for each. But we accept trial order or sample order.


Lead time for sample order takes about 7 working days. It takes about 12-15 working days for production order.

It depends on the quantities.



  Features for 20w led driver


·Output constant current type 0/1-10V dimmable led driver

·Input range : 100-265VAC

·Efficiency > 83%

·Protections:short circuit /over load/ over current

·Fully isolated plastic case, IP20 design solution

·Easy installation, suitable for dry location

·Cooling by free air convection

·Dimming function: 0-10V/1-10V/10V PWM dimmable

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·3 years warranty




Model

SMT-020CDM

Output

Rated current

700mA

600mA

550mA

500mA

450mA

400mA

350mA

Current Tolerance

±3%

DC Voltage

3-28V

3-32V

3-36V

3-40V

3-45V

3-50V

3-50V

Rated power

20W

20W

20W

20W

20W

20W

17.5W

Input

Rated Input Voltage

100 -265 VAC

Rated Frequency:

47-63HZ

Power Factor

PF0.99/100VAC  PF0.92/230VAC  PF0.87/240VAC(Full loading)

Full Load Efficiency(Typ.)

>85%

>85%

>85%

>84%

>84%

>85%

>85%

AC Current(Max.)

0.12A

0.12A

0.12A

0.12A

0.12A

0.12A

0.12A

Leakage current

0.7mA/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed

Over Load

120%

Protection Class:

II





Environ-

ment

Working TEMP.

-40-+60℃

Working Humidity

20-95%RH,non-condensing

Storage TEM. Humidity

-40-+80℃,10-95%RH

TEMP. coefficient

±0.03%/℃(0-50℃)

Vibration

10-500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes





Safety & EMC

Safety standards

EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

EN55015,  EN61000-3-2,3 (≧50% load)

EMC IMMUNITY

EN61000-4-2,3,4,5,6 ,11, EN61547,A light industry level

Others

Weight

0.19Kg

Size

140*45*28mm(L*W*H)

packing

CTN size:324*298*188mm, 50PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110VAC & 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set us tolerance, line regulation and load regulation .

  Label
0 10v dimming led driver



  Mechanical Specification for led driver 20w :


0-10v led driver



Ø Input with Live Wire AC (L), Neutral Wire AC(N)

Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED Lamps.

Ø Signal dimming:0-10V or 1-10V (DIM +) ,(DIM +) To be connected to 0-10V or 1-10V dimmer or system.

Ø Suggested wire diameter:Input 0.75-2.5m; Output:0.5-2.5m.




Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged


  Derating Curve for led driver triac :


0-10v led driver



  0-10V Dimmable LED Driver multiple Connection


Top10 led driver manufacturers



  Notice for 0-10v led driver:


Ø Built-in 3 in 1 dimming function, IP20 rated .Output luminous can be adjusted through output cable by connecting a resistance or 0/1-10Vdc or 10V PWM signal between DIM+ and DIM-.

Ø Please DO NOT connect “DIM-“ to “LED-“
