Smarts SMT-020-0900CD dimming function is 0-10V/ 1-10V/ 10V PWM or potentiom.
  • Brand:

    SMARTS
  • Item No.:

    SMT-020-0900CD
  • Input Voltage:

    100-265vac
  • Output Voltage:

    10-20vdc
  • Output Current:

    900ma
  • Working Mode:

    constant current
  • Dimming mode:

    0-10v dimmable
  • Size:

    140*45*28mm
  • Certification:

    CE,ETL ,FCC,RoHS
Products description

10-20vdc 900ma 18w 0-10v led dimmable driver suppliers

Smarts 0-10v 10-20vdc 900ma led dimmable driver suppliers could suitable for LED lighting and moving sign applications with dimming Can match Zumtobel's LED downlight 900ma.


   Feture


·Output constant current

·Range 100-265VAC

 ·Built-in PFC function, PF>0.9

 ·Efficiency 86%

 ·Protections:short circuit/over current/over voltage

 ·Cooling by free air convection

 ·IP20 design for indoor installation .

 ·Dimming function:0-10V/ 1-10V/ 10V PWM or potentiom

 ·Dimming range:0-100%

 ·Suitable for LED lighting and moving sign applications with dimming

 ·Compliance to worldwide safety regulations for lighting

 ·5 years warranty



   Specification



Model

SMT-020-0900CD

SMT-025-0700CD

SMT-030-0500CD

SMT-050-0350CD

Output

DC Current

900mA

700mA

500mA

350mA

Current Accuracy

±3%

Voltage Range

12-20V

15-25V

15-30V

35-50V

Rated power

18W

17.5W

15W

17.5W

Input

Voltage Range

100~265VAC

Frequency Range

47~63HZ

PF(Typ.)

PF>0.9

Full Load Efficiency(Typ)

>86%(110V)

>88%(220V)

>86%(110V)

>88%(220V)

>86%(110V)

>88%(220V)

>86%(110V)

>88%(220V)

AC Current (Typ.)

0.104A(110V)

0.106A(220V)

0.102A(110V)

0.103A(220V)

0.102A(110V)

0.103A(220V)

0.101A(110V)

0.103A(220V)

Leakage current

<0.72mA/110VAC / ﹤0.75mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Current

≦1.4*Iout

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+50℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13. IP20

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≧50%Load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level

Others

Weight

0.2Kg

Size

140*45*27mm(L*W*H)

packing

320*280*215mm/50pcs /CTN   145*50*36mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

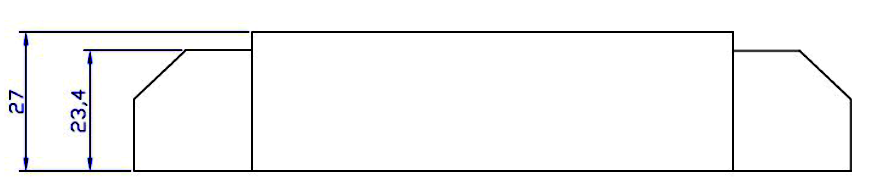

   0-10V dimmable LED driver Mechanical Specification


led dimmable driver suppliers



Ø Input with Live Wire(L) Neutral Wire (N)

Ø Signal Dimming (0/1-10V)(DIM+), (DIM-)

Ø Output LED SEC (LED+),(LED-)



  Dimming Operation


Ø Built-in 3 in 1 dimming function, IP20 rated .Output constant current level can be adjusted through output cable by connection a resistance or 0/1-10V DC or 10V PWM signal between DIM+ and DIM-

Ø Please DO NOT connect “DIM-“ to “LED-“


   Reference resistance value for output current adjustment (Typical)


Resistance value

Signle driver

10KΩ

20KΩ

30KΩ

40KΩ

50KΩ

60KΩ

70KΩ

80KΩ

90KΩ

100KΩ

OPEN

Multiple drivers

0Ω/N

10KΩ/N

20KΩ/N

30KΩ/N

40KΩ/N

50KΩ/N

60KΩ/N

70KΩ/N

80KΩ/N

90KΩ/N

100KΩ/N

——

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%



  1-10/0-10V dimmable function for output current adjustment(Typical)

Dimming value

0V

1V

2V

3V

4V

5V

6V

7V

8V

9V

10V

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%



   10V PWM signal for output current adjustment (Typical):

Duty value

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

OPEN

Percentage of rated current

0%

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

102%-108%


led power supply 220v



Ø ØLoad carried in accordance with the load derating curve, according to the ambient temperature derating, in

order to extend the working life.


  Connect Drawing


smps led power supply

Leave a message
To know more our LED drivers/power supplies/LED transformers, pl. send email to us, we will reaply you soon.
