100-277VAC Ultra thin slim power Supply 24V 12V Constant Voltage led driver 100W 150W IP67
Model SMT-012-150VWSW is a 12v 150W slim Ultra thin power supply, SMT-024-150VWSW is also a non dimmable IP67 power supply 150w. work with PARADIGM LED trade lights, light boxes.
Specification
model
SMT-012-150VWSW
SMT-024-150VWSW
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
12.5A
6.25A
Load Regulation
±1%
Rated power
150W
150W
Input
Voltage Range
100-277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
80%@120V, 80%@230V ,89%@277V
80%@120V,80%@230V,92%@277V
Full Load Efficiency（Typ.）
0.99@120V ;0.98@230V ;0.98@277V
0.99@120V ; 0.98@230V ;0.98@277V
AC Current（Typ.）
0.5A/110VAC
Inrush Current （Typ.）
7A, 50%, 420us @120VAC; 12A, 50% , 480us @277VAC
Leakage current
<0.50mA
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode, recovers automatically after fault condition
Over voltage
≦140VAC(90~135V) , ≦285VAC(170~277V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750 , CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
Others
Weight
About 0.4Kg
Size
368*32*23mm (L*W*H)
packing
30PCS/CTN （L*W*H）
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”t wisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
is removed.
 |
 |
 |
 |
Dimension
Compatible LED light type
150W constant voltage power supply accept OEM and R&D design, 7 years warranty, alunimum case IP67, work with VISUALLED LED screen outdoor.
Related Products
|

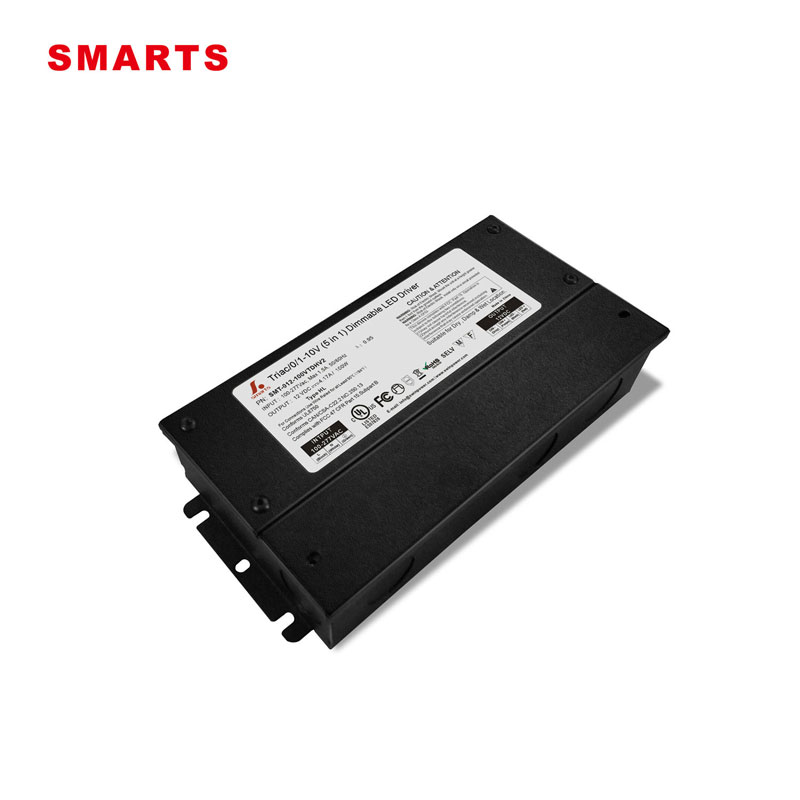

100W dimmable led power supply 12v is triac dimming and 0-10v dimming driver with NEMA rated 4X.
