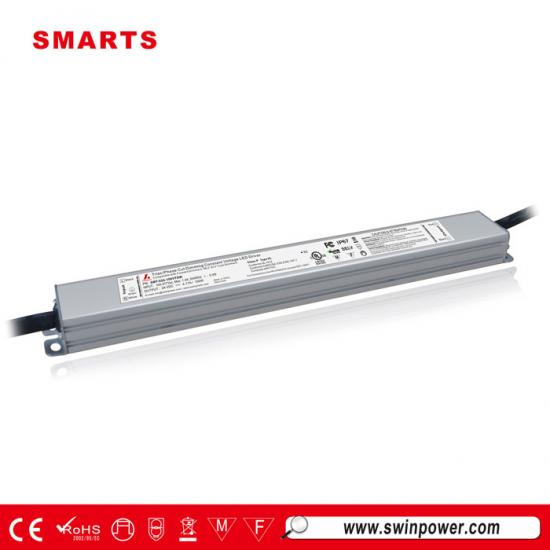

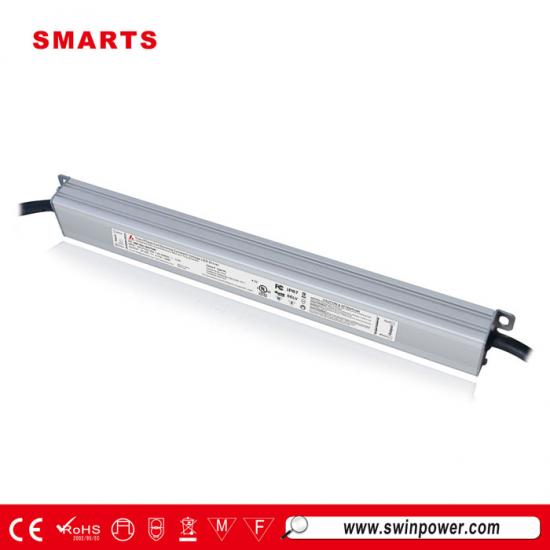

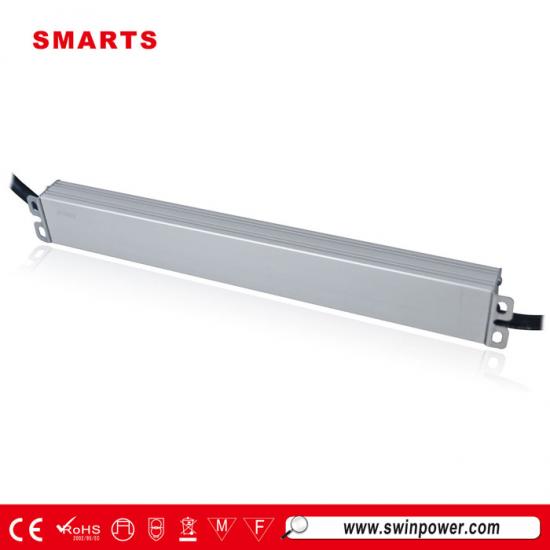

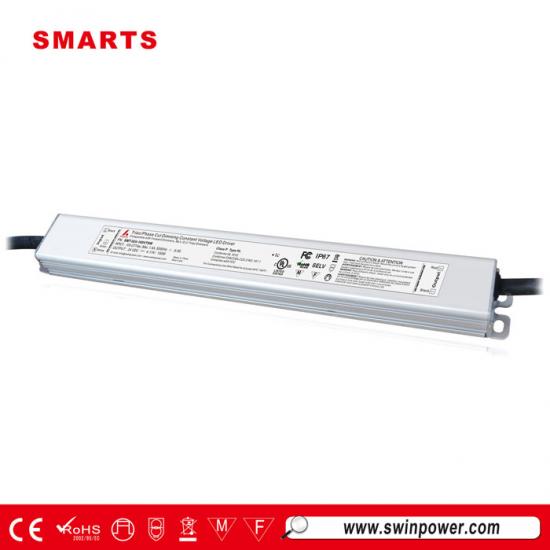

100w IP67 24v elv Triac Dimmable 4A UL class 2 outdoor led driver
SMT-024-096VTSW LED Driver is ultra slim led driver class 2, follows safety standard in UL 8750 and UL1310. This unit can be operated with input voltage ranging from 100 to 277 VAC and withstandard voltage 3.75KV,with TORCHSTAR Basic MR16 LED bulbs can save power to the greatest extent.
What is the dimming Operation for SMT-024-100VTSW?
Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Features
·Output constant voltage
·Input voltage range 100-277VAC
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry or damp environment installations
·Cooling by free air convection
·Work with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·PWM output, does not change the color index
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·7 years warranty
Specification
|
model |
SMT-012-100VTSW |
SMT-024-096VTSW |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
8.33Amp |
4Amp |
|
|
Rated power |
100W |
96W (class 2) |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±1% |
|
|
Input |
Voltage Range |
100-277 VAC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor ( Typ.） |
PF≧0.99/110V ; PF≧0.98/277V |
|
|
|
Full Load Efficiency（Typ.） |
>83% |
>84% |
|
|
AC Current（Typ.） |
1.10A/100VAC / 0.43A/277VAC |
|
|
|
Inrush Current（Typ.） |
9.2A, 50%, 1ms@120VAC / 26.4A, 50%, 780us@2770VAC |
|
|
|
Leakage current |
<0.50mA/110VAC; ﹤0.13mA/277VAC |
|
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
| Label |
 |
||
 |
 |
 |
 |

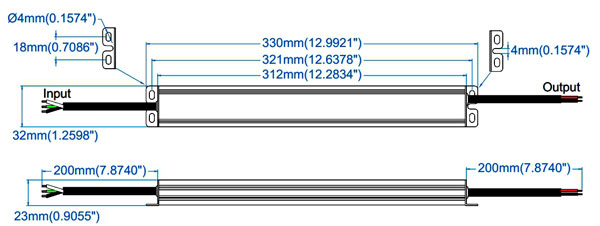

Mechanical Specification
※Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output: Red is（DIM+）,Black is（DIM-）
Dimming Operation
※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
※Please try to use dimmers with power at least 1.5 times as the output power of the driver.
