110v 220v ac 12 vdc 24vdc constant voltage led light strip power supply 100w 120w

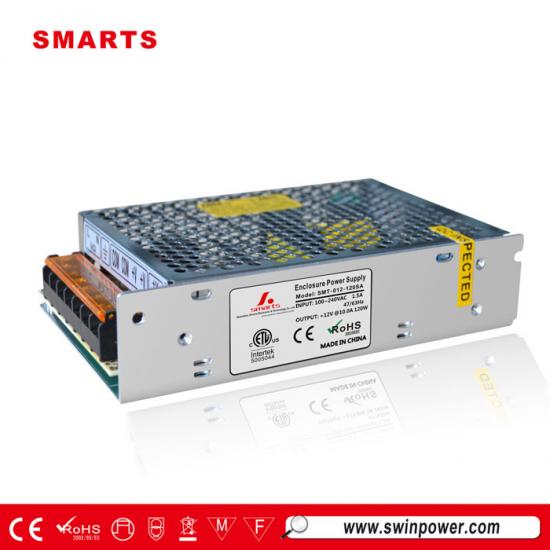

Model SMT-012-120SA is a 12v 120w 10 amp ac dc power supply, SMT-024-120SA is also a constant voltage led power supply in 24vdc 120watt. aluminum case IP20 rated, competitive with Meanwell LRS series AC-DC switching power supply.
Specification
model
SMT-012-120SA
SMT-024-120SA
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
10A
5A
Load Regulation
±1%
Rated power
120W
120W
Input
Voltage Range
100-240V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
80%@120V, 80%@230V
80%@120V,80%@230V
Full Load Efficiency（Typ.）
0.70@120V ;0.70@230V
0.7@120V ; 0.7@230V
AC Current（Typ.）
0.5A/110VAC
Inrush Current （Typ.）
7A, 50%, 420us @120VAC; 12A, 50% , 480us @277VAC
Leakage current
<0.50mA
Over temperature
shut down o/p voltage, automatically recover after cooling.
Short Circuit
Over Loading
hiccup mode, recovers automatically after fault condition is removed
Over voltage
≦265VAC
Environment
Working TEMP.
-25～+55℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，5～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750 , CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Others
Weight
About 1.3Kg
Size
159*98*38mm (L*W*H)
packing
20PCS/CTN （L*W*H）
Notes
All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature.
 |
 |
 |
 |
Dimension
Compatible LED light type
12vdc 24vdc led light strip power supply IP20 design for indoor locations, swith mode power supply,aluminum case. work with Walmart EEEkit RGB LED Light Strip.
Related Products
|
12V DC power supply 120W 10AMP is non dimmable led driver and junction box integrated power supply. dry and damp locations use.
Model：SMT-012-120VWJ input voltage：100~277V AC Efficiency > 86% PFC:93% Size: 220*94.5*40mm（L*W*H） Weight：1.40Kg/pcs |
|
|
|

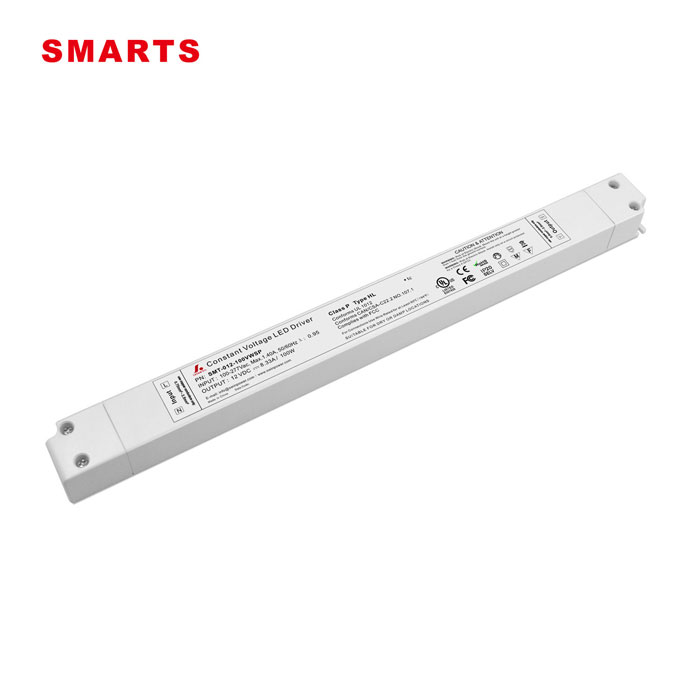

Slim led power supply 100w, UL ,CE, ROHS listed, 7 years warranty
