110v slim size 100 watt 0 10v and triac dimmable led driver wholesaler
slim size triac dimmable led driver series comes in 12VDC and 24VDC models. Dimmable drivers delivers smooth, stable, flicker-free dimming with soft start and desirable fade-on and fade-to-dark performance. LED Drivers are fully dimmable with any standard TRIAC dimmer switch and 0-10V Dimmer. These new drivers delivers smooth ficker free dimming. Mett T24 & JA8 standard.
|
model |
SMT-012-100VTDSP |
SMT-024-096VTDSP |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
8.33Amp |
4Amp |
|
|
Rated power |
100W |
96W (class 2) |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
THD(Typ. ) @ full load |
<10%@120VAC <15%@277VAC |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.99@277VAC |
||
|
Full Load Efficiency（Typ.） |
82%@120VAC 86%@277VAC |
85%@120VAC 88%@277VAC |
|
|
AC Current（Typ.） |
1.40A |
||
|
Inrush Current（Typ.） |
27.0A |
||
|
Leakage current |
<0.50mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 ,CAN/CSA-C22.2 No.250.13 |
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11 |
||
|
Others |
Weight |
0.55Kg |
|
|
Size |
330*32*23mm (L*W*H) |
||
|
packing |
50PCS/CTN Carton size: 350*330*145mm |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |
Mechanical Specification
Ø Input terminals "Black" and "White" to connect to AC L and N.
Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
Ø Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
Ø Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.
Dimming Operation and Connecting Diagram
1. Using two ways of dimming at the same time
customers should be assured that LED lighting is up to the max. Brightness then you could operate with the other dimming;
2. Using one dimming ---TRIAC/Phase cut dimming
Ø The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Ø Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
Ø Min loading is about 10%
Ø Please try to use dimmers with power at least 1.5 times as the output power of the driver.
3. Using one dimming ---0-10/1-10V dimming
Compatible Lighting Type

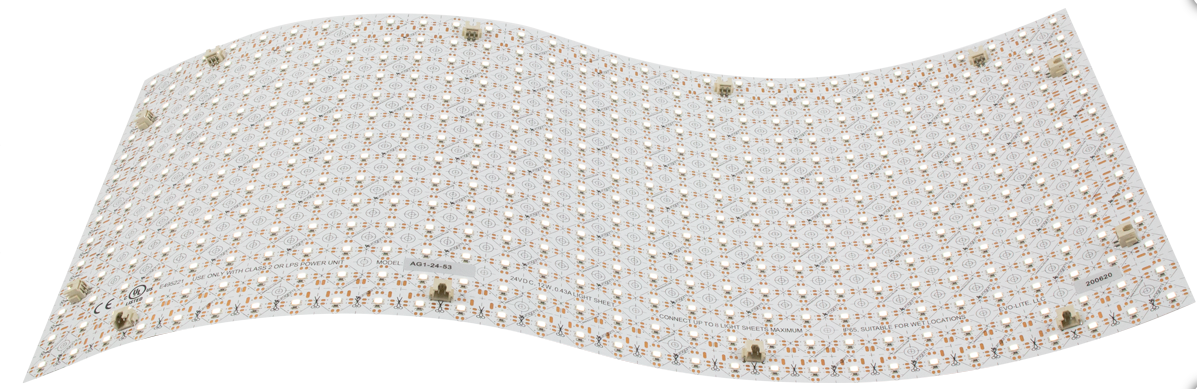

Auragami Single Color White is available in 2700K, 3000K, 3500K, 4100K, 5300K, and custom color temperatures. Our 100 watt dimmable driver led can be work well with AG1-24-27 SINGLE COLOR WHITE from evo-lite.
  |
|
