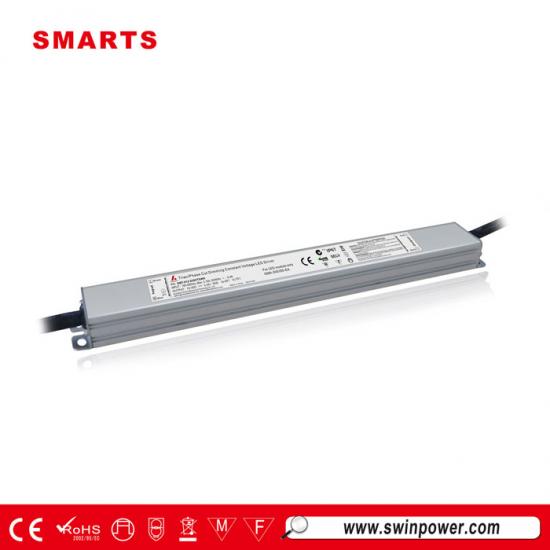

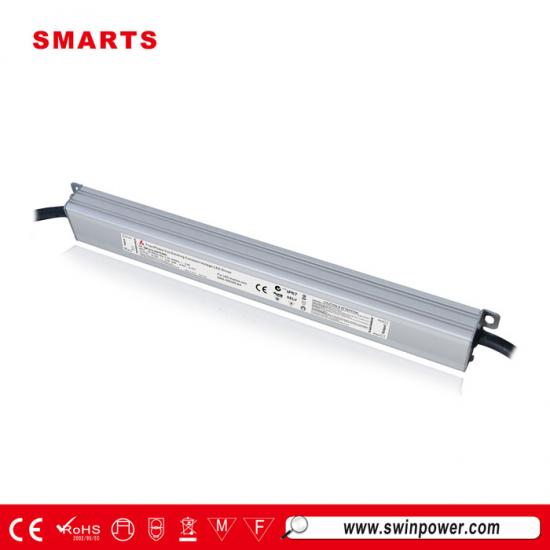

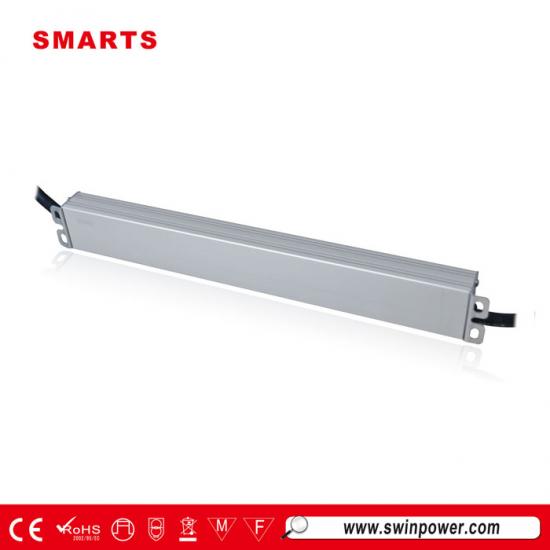

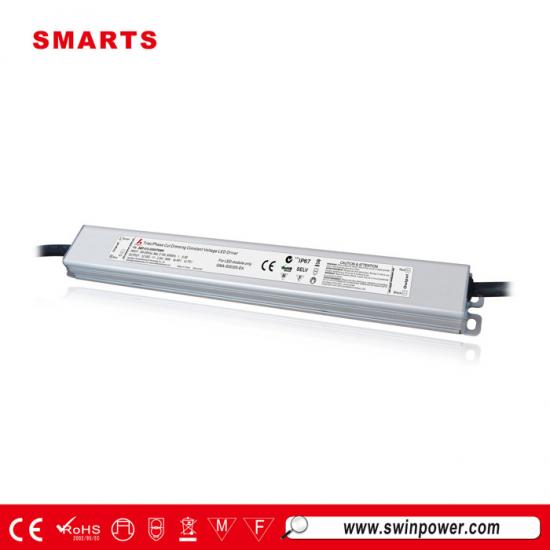

The SMT-012-030VTSWH is wattage of 30 watt, and its able to work and use in indoor/outdoor led constant voltage lights like coxotech LED strips, led modules. its with PWM output, and no minimum load limiation. this model is 170-265vac for EU input voltage range use,power supply with 100-277vac version is also avalible.
Specification of 12v 30w waterproof led driver
|
model |
SMT-012-030VTSWH |
SMT-024-030VTSWH |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% |
||
|
Input |
Voltage Range |
170-265 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.98/220V |
||
|
Full Load Efficiency（Typ.） |
>79% |
>81% |
|
|
AC Current（Typ.） |
0.13A/220VAcC |
||
|
Inrush Current（Typ.） |
7A, 50%, 420us |
||
|
Leakage current |
﹤0.25mA/220VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:2KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
|
Others |
Weight |
0.35Kg |
|
|
Size |
260*32*20mm (L*W*H) |
||
|
packing |
50PCS/CTN |
||
|
Notes |
1. If all dimmable LED drivers we ordered will provide more than 12 or 24 volts? As our some of LED lighting 's voltage is more than 24VDC a bit . Answer: ±0.5% is the acceptable margin of error for both 12v dc and 24vdc led drivers. |
||
| Label |
 |
||
 |
 |
 |
 |
Dimension
More wattage option in super lim type led drivers 30w, 36w 60w 100w led driver, contact us for getting more details.
