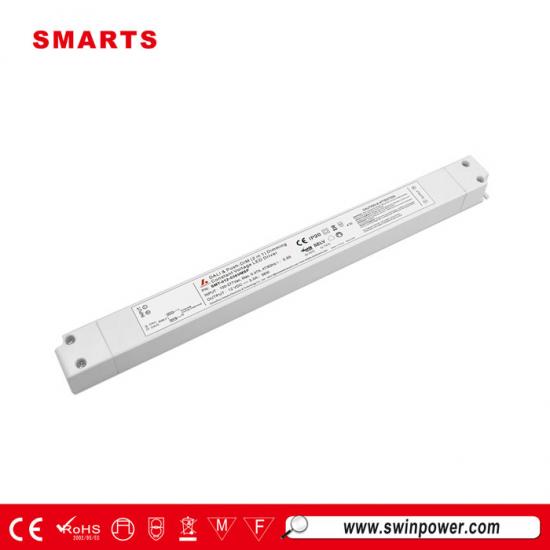

model

SMT-012-036VMSP

SMT-024-036VMSP

Output

DC Voltage

12VDC

24VDC

Voltage Tolerance

±0.5V

±0.5V

Rated current

3.0Amp

1.5Amp

Rated power

36W

36W

Voltage Regulation

±0.5%

Load Regulation

±2%

±1%

Input

Voltage Range

100-277VAC

Frequency Range

47~63HZ

Power Factor(Typ.)@ full load

0.98@120VAC

0.98@120VAC

Efficiency(Typ.)@ full load(Typ.)

>81%

>81%

AC Current(Max.)

0.38A@100VAC

THD(Typ. ) @ full load

10%@120VAC

10%@120VAC

Inrush Current(Typ.)

4.64A (twidth=460us) @120VAC ;  33.2A (twidth=116us) @230VAC ;

12.4A (twidth=430us) @277VAC ;

Leakage current

<0.5mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Load

≤120% Hiccup mode ,recovers automatically after fault condition is removed

Protection Class

II

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1    EN61347-2-13  (EU)  and  UL8750  (US)

Withstand voltage

I/P-O/P:3.75KVAC  (EU)  and  I/P-O/P:1.88KVAC  (US)

Isolation resistance

I/P-O/P:100M Ohms/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015, EN61000-3-2 (≥60%load) (EU) and FCC Part 15 (US)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11,  EN61547, light industry

Others

Net Weight

0.20Kg

Dimension

260*30*18.5mm(L*W*H)

packing

330*275*130mm/50PCS/CTN    G.W.:11KG/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
