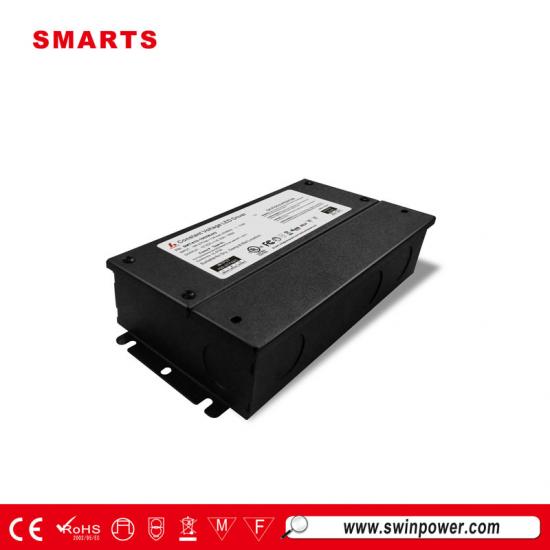

12v dc waterproof non dimming led driver 100w ul listed for led lights
Smarts 100w led power supply 12v outdoor is waterproof and rated for wet or damp locations.Designed for commercial, industrial and residential applications. Given 7 years extra long quality assurance. Well worked with Birddog Lighting 12 volt SMD 5050 LED strip lights.
Specification
|
model |
SMT-012-100VWJ (1.0 version) SMT-012-100VWJV2 (2.0 version)
|
SMT-024-096VWJ (1.0 version) SMT-024-100VWJV2 (2.0 version)
|
||
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
±0.5V |
||
|
Rated current |
8.3A |
4.0A |
||
|
Rated power |
100W |
96W（Class 2） |
||
|
Input |
Voltage Range |
100-277VAC |
||
|
Frequency Range |
47-63Hz |
|||
|
Power Factor(Typ.)@ full load |
0.99@120V ;0.97@230V ;0.95@277V |
0.99@120V ;0.97@230V ;0.97@277V |
||
|
THD(Typ.)@ full load |
<15% @120V <20%@230V <20% @277V |
|||
|
Efficiency(Typ.)@ full load |
81%@120V 85%@230V 85%@277V |
83%@120V 88%@230V 87%@277V |
||
|
AC Current(Max.) |
1.5A (100VAC) |
|||
|
Inrush Current (Typ.) |
20A,50% ,1.6ms@120V ; 30A,50% 200us@230V ; 25A 50% 1.2ms@277V |
|||
|
Leakage current |
<0.50mA |
|||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover afterfault condition removed |
||
|
Over Loading |
≤120% constant current limiting, auto-recovery |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling.
|
|||
|
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
||
|
Working Humidity |
20~90%RH, non-condensing |
|||
|
Storage TEMP. Humidity |
-40~+80℃,10~95%RH |
|||
|
TEMP .coefficient |
±0.03%/℃(0~50℃) |
|||
|
Vibration |
10~500Hz,5G 10min./1 cycle, period for60min. each along X,Y,Z axes
|
|||
|
Safety&EMC |
Safety standards |
UL8750 |
||
|
Withstand voltage |
I/P-O/P:1.88KVAC |
|||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
FCC Part 15 B |
|||
|
Others |
Weight |
1.3Kg |
||
|
Size |
1.0 version: 220*93*40mm (L*W*H) / 2.0 version: 220*94.5*40mm |
|||
|
packing |
10PCS/CTN 385*335*200mm 20PCS/CTN |
|||
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 1. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
|||
 |
 |
 |
 |
■ Mechanical Specification:
Unite: mm
Tolerance:P 0.5-2mm
1.0 version: SMT-012-100VWJ / SMT-024-096VWJ
2.0 version: SMT-012-100VWJV2 / SMT-024-096VWJV2
※Input power cord: 18AWG Black and White to be connected to AC L and N ,Green wire go ground
※Output power cord: 16AWG, Red to LED Positive side (+) , Black to LED Negative side (-).
■Derating Curve
※Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.
■ Simple Connection Diagram
1)
2)
■ Instruction:
※This driver should be installed by qualified and professional person;
※Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
※Ensure that wiring is correct before test in order to avoid light and power supply damage;
※If the LED drivers do not work normally, pl. don’t maintain privately, but contact us: sales9@smartselectronics.com Or take a phonecall: 86 18016688251
Welcome to visite our official website: www.marts-electronics.com & www.swinpower.com
Compatible Dimmer Type
SMT-012-100VWJV2 ul listed power supply for led lights has built in short circuit, over heat, and over voltage protection and adheres to UL safety standards. PFC function is included. Well matched with AQLIGHTING LED Tape Light LEDAQT-55-60-WW-KIT.
|
|
Related Products
|
|
Belong to UL listed, led strip light transformer 12 waterproof with wide input voltage ranging from 100 to 277VAC, and 7 years warranty. Has the output power 30watt and output voltage 12 volt.
Mode：SMT-012-030VWJV2 intput voltage：100~277V AC Output Voltage: 12vdc Output Current: 2.5A Working Mode:Constant voltage Dimming Mode: Non dimming
|
