150W dali-2 & push DT8 dimming 12 volt constant voltage led drivers power supply for outdoor lighting

SMARTS DALI-2 series dimmable LED driver 150W 12V constant voltage output mode, working efficiency up to 93%, follow the dali-2 dimming protocol IEC62386. Dimming range between 0.1~100% ultra-deep dimming. Dimming performance is as good as Magnitude Lighting's 150W dimmable LED driver
  • Brand:

    SMARTS
  • Item No.:

    SMT-JB12150V-DP2-4C
  • Input Voltage:

    100-277Vac
  • Output Voltage:

    12VDC/24VDC/36VDC/48VDC
  • Working Mode:

    Constant Voltage
  • Dimming mode:

    DALI 2&PUSH Dimmable
  • Size:

    293*125*40mm
  • Certification:

    UL
Products description

150W dali-2 & push DT8 dimming 12 volt constant voltage led drivers power supply for outdoor lighting

100-277vac constant voltage dali-2 dimmable led driver 150W 4 channels. It can realize single light single control, group and scene dimming. It can accurately adjust the brightness and color temperature of the light according to user needs. It is suitable for installation and use of smart led lighting projects.


  Specification

Model SMT-JB12150V-DP2-4C SMT-JB24150V-DP2-4C SMT-JB36150V-DP2-4C SMT-JB48150V-DP2-4C
Output DC Voltage 12V(12-13.5V) 24V(24-26V) 36V(36-38V) 48V(48-50V)
Voltage Tolerance ±0.5V ±0.5V ±0.5V ±0.5V
Rated current 12.5A 6.25A 4.17A 3.13A
Rated power 150W
Load Regulation 2% 1% 1% 1%
Input Voltage Range 100-277VAC
Frequency Range 47 - 63Hz
Power Factor(Typ.)@ full load PF≥0.98@120VAC    PF≥0.94@277VAC (Full loading)
THD(Typ.)@ full load ≤10%@120VAC ;   ≤15%@277VAC
Efficiency(Typ.)@ full load

90%@120VAC

91%@277VAC

91.5%@120VAC

93%@277VAC

91.5%@120VAC

92.5%@277VAC

91.5%@120VAC

92.5%@277VAC

AC Current(Max.) 1.7A
No-load power
Consumption(optional)
1.0W(@120V)
1.28W(@277V)
1.48W(@120V)
1.76W(@277V)
1.52W(@120V)
1.79W(@277V)
1.56W(@120V)
1.83W(@277V)
Standby power
Consumption(optional)
0.24W(@120V)
0.45W(@277V)
0.24W(@120V)
0.44W(@277V)
0.24W(@120V)
0.45W(@277V)
0.24W(@120V)
0.47W(@277V)
Inrush Current (Typ.) 42.4A, 50%, 496us @120VAC;68A, 50% , 380us @277VAC
Leakage current <0.5mA
Protection Short Circuit Hiccup mode, recover automatically after fault condition is removed
Over Load ≤120% ,hiccup mode, recover automatically after fault condition is removed
Over temperature case temp. over 100℃±10℃,output will be off; recovers automatically after temp. drops.
Environ-ment Working TEMP. -40 ~ +70℃ (see below decrating curve)
Working Humidity 20 ~ 95%RH,non-condensing
Storage TEM.,Humidity -40 ~ +80℃,10 ~ 95%RH
TEMP.coefficient ±0.03%/℃(0 ~ 50℃)
Vibration 10 ~ 500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety & EMC Safety standards UL8750  UL1310
Withstand voltage I/P-O/P:1.80KVAC   I/P-FG:1.8KVAC  O/P-FG:1.8KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC Emission FCC  Part 15 Subpart B
EMC Immunity EN61000-4-2,3,4,5,6,11  EN61547
Others Net Weight 1.05kg/pcs
Dimension 293*125*40mm (L*W*H)
packing Qty: 20cs/ctn;   G.W: 22.7kg/ctn;    Ctn size: 330*300*215mm
Notes 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Mechanical Specification


Input & Output wiring

※Input electronic cable 3*18AWG, the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US);

※Output : 12V electronic cable 3*16AWG to be connected to LED Light;

          24V electronic cable 3*18AWG to be connected to LED Light;

Dimming cable

Dimming electronic cable 3*18AWGBrown DA/N and Purple DA/L (No polar) connected to the DALI BUS when use DALI function.

Brown (N) is connected to AC (N) while Purple (L) and pink (CCT Push )connected to CCT Push dim switch dimmer( L) when use Push function.

※Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.

CCT (TW) dimming: electronic cable, Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative

Note:  there is external antenna at output side.  Don't disassemble!

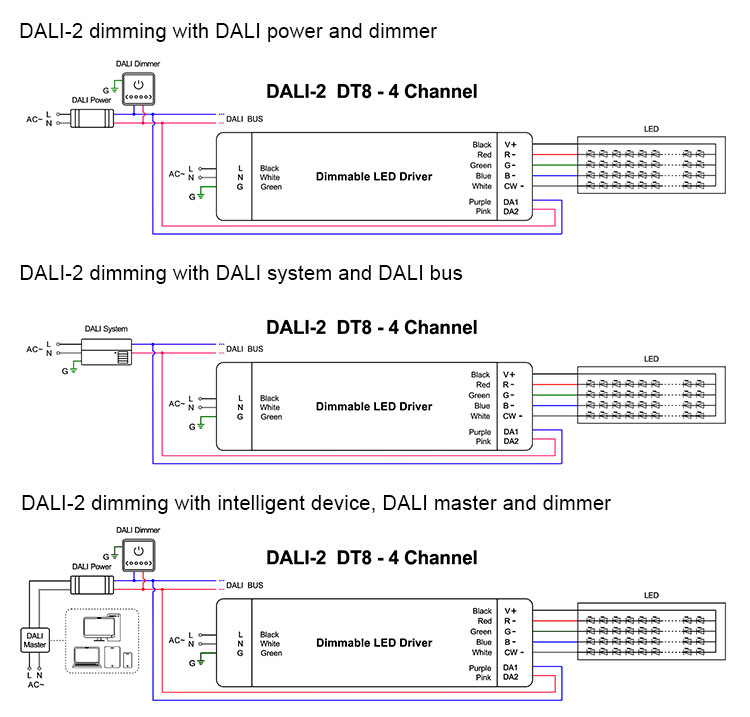

 Dimming Operation

Note: For DALI Dimming Wiring Diagram 3, please noted that only one DALI power is need in the DALI bus, so no extra DALI power is needed if the Master or Dimmer already includes the DALI Power.


 Dimming Operation


The default address for the DALI-2 LED driver is 001.

Address settings device:

Address settings:

① RDM setting address:

Set the address by the RDM device. For detailed operation, please refer to RDM device instruction manual.

② NFC setting address:

The DALI-2 led drivers’ address can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers


Adjust output voltage Operation

Adjust output voltage slightly for DALI-2 LED drivers

1) The driver output voltage can be read and written by a mobile with NFC APP or NFC handheld device (NFC read & write device: NFC-RW) by close to the NFC signal area of the DALI-2 LED drivers

2) Voltage range: level 1~10, each level is 0.2V. The default output voltage level is 1

Rated Vol.

Level 1

Level 2

Level 3

Level 4

Level 5

Level 6

Level 7

Level 8

Level 9

Level 10

12V

12.00V

12.16V

12.32V

12.48V

12.64V

12.80V

12.96V

13.12V

13.28V

13.50V

24V

24.00V

24.22V

24.44V

24.66V

24.88V

25.1V

25.32V

25.54V

25.66V

26.00V

36V

36.00V

36.22V

36.44V

36.66V

36.88V

37.10V

37.32V

37.54V

37.66V

38.00V

48V

48.00V

48.44V

48.44V

48.66V

48.88V

49.10V

49.32V

49.54V

49.66V

50.0V


Simple operation about DALI-2 LED driver address reset and adjusting output voltage slighting by a mobile with NFC APP (set NFC) or NFC handheld device (NFC read & write device: NFC-RW)
