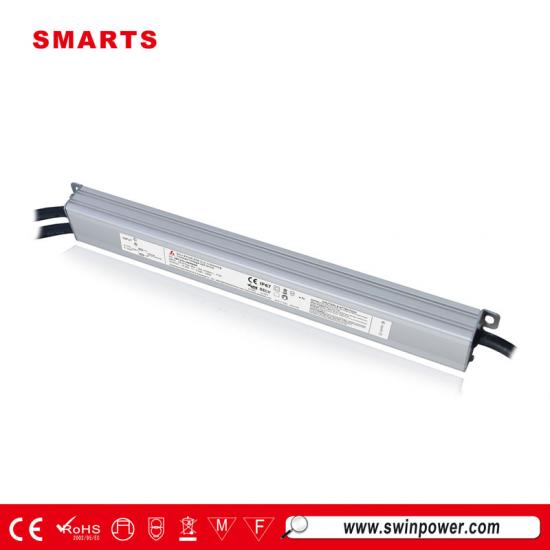

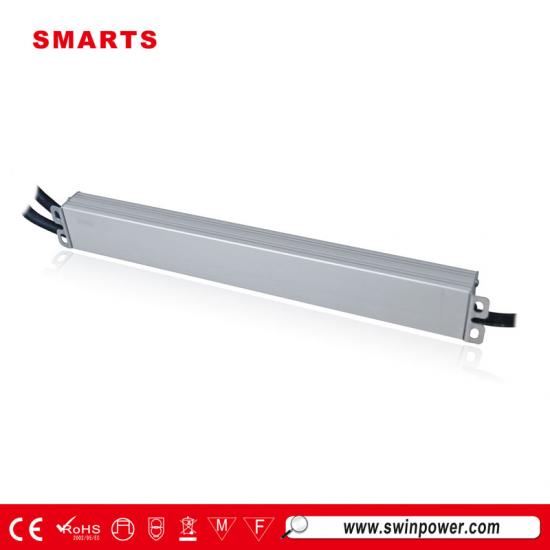

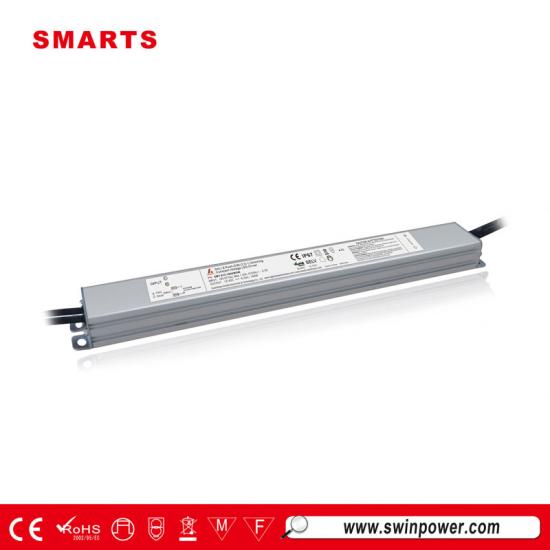

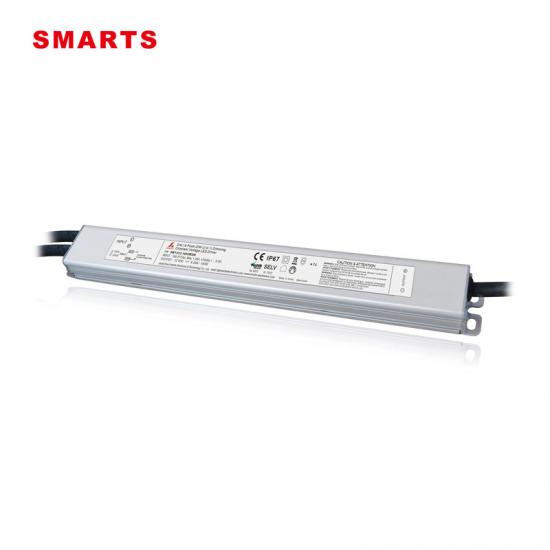

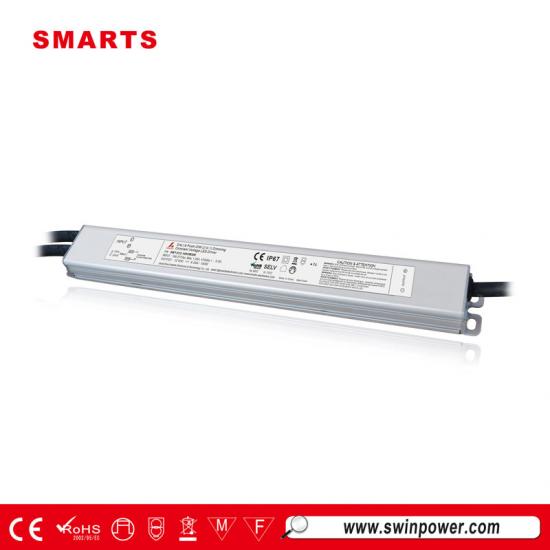

220vAC 12v 100w Ultra slim led driver for led lighting

100w Ultra slim led driver is an IP67 design for indoor or outdoor installation . this model is a better compatibility DALI dimming,With the dimmer of TCL K9051, the effect of smooth dimming can be achieved

  • Brand:

    SMARTS
  • Item No.:

    SMT-012-100VMSW
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12V
  • Output Current:

    8.33A
  • Working Mode:

    constant voltage
  • Dimming mode:

    dali dimmable
  • Size:

    330*32*23mm
  • Certification:

    CE ROHS
Products description

220vAC 12v 100w Ultra slim led driver for led lighting


A sseries of 220vAC dali dimmable driver devide two part:12v dali dimmable led driver & 24v dali dimmable led driver.which are constant voltage working mode.


 Specification


model

SMT-012-100VMSW

SMT-024-096VMSW

Output

DC Voltage

12VDC

24VDC



Voltage Accuracy

±5%

±5%



Rated current

8.33Amp

4Amp



Rated power

100W

96W



Voltage Regulation

±0.5%



Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC



Frequency Range

4763HZ



Power Factor ( Typ.

PF≧0.99/110V ;  PF≧0.98/277V



THD(Typ. ) @ full load

<10%@120VAC  <15%@277VAC



Full Load EfficiencyTyp.

>84%

>85%



AC CurrentTyp.

0.5A



Inrush CurrentTyp.

5A, 50%, 960us @120VAC;   13A, 50% , 1ms @277VAC



Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.



Over Loading

≤120% shut down o/p voltage, re-power on to recover



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13



Withstand voltage

I/P-O/P:1.88KVAC



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.35Kg



Size

260*32*20mm (L*W*H)



packing

290*270*160mm , 50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

  label   100w Ultra slim led driver
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


 Analysis problem


Question:

What are the details of the 7 year warranty: Is it based on 7 years of actual use? We understand that some driver manufacturers have technology to keep track of hours of use. Or does the warranty start at point of sale and end 7 years after? Please explain details.

Answers:

The 7 years warranty start at the point of LED Driver leave our factory. There have manufacture date in back of every LED driver.

We use the best quality components for our 277vac dimmable series and the capacitances we used have the super life-span. We can promise 7 years warranty if loading 80% and within 12 hours working time per days.
