24v driver Triac and Pulse-Width Modulation led driver for 5in1 function
Triac combined with Pulse-Width Modulation led driver, which is 5in1 function.
The 200w dimmable led driver with both comfort and reliability:
Suitable for LED lighting and moving sign applications; Compliance to worldwide safety regulations for lighting
Specification
model
SMT-012-200VTDHV2 (1.0 version)
SMT-012-200VTDHWV2 (2.0 version)
SMT-024-200VTDHV2 (1.0 version)
SMT-024-200VTDHWV2 (2.0 version)
Output
DC Voltage
12V
24V
Rated Current
16.67A
8.33A
Rated Power
200W
200W
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
±1%
Input
Voltage Range
110-277VAC
Frequency Range
47-63Hz
Power Factor @ full load
0.98@120VAC 0.97@277VAC
0.98@120VAC 0.95@277VAC
THD（Typ.）@ full load
<20%
Efficiency @ full load
83% @120Vac 87%@277Vac
79%
86% @120Vac 88%@277Vac
AC Current（Max.）
2.3A@100Vac
Inrush Current （Typ.）
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac
Leakage current
<0.50mA
protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20～90%RH, non-condensing
Storage TEMP. Humidity
-40～+80℃，10～95%RH
TEMP .coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
About 1.8Kg
Size
1.0 version: 260*105*45mm / 2.0 version: 260*125*45mm
packing
10PCS/CTN
（L*W*H）
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
Mechanical Specification

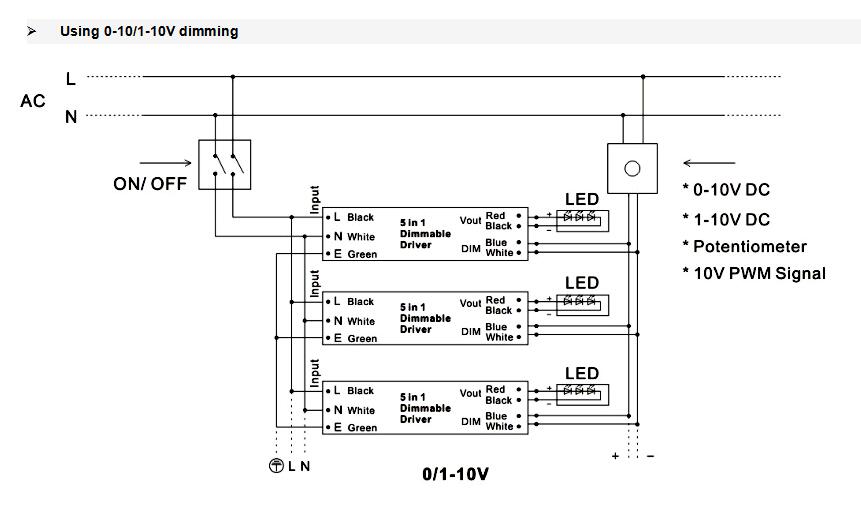

Connection Diagram
Compatible Lighting Type
Smart's triac led driver got cUL/UL/rohs/FCC/ROHS approval, have 7 years warranty. They can matched well with superbright leds company's 24V light strip.
Related Products
|
|
SMT-024-200VTHV2 is combined pulse-width modulation and triac dimming technology for lighting. 24v driver are compatible with wide range of light strips.
Item No.:SMT-024-200VTHV2
Input Voltage:110-277VAC
Output:24Vdc 8.33A 200W
Dimming Mode: triac dimming
Size:278*110*45mm
Certification:CE UL FCC ROHS
|
|
|
|
