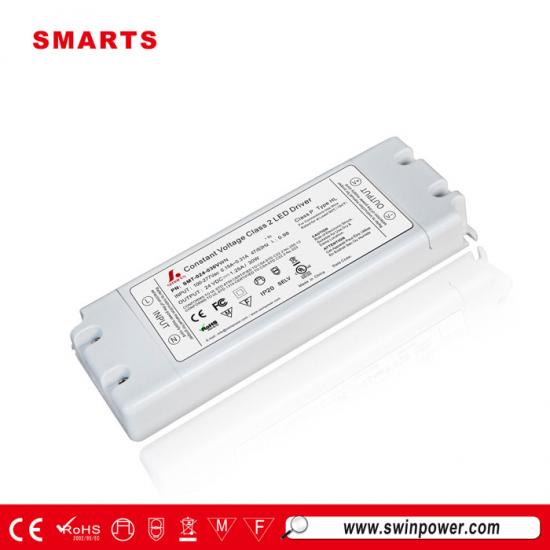

277vac 24v 30w non-dimmable with 7 years warranty

277vac 24v 30w non-dimmable led driver SMT-024-030VWN is UL/cUL listed with 7 years warraty.
  • Brand:

    SMARTS
  • Item No.:

    SMT-024-030VWN
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12/24vdc
  • Output Current:

    1.25amp
  • Working Mode:

    constant voltage
  • Dimming mode:

    non-dimmable
  • Size:

    155*54*20mm
  • Certification:

    CE,cUL/UL, FCC,RoHS/ Class 2,class P, type HL
Products description

 277vac 24v 30w non-dimmable with 7 years warranty

Smarts SMT-024-030VWN is 100-277vac 30w 24v led strip power supply which could meet CE,cUL/UL, FCC,RoHS/ Class 2,class P, type HL approval with 7 years warranty.

  Feture

·Output constant voltage type

·Input voltage range 100-277VAC
·Built-in PFC function / PF>0.98 / E fficiency > 86%
·Protections"short circuit/over voltage/over heat
·IP20 design for indoor installations
·Cooling by free air convection, Full protection plastic case , for dry, damp location.
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lightings.
·7 years warranty

ac to dc led power supply


   Specification



model

SMT-012-030VWN

SMT-024-030VWN

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Voltage Regulation

±0.5%

Rated current

2.50A

1.250A

Load Regulation

±1%

Rated power

30W

30W

Input

Voltage Range

100-277V AC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.98@120VAC  0.98@277VAC

0.98@120VAC  0.98@277VAC



Full Load Efficiency(Typ.)

>83%

>82%

AC Current(Typ.)

0.51A/110VAC

Inrush Current (Typ.)

7.0A, 50%, 425us

Leakage current

<0.50mA

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.95KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547

Alight industry level (surge4KV)

Others

Weight

About 0.23Kg

Size

155*54*20mm (L*W*H)

packing

40PCS/CTN(L*W*H)

Notes

1.  All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and

25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .
