30W 12V UL/FCC/CE/ROHS listed DMX5 1-2channel power supply
Our new 30w 12v led driver is dimming driver suitable for powering RGB color changing led light strips products.
The advantage of DMX512 power supply is wireless.DMX512 12V 30W are suitable for dry and damp location. People can control that dimmable led power supply freely and conveniently.
Specification
Model
SMT-12030-XC-P
SMT-24030-XC-P
X=1 for DIM (DW);
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated current
CH1=2.5A
CH1=1.25A
Rated power
30W (class 2 power units)
Load Regulation
±2%
Input
Voltage Range
100-277VAC
Frequency Range
47 - 63Hz
Power Factor（Typ.）@ full load
PF≥0.95/ 230VAC (Full loading)
THD（Typ.）@ full load
≤10%@120VAC ≤20%@230VAC ≤20%@277VAC
Efficiency（Typ.）@ full load
80% @230VAC
82%@230VAC
AC Current（Max.）
0.4A
0.4A
Inrush Current （Typ.）
7A, 50%, 350us @120VAC; 25A, 50% , 200us @277VAC
Leakage current
<0.5mA
Protection
Short Circuit
Hiccup mode, recover automatically after fault condition is removed
Over Load
≤120% ,hiccup model, recover automatically after fault condition is removed
Over temperature
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
Protection Class
II
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20 - 90%RH ,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
Withstand voltage
I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.5KVAC (US)
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
EMC Immunity
EN61000-4-2,3,4,5,6,11 EN61547
Others
Net Weight
0.3KG
Dimension
171.5*54*20mm (L*W*H)
packing
250*190*135mm, 20pcs/ctn
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and
25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |

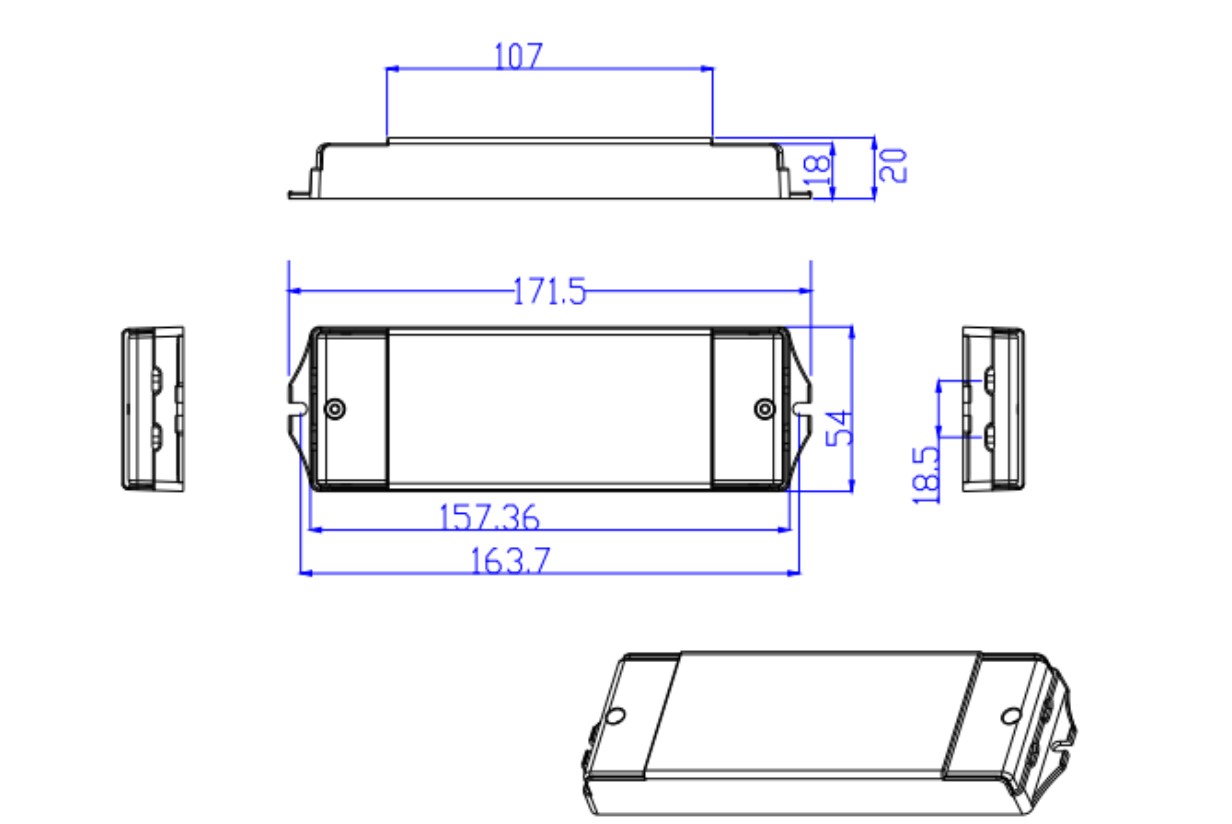

Mechanical Specification
Connection Diagram
Compatible Lighting Type
Smarts's ac dc led power supply is one with the UL,FCC,pengding CE, ROHS, SAA listed DMX512 led driver.They can work well with Green LED Lighting's light strips.
Related Products
|
SMT-012-030VDSW uses PWM technology for dimming light. Ac dc led power supply are suitable for dry damp location.
Item No.:SMT-012-030VDSW
Input Voltage:100-277VAC
Output Voltage:12/24vdc
Output Current:2.5A
Dimming Mode: 0-10v Certification:Class2,Class P,UL |
|
|
|
|
