48v 150w slim shape triac dimmable led driver
This driver led 150w can work with forward phase, reverse phase, triac, MLV and ELV dimmers with high PF and efficiency. And the advantages of this application is strong compatibility and flicker-free dimming. At the same time, the slam shape is very secretive, which can be perfectly installed in the Linmore brand wrap or strip lights.
Specification
|
model |
SMT-012-150VTSW |
SMT-024-150VTSW |
SMT-048-150VTSW |
||
|
Output |
DC Voltage |
12VDC |
24VDC |
48VDC |
|
|
Voltage Accuracy |
±5% |
||||
|
Rated current |
12.5A |
6.25A |
3.125A |
||
|
Rated power |
150W |
||||
|
Voltage Regulation |
±0.5% |
||||
|
Load Regulation |
±1% |
||||
|
Input |
Voltage Range |
100-277 VAC |
|||
|
Frequency Range |
47~63HZ |
||||
|
Power Factor ( Typ.) |
PF≧0.95/110V ; PF≧0.97/277V |
||||
|
Full Load Efficiency(Typ.) |
>89% |
>90% |
>91% |
||
|
AC Current(Typ.) |
1.90A/100VAC/0.82A/277VAC |
||||
|
Inrush Current(Typ.) |
59.2A/212us@50%Ipeak |
||||
|
Leakage current |
<0.50mA/110VAC; <0.13mA/277VAC |
||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|||
|
Over Loading |
≤120% Hiccup mode, recovers automatically after fault condition is removed. |
||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||||
|
Environment |
Working TEMP. |
-40~+60℃ |
|||
|
Working Humidity |
20~90%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
UL8750 |
|||
|
Withstand voltage |
I/P-O/P: 3.75KVAC |
||||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
FCC Part 15 B |
||||
|
Others |
Weight |
0.75Kg |
|||
|
Size |
368*32*23mm (L*W*H) |
||||
|
packing |
50PCS/CTN |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||||
 |
 |
 |
 |
Mechanical Specification

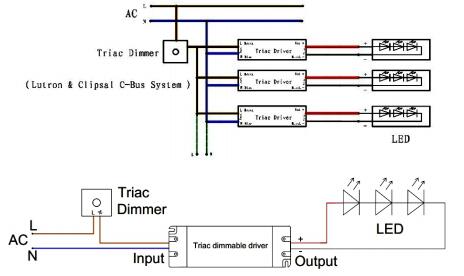

Connecting Diagram
Compatible Light Type
This driver dimmable have been tested for compatibility dozens of brands light. Such as Green LED Lighting, which has the most reliable dot-free linear light on the market. SMT-048-150VTSW with this brand led Neon light can save power to the greatest extent and doesn't make any noise. Furthermore, the certifications of our product has more advantages than Green LED Lighting brand, which can better meet market's requirements.
Related Products
|
150 watt led driver are CE, UL, FCC and ROHS approval.it is widely used in various industries, for example, suitable for LED Lighting and moving sign applications……
Mode：SMT-024-150VTSW intput voltage：110~277V AC Efficiency > 87% Size：330*32*23mm （L*W*H） Weight：0.65Kg/pcs |
