ETL US 12V 2.5A 30W ac dc adapter Switch Power supply 12V 2500mA wall
Model SMT-012-030VP is a 12V 2.5A Power supply, SMT-024-030VP is also a 24V 30W power adapter. work with GREEN EARTH LED display 12v.
Specification
model
SMT-012-030VP
SMT-024-030VP
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
2.5A
1.25A
Load Regulation
±1%
Rated power
30W
30W
Input
Voltage Range
100-240V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
80%@120V, 80%@230V ,89%@277V
80%@120V,80%@230V
Full Load Efficiency（Typ.）
0.7
0.7
AC Current（Typ.）
500MA MAX.
Inrush Current （Typ.）
7A, 50%, 420us @120VAC;
Ripple
<200mV
Over temperature
90℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode, recovers automatically after fault condition
Over voltage
≦265VAC
Environment
Working TEMP.
0～+40℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-20～+60℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL60950-1,EN60950-1,GB4943-2001
Withstand voltage
I/P-O/P:2KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Hi-Pot
AC3000Vrms/50Hz,5mA max
Others
Weight
About 0.12Kg
Size
59.80*38.80*45mm (L*W*H)
packing
100PCS/CTN （L*W*H）
is removed.
 |
 |
 |
 |
Dimension
Compatible LED light type
30W power supply are wall adapter avaliable in wattage 12w, 18w, 24w, ETL listed, 2 years warranty for non dimming led strip, RGB strips, work with AspectLED single color led strip light N series.
Related Products
|

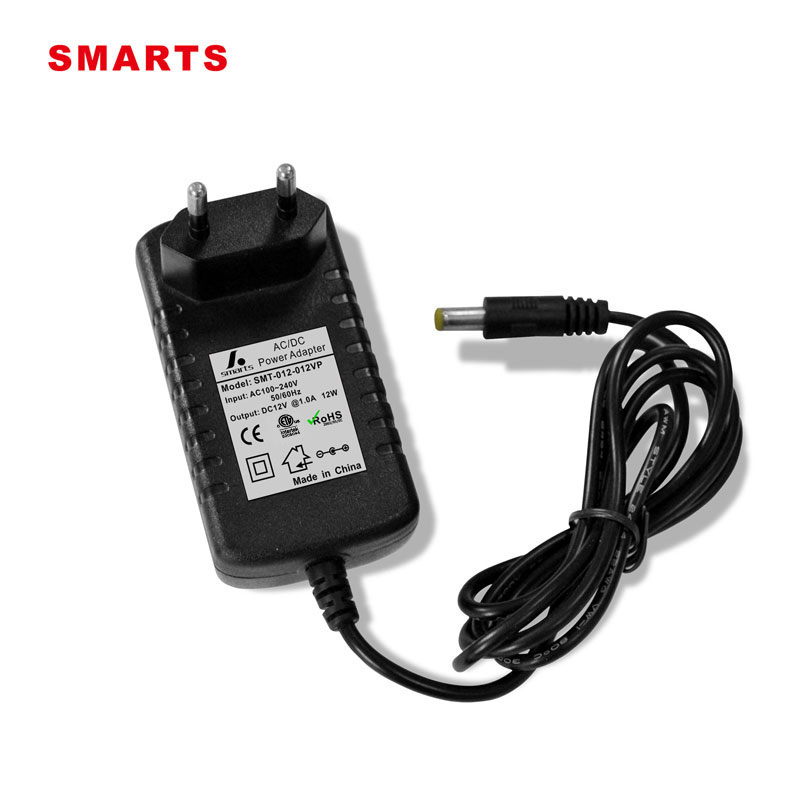

12w adapter 12v is wall type 12v power supply, 2 years warranty, plastic case.
Model：SMT-012-012VP input voltage：100~240V AC Efficiency > 80% PFC:93% Certification: ETL,CE, ROHS Weight：0.12Kg/pcs |
|
|
|

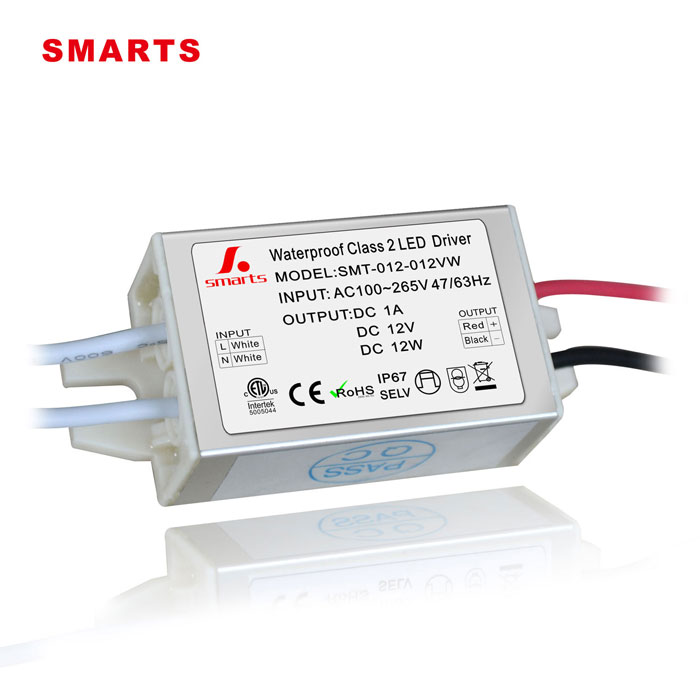

12W ac dc power supply, ETL listed,super slim size design, 2 years warranty.
