How to Connect Triac Dimmable LED Driver
2020-04-08

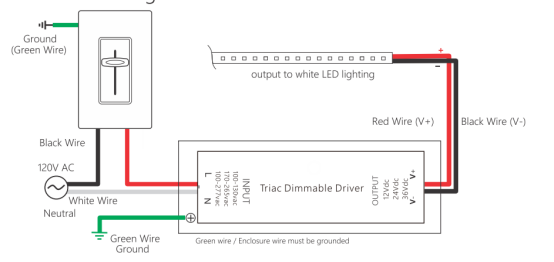

Triac dimmable driver are popular selling in the market, but how to connect triac dimmable led driver? Before that, you should make sure you have matched “dimmable” LED lights. And then find out if you have an LED compatible dimmer and led driver triac. If all those things are prepared, the most usually connection way for triac dimmable constant voltage LED driver is as below. (see picture attached)


triac dimmable constant voltage LED drive


Installation for dimmable driver is almost same as non dimmable power supply.

-  Neutral and ground wires will be directly connected to the power source on the input side.

-  The live wire will be connected to the input of the dimmer switch and the output of the dimmer switch will then be connected to the live wire of the dimmable driver.

-  Positive and negative wires will be connected to the low voltage lighting applications on output side.
More information if you would like to know Smarts Electronics’ Triac dimmable led drivers, you can login https://www.smarts-electronics.com/ Or contact with Mr. Steven(skype: steven821228 mail:steven@smartselectronic.com.cn)

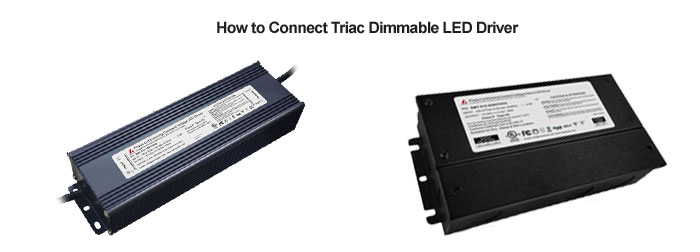

triac dimmable constant voltage LED driver
