non dimmable led driver 300w 12v 24v CE ul listed power supply

100-277V input voltage, short circuit / over loading / over temperature protection 12v 24v led light driver, compliance to worldwide safety regulations for First Led lighting strip lights ECO 5050.


  • Brand:

    SMARTS
  • Item No.:

    SMT-012-300VWJWV2
  • Input Voltage:

    100-277v
  • Output Voltage:

    12/24vdc
  • Output Current:

    25A
  • Working Mode:

    constant voltage
  • Dimming mode:

    non dimming
  • Size:

    278*130*44mm (L*W*H)
  • Certification:

    UL(E507826),CE,FCC,ROHS approval
Products description

non dimmable led driver 300w 12v 24v CE ul listed power supply


With UL, FCC, CE ROHS certification, 7 years warranty, this newly enhanced non dimmable led driver features superior working performance to TRULUX tape light STLHD-UWW-16.


  Specification


Model

SMT-012-300VWJ  (1.0 version)

SMT-012-300VWJV2 (2.0 version)

SMT-012-300VWJWV2 (3.0 version)





SMT-024-300VWJ  (1.0 version)

SMT-024-300VWJV2 (2.0 version)

SMT-024-300VWJWV2 (3.0 version)

Output

DC Voltage

12V

24V



Voltage Tolerance

±0.5V



Voltage Regulation

±0.5%



Voltage Tolerance

±0.5V



Load Regulation

±2%

±1%

±1%





Rated current

25.0A

12.5A



Rated power

300W

Input

Voltage Range

110-277VAC



Frequency Range

47-63Hz



Power Factor(Typ.)@full load

0.99@120V ;0.98@230V ;0.98@277V

0.99@120V ; 0.98@230V ;0.98@277V



THD(Typ.)@ full load

<10% @120V    <20%@230V      <20% @277V



Efficiency (Typ.)@ full load

85%@120V, 89%@230V ,89%@277V

88%@120V,92%@230V,92%@277V



AC Current (Max.)

3.4A (100VAC)



Inrush Current  (Typ.)

20A,50% ,1.9ms@120V ;60A,50% 130us@230V ; 35A,50% 1.9ms@277V



Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed



Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed



Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz 2G 10min./1 cycleperiod for 60min.each along X,

Y,Z axes



Safety&EMC

Safety standards

UL8750



Withstand voltage

I/P-O/P:1.88KVAC



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B

Others

Weight

1.8Kg



Size

1.0 version:278*108*46mm / 2.0 version:278*110*44mm/

3.0 version:278*130*44mm



packaging

10PCS/CTN

385*335*200mm     20PCS/CTN

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

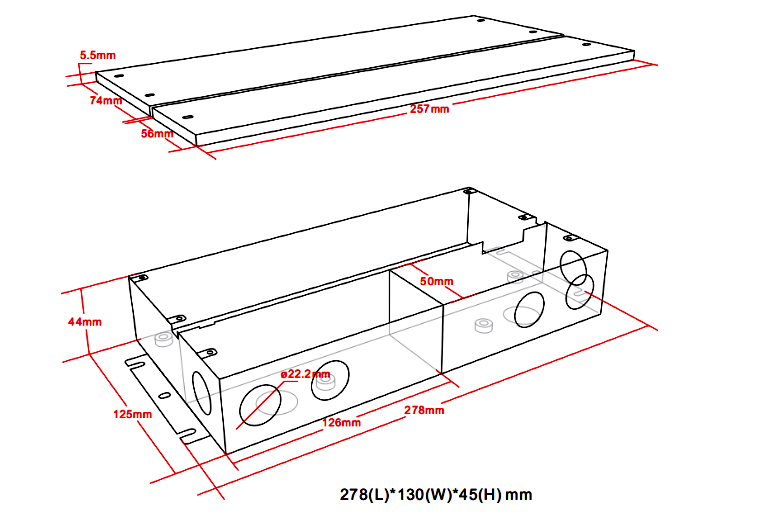

   Mechanical Specification


ul listed 12v power supply


Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,

Output:14AWG Red to LED Positive side (+) , Black  to LED Negative side (-).


  Compatible Tape Light Type


ul listed 12v power supply 300w could be used for Trulux tape lighting STL65-UWX and any certified chandeliers LED lighting.
