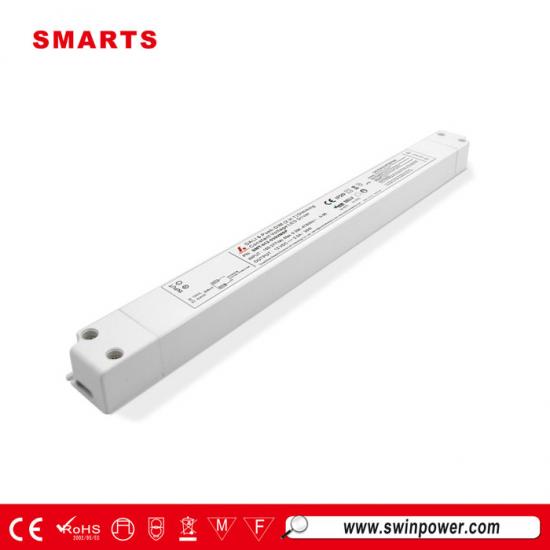

Plastic power supply 12v 30w slim size Dali dimmable led driver
dali constant voltage LED driver 12v is slim size led driver.The long size can be perfectly installed in RAB X34 FLOOD,we give 7 years warranty for all the above DALI & PUSH dimmable slim type LED drivers
Specification
|
model |
SMT-012-030VMSP |
SMT-024-030VMSP |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Voltage Regulation |
±0.5% |
|
|
|
Load Regulation |
±1% ±1% |
|
|
Input |
Voltage Range |
100-277 VAC |
|
|
|
Frequency Range |
47～63HZ |
|
|
|
Power Factor ( Typ.） |
PF≧0.99/110V ; PF≧0.98/277V |
|
|
|
THD(Typ. ) @ full load |
<10%@120VAC <15%@277VAC |
|
|
|
Full Load Efficiency（Typ.） |
>84% |
>85% |
|
|
AC Current（Typ.） |
0.5A |
|
|
|
Inrush Current（Typ.） |
5A, 50%, 960us @120VAC; 13A, 50% , 1ms @277VAC |
|
|
|
Leakage current |
<0.5mA |
|
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
|
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
|
Working Humidity |
20～90%RH,non-condensing |
|
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|
|
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|
|
Safety&EMC |
Safety standards |
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13 |
|
|
|
Withstand voltage |
I/P-O/P:1.88KVAC |
|
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
|
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
|
|
Others |
Weight |
0.2Kg |
|
|
|
Size |
260*30*18mm (L*W*H) |
|
|
|
packing |
290*270*160mm , 50PCS/CTN
|
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
| Laebl |
 |
||
 |
 |
 |
 |
Analysis problem
Question:
What is a lamp driver??
Answer:
Lamp Driver is a small integrated circuit designed to supply the current required by a lamp. It manages the incoming voltage and current to the voltage and current level requirements of the lamp.
Application
- 1.Indoor LED illuminating lights
- 2.LED Neon, LED urban Decoration
- 3.LED Lighting Advertising,LED Display
- 4.Safety Protection Apparatus
- 5.Telecommunications, Networks
- 6.Vehicle Lights, Controller Panels
