pwm controlled 24v constant voltage 96W 0-10v triac led driver power supply
277vac constant voltage type Triac/0-10V/1-10V/10V PWM/Potentiometer dimmable 96W led driver, the plastic housing waterproof rating is ip20, suitable for indoor dry places, UL certification is mainly sold to North America
Specifications
| Model Number | SMT-CV24096VTD-S | SMT-CV48096VTD-S |
| OUTPUT | ||
| Rated Power | 96W | |
| Rated Voltage | 24V | 48V |
| Rated Current | 4.0A | 2.0A |
| Voltage Tolerance | ±0.5V | |
| Voltage Regulation | ±0.5% | |
| Load Regulation | ±1% | |
| INPUT | ||
| Voltage Range | 100-277V | |
| Frequency Range | 47-63Hz | |
| Power Factor(typ.) | 0.98@120VAC 0.95@277VAC Full load | |
| Total Harmonic Distortion | THD< 20%@120VC/277VAC; | |
| Efficiency(Typ.) | 85%@120VAC 86%@277VAC | 86% @ 120VAC 87% @277VAC |
| AC Current(Typ.) | 1.3A | |
| Inrush Current(Typ.) | 27A, 50%, 700us @120VAC; 15A, 50% , 550us @277VAC | |
| Leakage Current | <0.5mA/ 120VAC | |
| PROTECTION | ||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |
| Over Load | ≤120% shut down o/p voltage, re-power on to recover after fault condition removed | |
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | |
| ENVIRONMENT | ||
| Working Temp. | Tcase=-40 ~ +60 ℃ | |
| Max. Case Temp. | Tcase=+90℃ | |
| Working humidity | 20 ~ 95% RH non-condensing | |
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | |
| Temp .coefficient | ±0.03%/℃(0~50℃) | |
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | |
| SAFETY & EMC | ||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | |
| Withstand voltage | I/P-O/P:1.88KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| EMC Emission | Compliance to FCC part 15 Subpart B | |
| OTHERS | ||
| Dimension | 212x56x24mm (L*W*H) N.W:0.39kg | |
| Packing | 20pcs/CTN G.W:8.4KG SIZE: 270*220*140mm | |
 |
 |
 |
 |

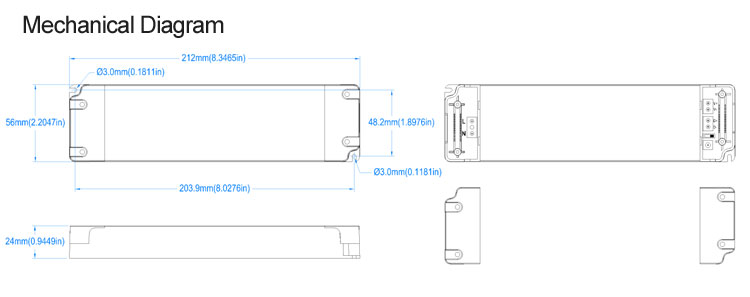

Mechanical Specification
Dimming Operation
Compatible Lighting Type
UL cUL listed 5 in 1 dimming led driver can be compatible with DC-DC designed LED lamps, such as MR16, PAR, LED strip/type, input voltage 100-277vac, constant voltage type, can fine-tune the output voltage
Related Products
|
|

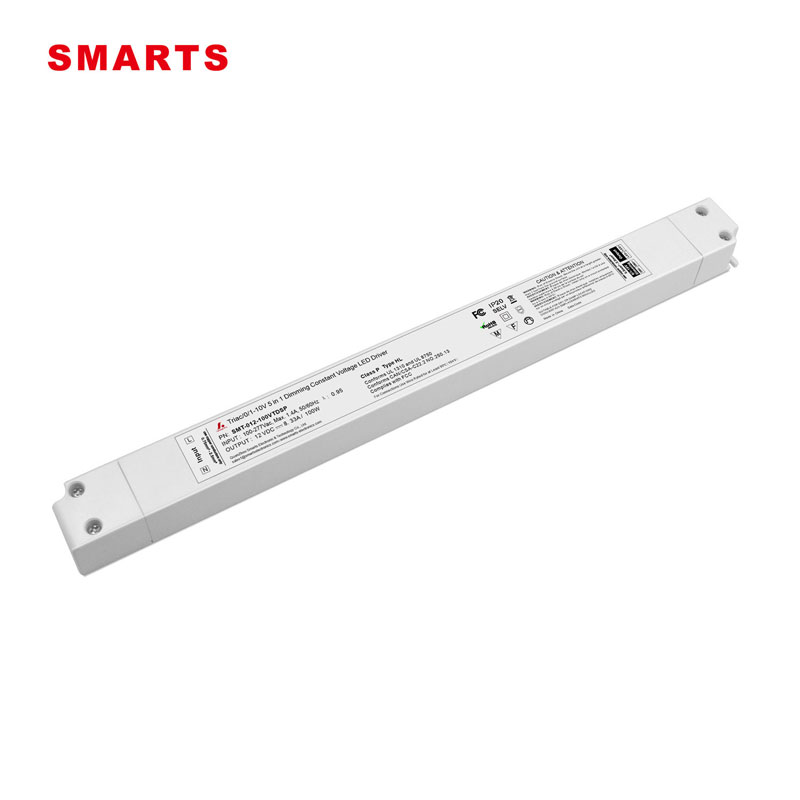

constant voltage 100w triac & 0-10v dimmable led driver input voltage 100-277vac plastic enclosure ip20
Mode：SMT-012-100VTDSP intput voltage：100~277V AC Certification: UL cUL Size：330*30*22mm（L*W*H） Weight：0.55kg/pcs |
