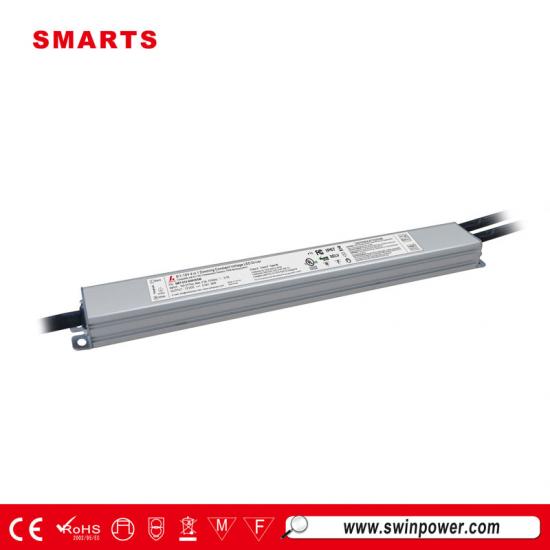

Slim size 12v 2.5a 30w 100-277vac Dimmable led power supply for led strip
0-10V dimming led driver power supply are available in fixed output current, programmable, adjustable and Controls-Ready models to help streamline your selection process. with signify C6WDL Calculite 6" wall cylinder downlight can save power to the greatest extent.
Feature
·Output constant voltage
·Input voltage range 100-277VAC
·UL, cUL listed, Class 2, Class P approval
·Built-in PFC function / Efficiency > 84% / PF> 0.99
·Dimming range: 0~100%
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry,wet or damp environment installations
·Cooling by free air convection
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification
model
SMT-012-030VDSW
SMT-024-030VDSW
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
2.5Amp
1.25Amp
Rated power
30W
30W
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.99/110V ; PF≧0.98/277V
THD(Typ. ) @ full load
<10%@120VAC <15%@277VAC
Full Load Efficiency（Typ.）
>84%
>85%
AC Current（Typ.）
0.5A
Inrush Current（Typ.）
5A, 50%, 960us @120VAC; 13A, 50% , 1ms @277VAC
Leakage current
<0.5mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC 47 CFR Part 15 ,Subpart B
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,,11, Alight industry level
Others
Weight
0.35Kg
Size
260*32*20mm (L*W*H)
packing
290*270*160mm , 50PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,Rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Label
Mechanical Specification
Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output: Red is（DIM+）,Black is（DIM-）
Derating Curve
Connecting Diagram
