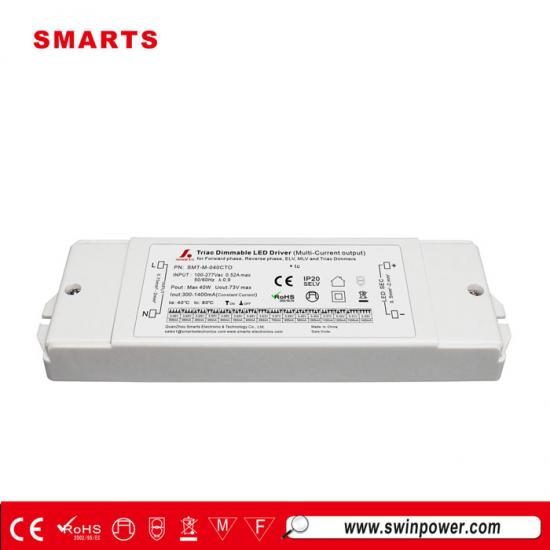

triac dimmable led driver 40w 300ma 350ma 400ma 1000ma
The dimmable led driver 40w are light weight and low-profile, available in ability to select different output voltage. Making them ideal for illuminating offices, retail or hospitality areas.
The slim design of these luminaires is beneficial for installation in tight ceiling spaces.
Specification
Model |
SMT-M--040CTO |
|||||||||||||||||
Output |
Rated current (A) |
0.3 |
0.35 |
0.4 |
0.45 |
0.5 |
0.55 |
0.6 |
0.65 |
0.7 |
0.8 |
0.9 |
1.0 |
1.1 |
1.2 |
1.3 |
1.4 |
|
DIP Code |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
DIP Code |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Current Tolerance |
±5% |
|||||||||||||||||
DC Voltage (V) |
3-65V |
3-62 |
3-57 |
3-50 |
3-45 |
3-40 |
3-37 |
3-34 |
3-31 |
3-29 |
||||||||
Rated power (W) |
19.5 |
22.8 |
26 |
29.3 |
32.5 |
35.8 |
39 |
40 |
||||||||||
Input |
Rated Input Voltage |
200-240VAC |
||||||||||||||||
Rated Frequency |
47-63HZ |
|||||||||||||||||
Power Factor |
Full loading ≥0.93@230VAC; |
|||||||||||||||||
Efficiency (Typ.) |
Full loading ≥80%@230VAC; |
|||||||||||||||||
AC Current (Max.) |
0.29A |
|||||||||||||||||
Inrush Current (Typ.) |
15.6A, 10.3us @ 50% Ipeak at 230VAC |
|||||||||||||||||
Leakage current |
<0.50mA |
|||||||||||||||||
Protec- tion |
Short Circuit |
Constant current mode, recovers automatically after fault condition is removed |
||||||||||||||||
Over Load |
Hiccup mode, recovers automatically after fault condition is removed |
|||||||||||||||||
Output No-Load Voltage |
75V max. |
|||||||||||||||||
Over temperature |
Ambient temp. over 50±5℃, output current will be reduced to 50%; Ambient temp. over 60±5℃, output will be off; recovers automatically after temp. drops. |
|||||||||||||||||
Protection Class: |
II |
|||||||||||||||||
Environ- ment |
Working TEMP. |
-40-+60℃ |
||||||||||||||||
Working Humidity |
20-90%RH, non-condensing |
|||||||||||||||||
Storage TEMP. Humidity |
-40-+80℃,10-95%RH |
|||||||||||||||||
TEMP. coefficient |
±0.03%/℃ (0-50℃) |
|||||||||||||||||
Vibration |
10-500Hz, 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
|||||||||||||||||
Safety
|
Safety standards |
EN61347-1 EN61347-2-13 |
||||||||||||||||
Withstand voltage |
I/P-O/P:3.75KVAC |
|||||||||||||||||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||||||||||||||||
Others |
Weight |
0.225Kg |
||||||||||||||||
Size |
171.5*54*20mm(L*W*H) |
|||||||||||||||||
packing |
250*190*135mm (20PCS/CTN ) for outer carton 5KG/CTN |
|||||||||||||||||
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation. |
Mechanical Specification
Ø Input with DG126 terminals 3P: Live Wire AC (L), Neutral Wire AC(N)
Ø Output LED SEC with DG126 terminals 2P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
Ø Suggested wire diameter: Input 0.75-2mm2; Output:0.5-2mm2.
Connection diagram ani
Compatible with LED panel Type
The constant current type led driver are quite useful for the panel lights, You can choose between the colour temperatures 2700K, 4000K and 6000K.
Related Products
|
The 24vdc 150w led driver is 0-10v dimmable led driver for dry, damp and wet location. The widely input voltage 100-277vac is worked well all over the world.
Mode:SMT-024-150VDHV2 intput voltage:100-277V AC Efficiency > 98% Size:260*105*45mm (L*W*H) Weight:1.3 Kg/pcs |
|
