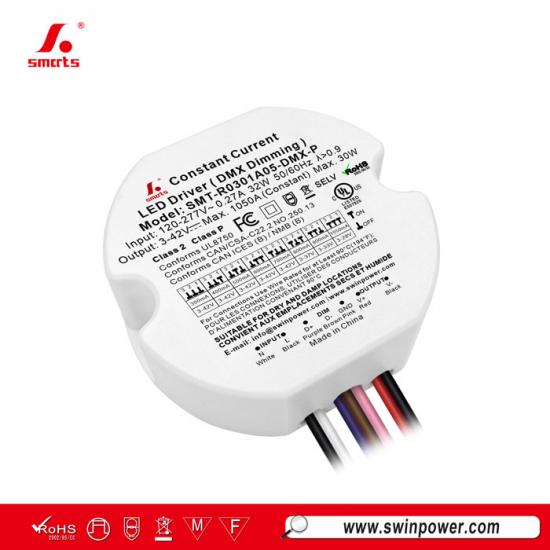

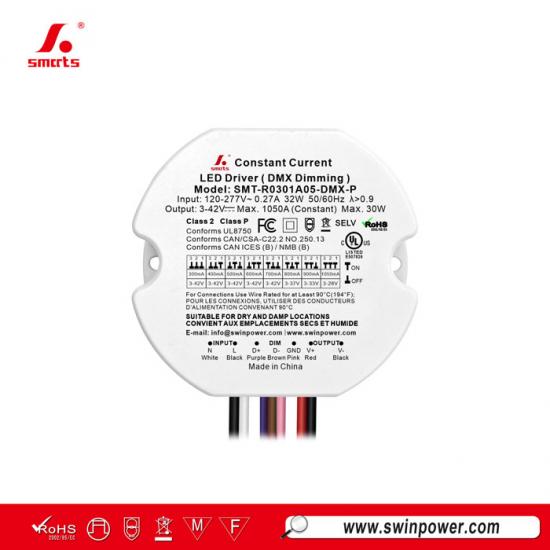

30W DMX512 Dimmable Constant Current Round LED Driver for DMX Rigs
Downlights, track fixtures, and linear modules that follow a DMX512 cue — the 30W constant-current driver handles them. Set 300–1050mA by DIP switch, assign the address remotely with RDM, and dim flicker-free from 1% to 100%.

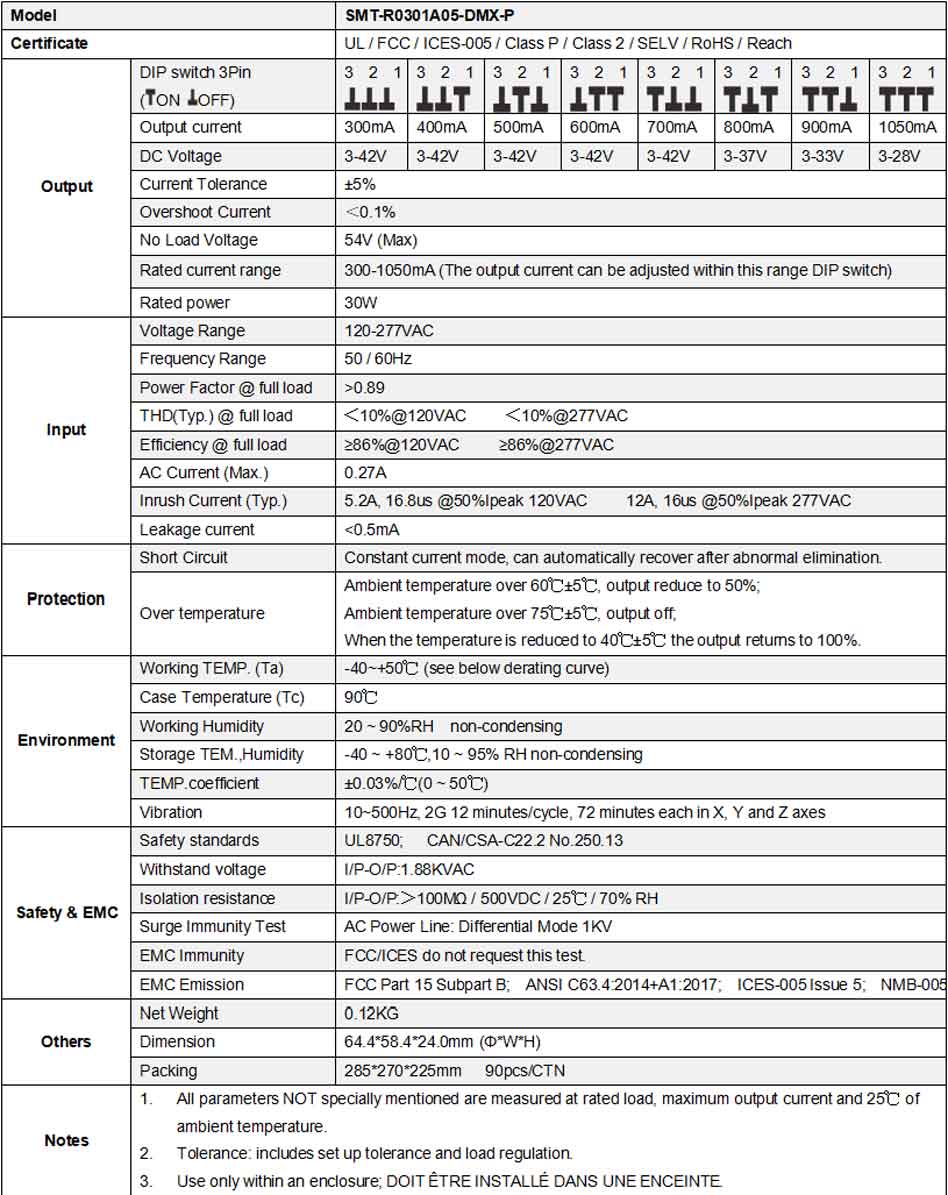

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming electronic wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
Dimming Operation
Related Products
|

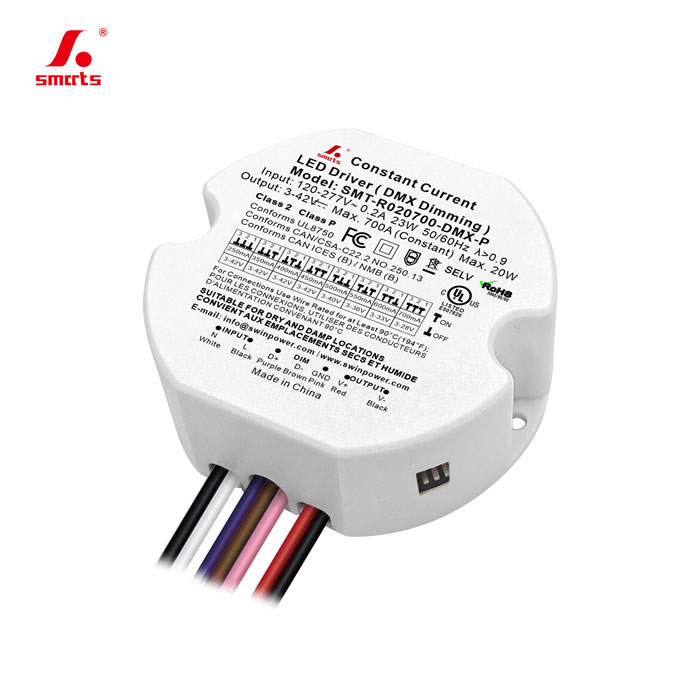

20W round plastic LED driver 120–277VAC input with PF correction and up to 80% efficiency stays efficient under load. Short-circuit and over-temperature protection plus fanless convection cooling keep it dependable. Dry/damp rated; 7-year warranty.
