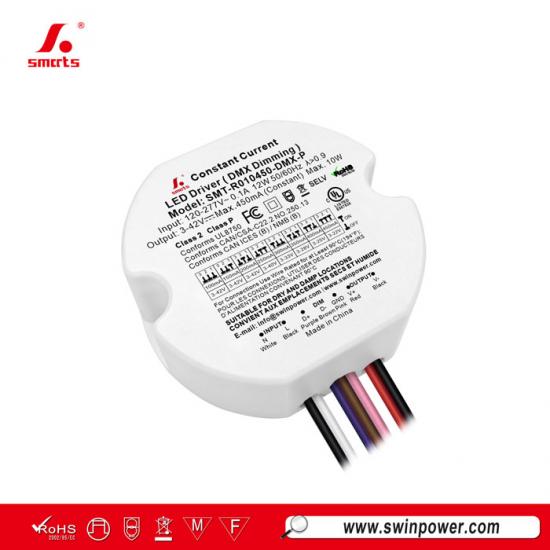

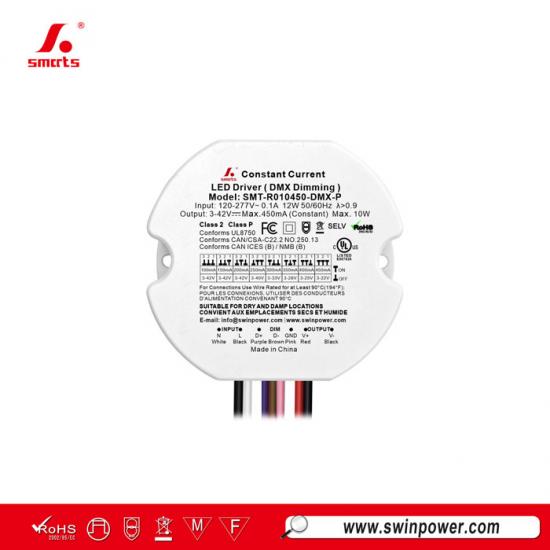

Addressable Control 10W DMX512 Dimmable Constant Current Round LED Driver Power Supply
DMX512 dimmable led power supply Set 100–450mA by DIP switch to match the module, assign the address remotely via RDM, and dim smoothly from 1% to 100% without flicker. The small round plastic housing tucks into tight spots and suits dry and damp locations. Silent fanless cooling, 7-year warranty.

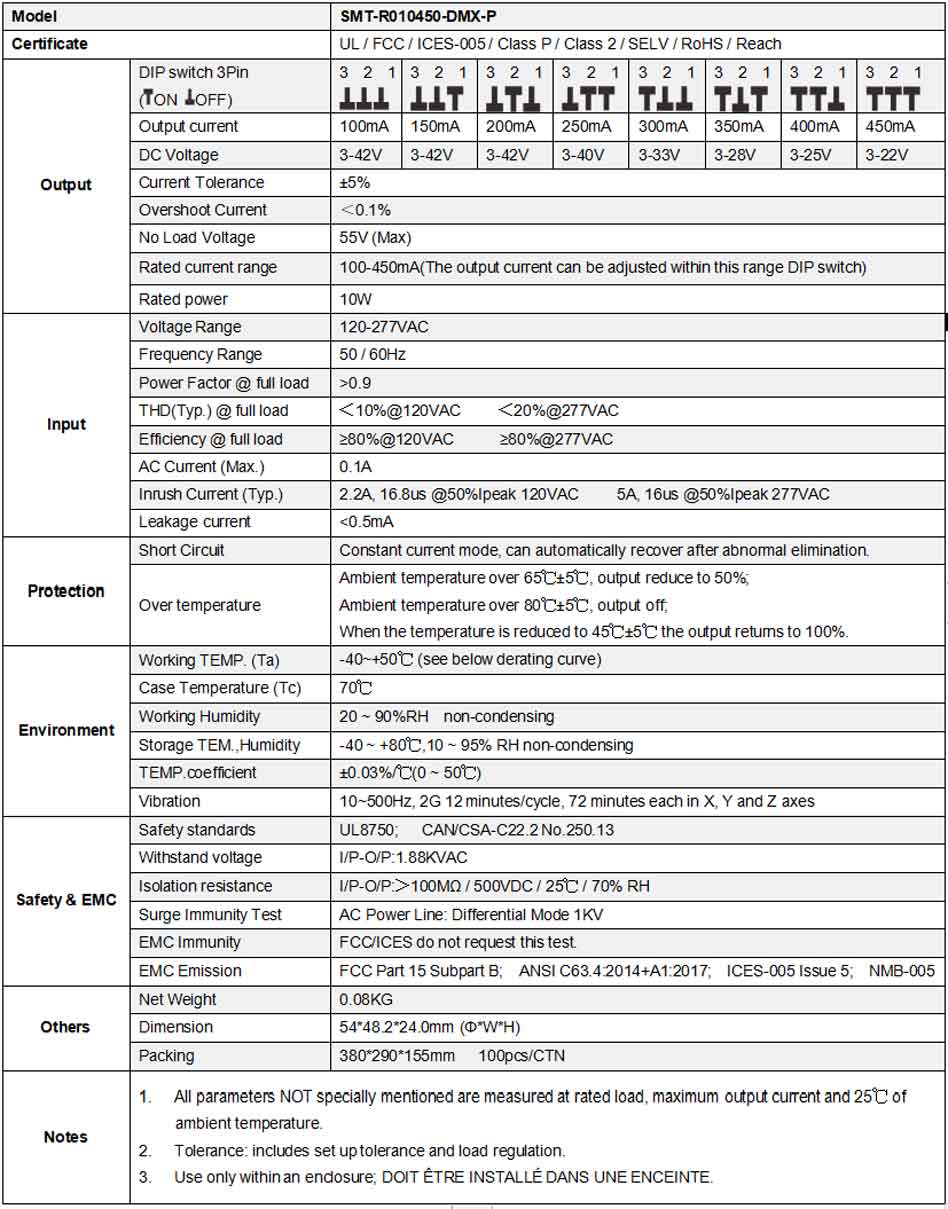

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming electronic wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
Dimming Operation
Related Products
|

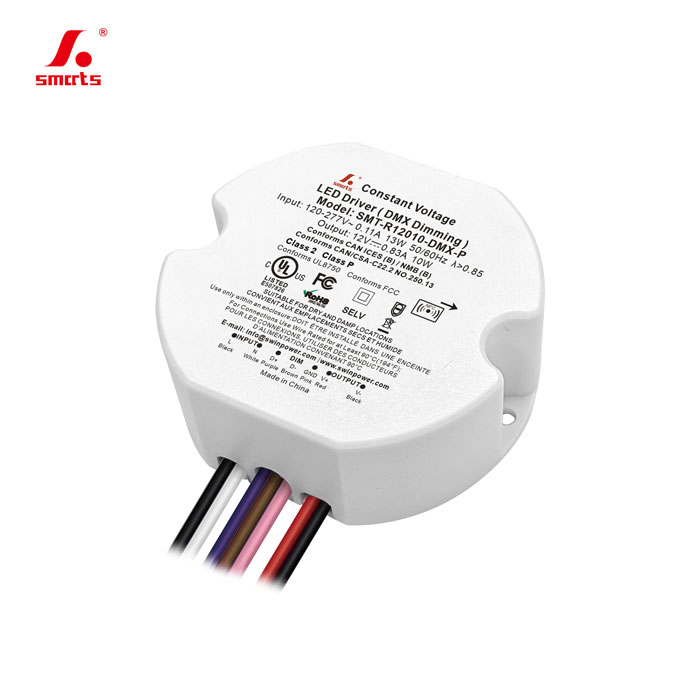

The 10W round plastic LED driver pairs constant-voltage output with DMX512 digital dimming — smooth, flicker-free control from 1% to 100% at 1% depth, ideal for small LED strips and accent fixtures on a lighting network. Its DIP switch sets the output to match your system, RDM lets you assign the address remotely, and the 120–277VAC input with PF correction and up to 80% efficiency runs cool. Short-circuit and over-temperature protection plus fanless convection add safety and silence. Dry/damp rated, 7-year warranty.
Model: SMT-R12010-DMX-P Input Voltage: 100-277Vac
Dimming Mode: DMX512 dimmable
|
