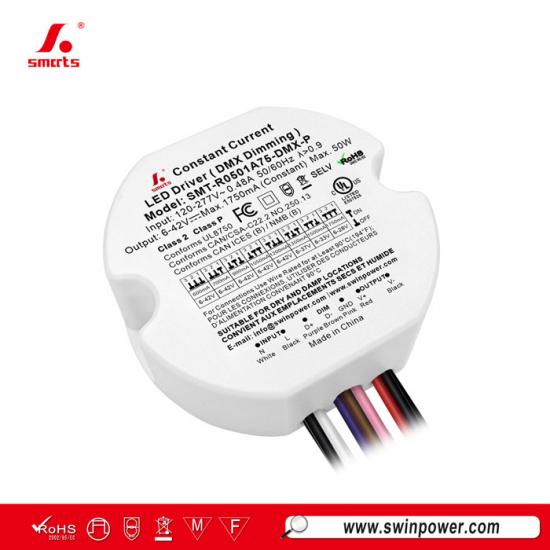

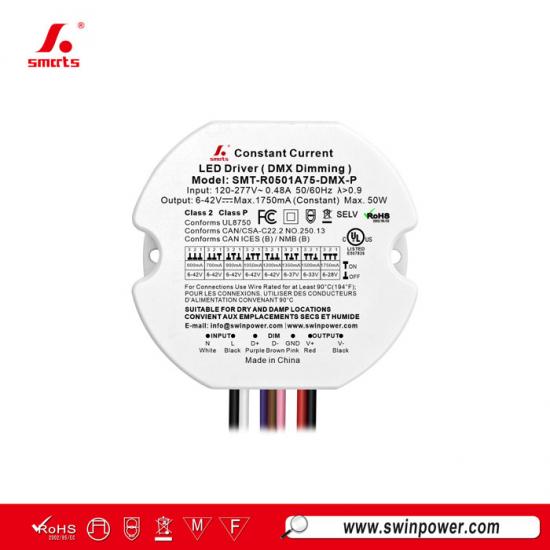

50W DMX512 Dimmable Constant Current Round LED Driver for indoor
the 50W constant-current driver delivers. One DIP switch spans 600–1750mA over 3–42V, RDM handles addressing remotely, and dimming runs flicker-free from 1% to 100% with 1% depth for precise cues. The compact round plastic housing installs in dry and damp locations, and convection cooling means zero noise. 7-year warranty.

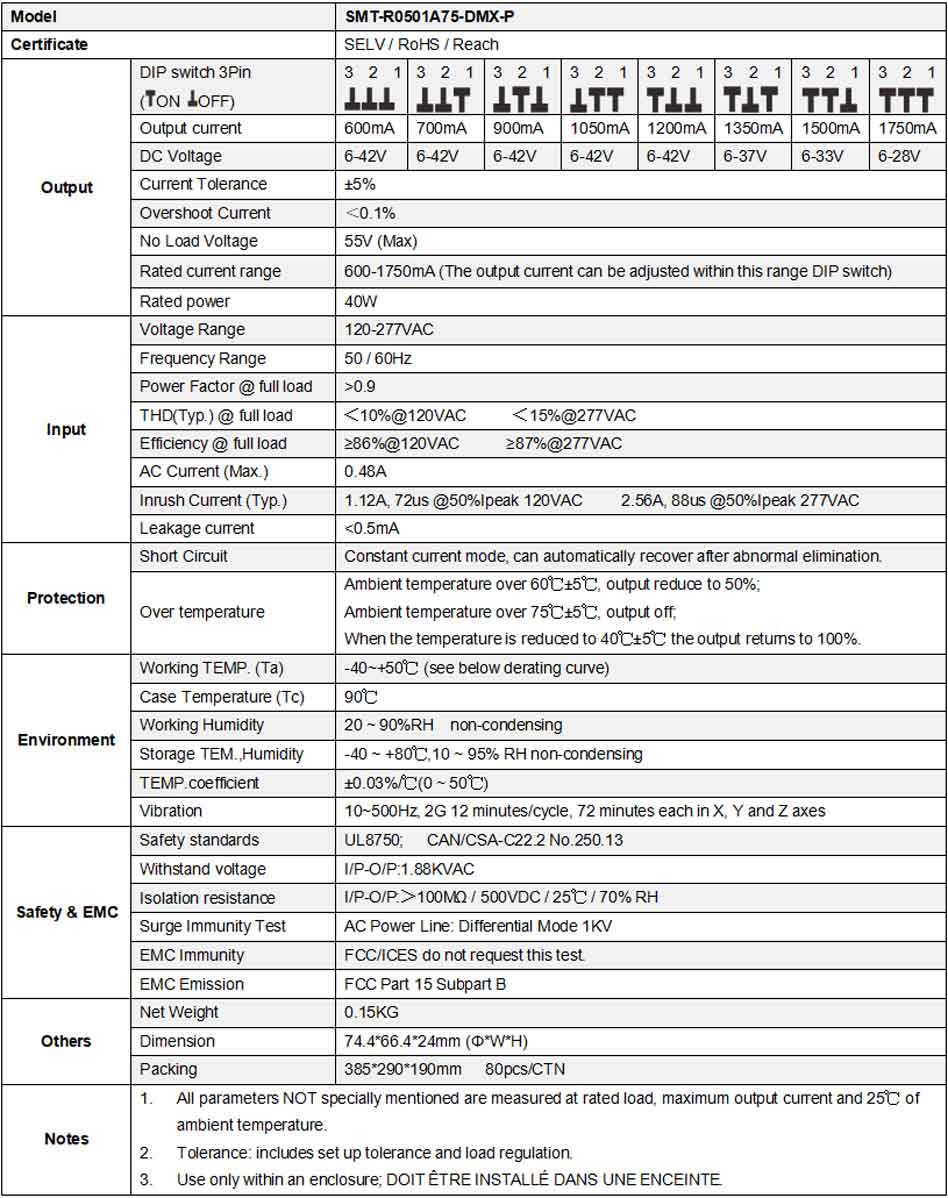

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming electronic wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
Dimming Operation
Related Products
|

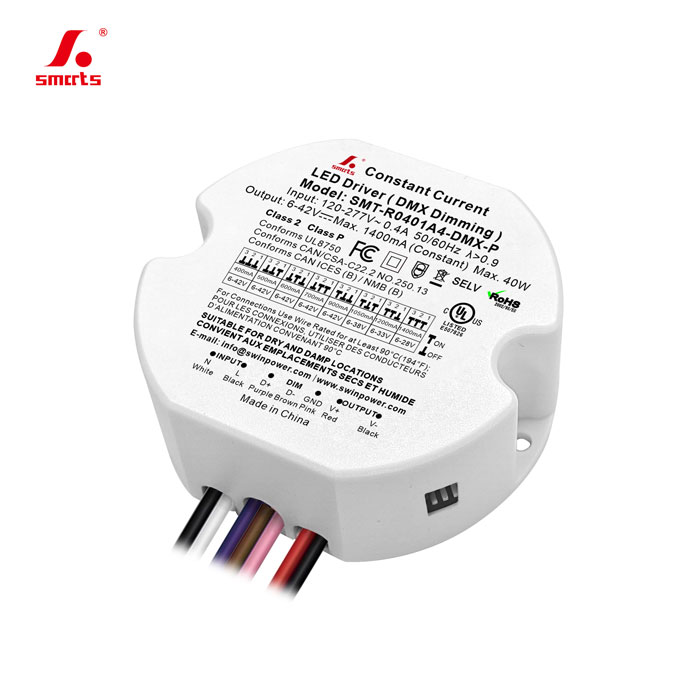

40W DMX512 Dimmable Constant Current Round LED Driver 120–277VAC input with PF correction and up to 80% efficiency manages power smartly. Short-circuit and over-temperature protection plus fanless cooling ensure reliability. Dry/damp rated, 7-year warranty.
