600ma-1750ma 50W DALI-2 Dimmable Constant Current Round LED Driver for led lighting
the 50W constant-current driver delivers. One DIP switch spans 600–1750mA over 3–42V, and DALI-2 dimming runs flicker-free from 1% to 100% with 1% depth for precise scenes. The compact round plastic housing installs in dry and damp locations, and convection cooling means zero noise. Spec it once, trust it for years — 7-year warranty.

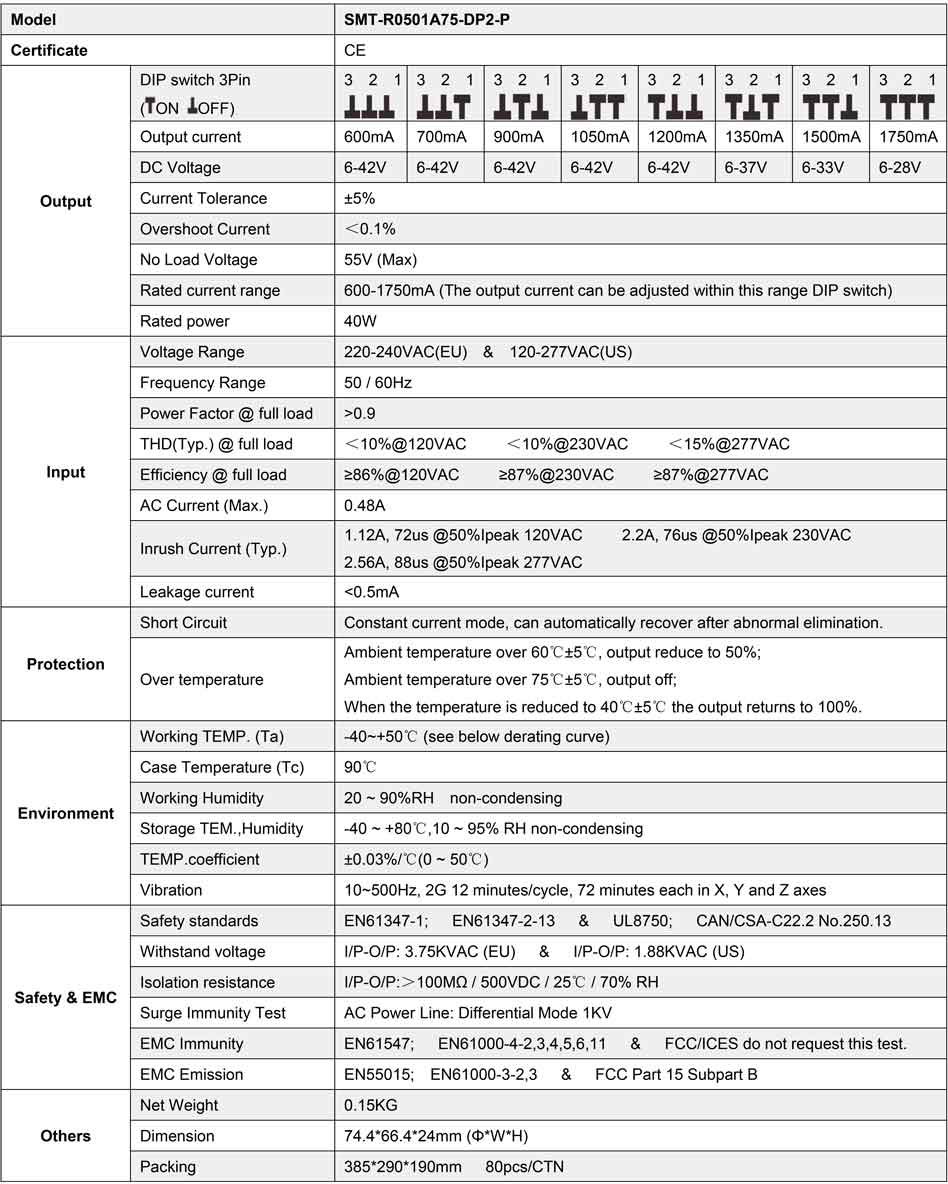

Specification
|
|
 |
 |
 |
Mechanical Specification
| American wire gauge | |
| CO4C | |
| Input wire | Black(L) White(N) (2*18AWG) |
| Output wire | Red(V+) Black(V-) (2*22AWG) |
| Dimming electronic wire | Purple(DIM+) Pink(DIM-) (2*22AWG) |
Dimming Operation
Connection Diagram for DALI Dimmer:
