0-10V dimming principle
2021-08-18
The power supply is designed with a control chip. When the 0-10V dimmer is connected, the output current of the power supply is changed through the 0-10V voltage change, and the light is reduced.

For example: when the 0-10V dimmer is modulated to 0V, the current drops to 0, and the brightness of the light is turned off. When the 0-10V dimmer is adjusted to a maximum of 10V, the output current will also reach 100% of the power output. , The brightness will also be 100%.

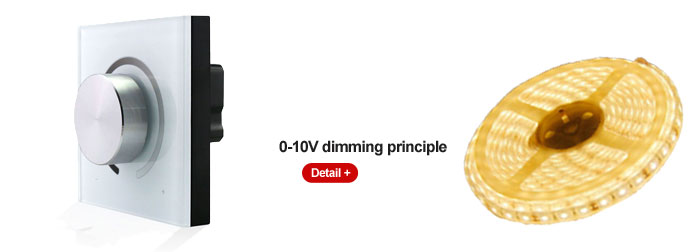

0-10V dimmer


1-10V dimming principle: As explained above, only the dimmer is 1-10V: when the resistance dimmer is adjusted to a minimum of 1V, the current that changes the output is also 10%, if it reaches 10V, the output current will also reach the power supply When the output is 100%, the brightness will also be 100%. Remarks: 1-10V dimmer has no switch function, and the lamp cannot be adjusted to the lowest shutdown function!

PWM: equivalent to a control system

1. It is also dimmed by 1-10V or 0-10V, but the control system can control multiple dimming lines

2. The PWM system can be connected to a computer and controlled by the network to facilitate control of the 0/1-10V dimming device. There are two independent circuits in the device.
