100-277vac ultra slim dali-2 dimmable constant current led driver 12v-54v 60w

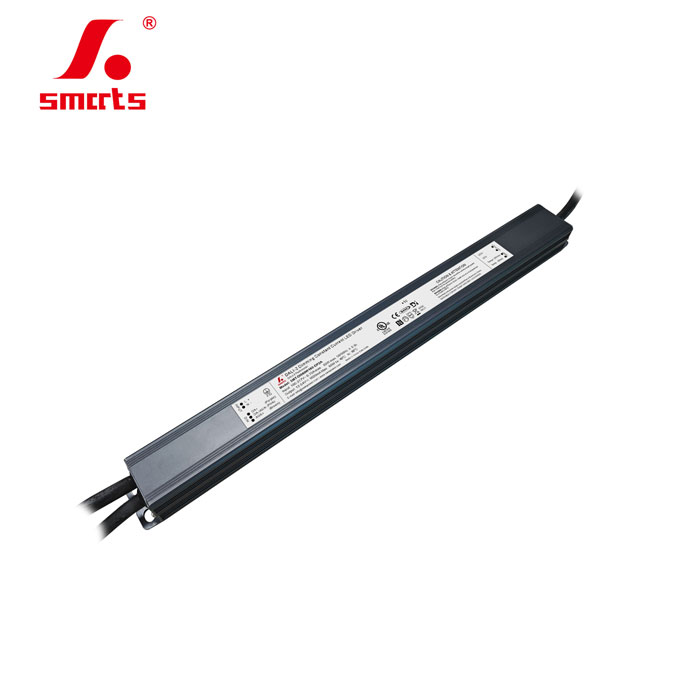

This 60W DALI-2 & PUSH dimmable LED driver is equipped with NFC smart programming module. Users can read, write and program the LED driver through NFC APP. The dimming range is smooth and flicker-free between 1-100%.
Specification
| Model | SMT-DI060W160-DP2P | |
| Certificate | UL / FCC / CE / RoHS / Reach / DALI / NFC | |
| Output | Rated current | 160mA-1600mA (multiple current for choice freely by ProNFC) |
| DC Voltage | 12V-54V | |
| No-load voltage | 60Vmax | |
| Voltage Tolerance | Output current ± 10mA for ≤ 300mA, ± 20mA for ≥ 300mA, and ± 30mA for ≥ 1000mA | |
| Rated power | 60Wmax | |
| Line Regulation | <0.5% | |
| Load Regulation | <0.5% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor (Typ.) | PF≥0.94 | |
| No load power (Max) | <1.5W | |
| Standby power (Max) | <0.5W | |
| THD(Typ.) @ full load | ≤15% | |
| Efficiency @ full load | ≥88%@120VAC 60Hz ≥89%@230VAC 50HZ ≥89%@277VAC 60HZ | |
| AC Current (Max.) | 0.75A | |
| Inrush Current (Typ.) | 28.7A, 204us@50%Ipeak@120V 55.2A, 98us@50%Ipeak@230V 66.0A, 220us@50%Ipeak@2770V | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over voltage | Hiccup or constant power mode, reboots automatically after fault condition is removed | |
| Over temperature |
Ambient temp. over 55 ± 5℃, output current will be reduced to 50%; Ambient temp.Over 45 ± 5℃,recovers automatically. Ambient temp.over 75 ± 5℃, output current will be reduced to 0%; Ambient temp.Over 45 ± 5℃,recovers automatically. |
|
| Environment | Working TEMP | -40~+60℃ (see below derating curve) |
| Working Humidity | 20 -90%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750 (US) |
| Withstand voltage | I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.8KVAC (US) | |
| Strobe test standard | IEEE 1789 Flicker free | |
| lightning surge | DM:2KV | |
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US) | |
| Others | Net Weight | 0.38KG |
| Dimension | 314*30*21.7mm (L*W*H) | |
| Packing | pcs /CTN | |
| Notes |
1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. 2. To extend the driver's using life, please reduce the loading at lower input voltage . |
|
 |
 |
 |
 |
Mechanical Specification
1.Input with Gray terminals 6P: Live Wire AC (L), Neutral Wire AC(N) .
2.Output LED SEC with Red/Black terminals 4P: output Positive (LED+), output negative (LED-). Connected to LED Lamps.
3.Dimming Gray terminals 6P: when DALI dimming, signal dimming DA+, DA-/PUSH N- and PUSH L connected to the BUS of the DALI Master.
4.Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
5.This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors,
and the resistance value when triggering protection is between 1 Ω -20K Ω.
Warm tips: Suggested wire diameter: Input 0.2mm2-1.5mm2/AWG24-16.
