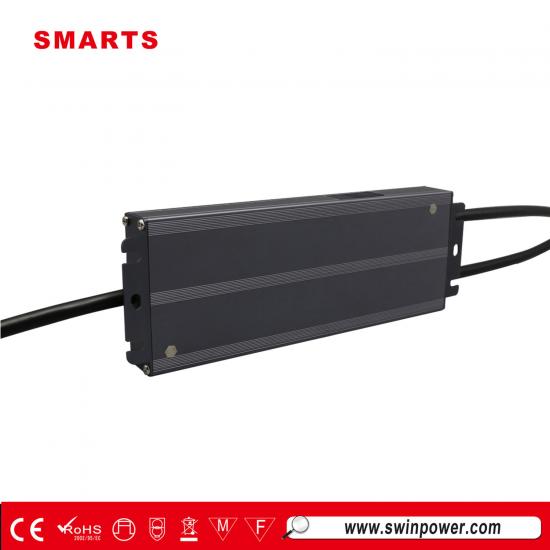

120v 277v DMX dimmable 100w waterproof led driver 12vdc
|
It’s easily designable with dimming capabilities via DMX dimmable. Our DMX dimmable led driver is designed with led driver and DMX decode intergration with one. We also has a single configurable 100w driver constant current LED output. |
Specification
|
Model |
SMT-1296-5C-A |
||
|
X=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW) |
|||
|
Output |
DC Voltage |
12V |
|
|
Voltage Tolerance |
±0.5V |
||
|
Voltage Regulation |
±0.5% |
||
|
Rated current |
CH1+CH2+CH3+CH4+CH5=4.0A |
||
|
Rated power |
100W |
||
|
Load Regulation |
±2% |
||
|
Input |
Voltage Range |
100-277VAC |
|
|
Frequency Range |
47 - 63Hz |
||
|
Power Factor（Typ.@ full load |
PF≥0.98/ 230VAC (Full loading) |
||
|
THD（Typ.）@ full load |
<15% |
||
|
Efficiency（Typ.）@ full load |
89% @230VAC |
89%@230VAC |
|
|
AC Current（Max.） |
1.3A |
1.3A |
|
|
Inrush Current （Typ.） |
48.5A,164us@50%Ipeak |
||
|
Leakage current |
<0.5mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recover automatically after fault condition is removed |
|
|
Over Load |
≤120% ,hiccup model, recover automatically after fault condition is removed |
||
|
Over temperature |
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop |
||
|
Protection Class |
II |
||
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
|
|
Working Humidity |
20 - 95%RH ,non-condensing |
||
|
Storage TEM.,Humidity |
-40 - +80℃，10 - 95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0 - 50℃） |
||
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US) |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US) |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC Emission |
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US) |
||
|
EMC Immunity |
EN61000-4-2,3,4,5,6,11 EN61547 |
||
|
Others |
Net Weight |
0.90KG |
|
|
Dimension |
230*78*25mm (L*W*H) |
||
|
packing |
10PCS/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
 |
 |
 |
 |
Mechanical Specification
※Input Rubber cable 3*1.0mm²(VDE approval), the Y/G cable connect with (FG) , Brown with AC (L), Blue with AC(N) (EU)
Input SJOW Rubber cable 3*18AWG (UL approval), the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US)
※Output cable to be connected to LED Light;
DIM (DW) dimming: Rubber cable
Black is output ( V+) Positive, White is output (V-) negative
CCT (TW) dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative
RGB dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) and Blue (B-) are output (V-) negative
RGBW dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (W-) are output (V-) negative
RGB+CCT dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , While (CW-) and Yellow (WW-) are output (V-) negative.;
※Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
Connection diagram ani
Sp
ecification
Menical Speciiion
Compatible with RGB LED strip Type
The dmx led driver can control the RGB lights what you like for your stage lighting, the led lighting in outdoor, where you can change the lighting scenario.
