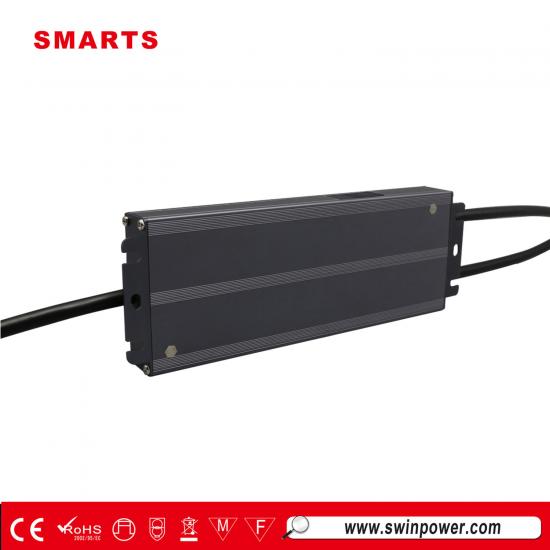

12v 100w DMX dimmable led driver power supply for led strips
|
Both RDM function and NFC function DMX512 dimmable led driver 100w 12v, RGBCW channels for options, the wattages are also available with 30W, 60W, 120W, 150W, 200W for Ledmontreal various RGB LED strips. |
Specification
Model
SMT-12100-XC-A
SMT-24100-XC-A
X=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT (RGBCW)
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated current
CH1+CH2+CH3+CH4+CH5=8.3A
CH1+CH2+CH3+CH4+CH5=4.17A
Rated power
100W
Load Regulation
±2%
Input
Voltage Range
100-277VAC
Frequency Range
47 - 63Hz
Power Factor（Typ.@ full load
PF≥0.98/ 230VAC (Full loading)
THD（Typ.）@ full load
<15%
Efficiency（Typ.）@ full load
89% @230VAC
89%@230VAC
AC Current（Max.）
1.3A
1.3A
Inrush Current （Typ.）
48.5A,164us@50%Ipeak
Leakage current
<0.5mA
Protection
Short Circuit
Hiccup mode, recover automatically after fault condition is removed
Over Load
≤120% ,hiccup model, recover automatically after fault condition is removed
Over temperature
≤100℃±10℃, shutdown output voltage, recover automatically after temperature drop
Protection Class
II
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20 - 95%RH ,non-condensing
Storage TEM.,Humidity
-40 - +80℃，10 - 95%RH
TEMP.coefficient
±0.03%/℃（0 - 50℃）
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13 (EU) & UL8750 UL1310 (US)
Withstand voltage
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) & I/P-O/P:1.5KVAC(US)
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC Emission
EN55015 EN61000-3-2 EN61000-3-3 (EU) & FCC Part 15 B (US)
EMC Immunity
EN61000-4-2,3,4,5,6,11 EN61547
Others
Net Weight
0.80KG
Dimension
230*78*25mm (L*W*H)
packing
Carton size: 300*280*215mm; 20PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and
25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |
Mechanical Specification
In
Input Rubber cable 3*1.0mm²(VDE approval), the Y/G cable connect with (FG) , Brown with AC (L), Blue with AC(N) (EU)
Input SJOW Rubber cable 3*18AWG (UL approval), the green cable connect with (FG) ,Black with AC (L), White with AC(N) (US)
Dimming cable Purple (D+), Brown (D-) and Gray (GND) connect to DMX dimmer / system.
DIM (DW) dimming: Rubber cable
Black is output ( V+) Positive, White is output (V-) negative
CCT (TW) dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, While (CW-) and Yellow (WW-) are output (V-) negative
RGB dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) and Blue (B-) are output (V-) negative
RGBW dimming: 1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (W-) are output (V-) negative
RGB+CCT dimming:1015 electronic cable , (V+) 16AWG; (V-) 18AWG
Black is output ( V+) Positive, Red (R-), Green (G-) ,Blue (B-) , White (CW-) and Yellow (WW-) are output (V-) negative.;
Please make sure you connect these correctly ,otherwise your product will not work correctly and could be damaged.
