12v 24v 360w triac dimming constant voltage led driver Zurik led driver

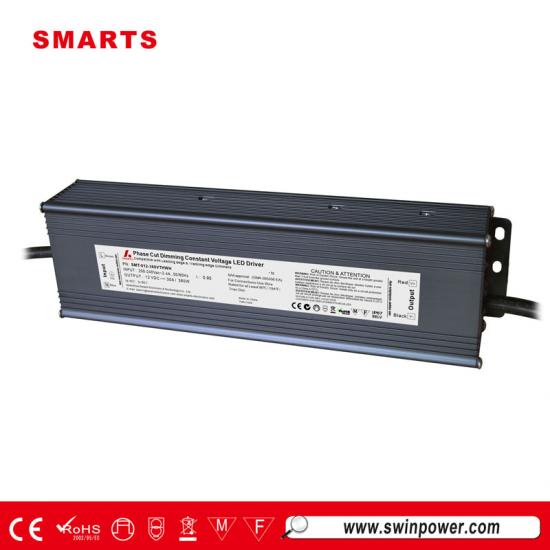

Smarts 12v 24vdc 360w 220vac dimmable led driver is triac dimming mode, it's IP67 waterproof which could replace Zurik led driver ZRK-EMLV2-300W-12VDC-J for indoor and outdoor use, 7 years warranty for normal use.
Specification
Model |
SMT-012-320VTHWH |
SMT-024-320VTHWH |
||
Output |
DC Voltage |
12V |
24V |
|
Voltage Tolerance |
±0.5V |
|||
Load Regulation |
±2% ±1% |
±1%
|
||
Rated current |
30A |
15A |
||
Rated power |
360W |
|||
Input |
Voltage Range |
220-240VAC |
||
Frequency Range |
47~63HZ |
|||
Power Factor(Typ.) |
PF≥0.95(Full loading) |
|||
Efficiency(Typ.) |
>88% (Full Load) )) |
>90% (Full Load) |
||
AC Current(Typ.) |
2.4A 1.76A 1.74A |
|||
Leakage current |
<0.50mA |
|||
Protection |
Short Circuit |
No output, remove the fault and re-power on to recover |
||
Over load |
≤120% |
|||
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|||
Environment |
Working TEMP. |
-40~+60℃ |
||
Working Humidity |
20~90%RH,non-condensing |
|||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|||
TEMP.coefficient |
±0.03%/℃(0~50℃) |
|||
Vibration |
10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
|||
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
||
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|||
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
|||
EMC EMISSION |
EN55015,EN61000-3-2,3 (≥60%loading) |
|||
EMC IMMUNITY |
EN61000-4-2,3,4,5,6 ,11,EN61547 |
|||
Others |
Weight |
1.67kg |
||
Size |
276*78*47mm(L*W*H) |
|||
packaging |
336*121*61mm inner box, 350*310*260mm outside carton 10PCS /CTN |
|||
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3. Loading range from 10% to 100% |

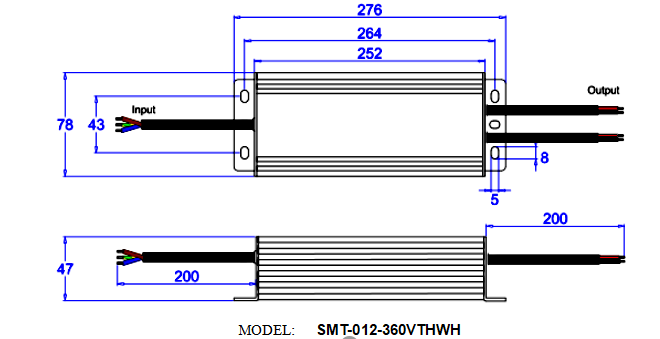

Mechanical Specification
Ø Input Rubber cable H05RN-F 3*1.0mm² ,the green /yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)
Ø Output Rubber cable H07RN-F 2*1.5mm²,Red is output(V+) Positive,Black is output (V-) negative.Connected to LED Lamps.
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged.
Derating Curve
Connecting Diagram
Replaceable power supply
12v ac led driver 360w triac dimmable led driver and Zurik led driver ZRK-EMLV2-300W-12VDC-J can achieve smooth dimming effect with Lutron dimmers.
Related Products
|
Plastic case 12v 60w triac dimmable led driver is CE,ETL/cETL,FCC, ROHS approval, they are hot sells in US and canada
Mode:SMT-012-048VT intput voltage:100~130VAC
IP20 indoor use
plastic case dimming mode: triac dimmable working mode: constant voltage Size: 178*61*24mm (L*W*H) 5 years warranty |
