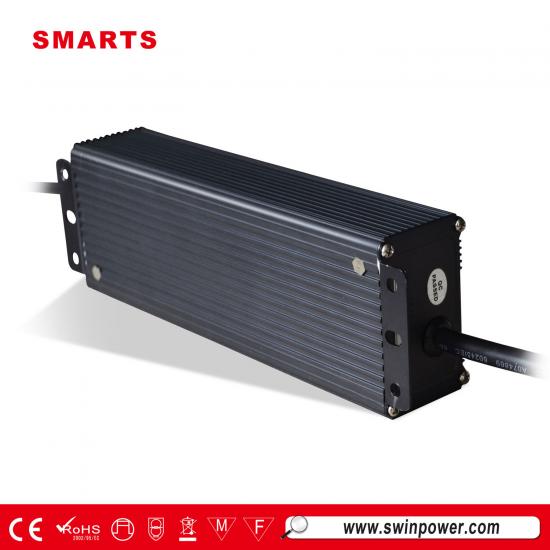

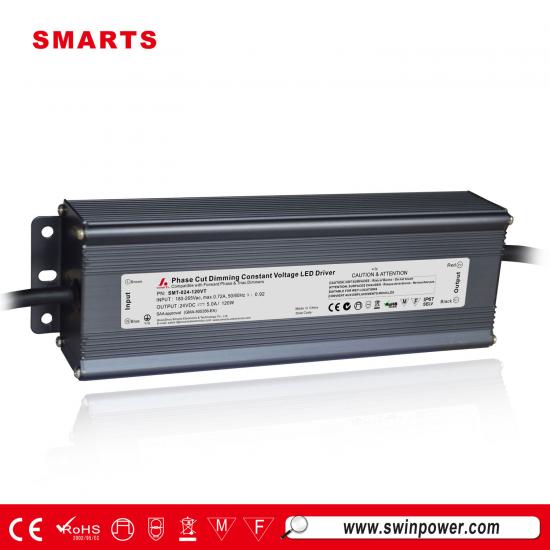

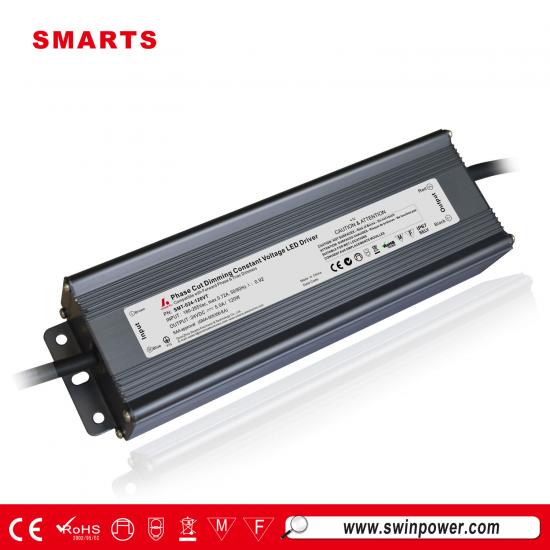

outdoor led driver 24v triac dimmable led power supply 5 amp
The input voltage of this outdoor led driver 24v is 180-265vac. This triac dimmable led power supply 5 amp has the certification of CE SAA FCC RoHs and 5 years warranty. In particular, it has a matching junction box.
Specifications
- AC-DC Triac Dimmable LED Driver
- Dimming mode: triac dimmable 24VDC, power;120W
- working mode: constant voltage
- I/P:180~265V, 50-60Hz
- Ambient temp.: 20 degree~40 degree @ full load
- Efficiency > 83% PF:0.7
- size 230*70*46mm
- waterproof rate: IP67
- packing: 10pcs/ctn, overload,over heat, over voltage, short circuit protection
- 5 years warranty
- CE, SAA, ROHS approval
Features
- Case material: plastic case
- Cooling by free air convection
- 100% full load burn-in test
- High reliability
- Universal AC input (180~ 265VAC)
- designing standard: Class 2 power unit
- Cooling by nature
- Suitable for dry location
- Follow the global lighting safety regulations
|
model |
SMT-012-120VT |
SMT-024-120VT |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
10.00A |
5.00A |
|
|
Rated power |
120W |
||
|
Input |
Voltage Range |
100~130V AC/170～265V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.8/110V,PF≧0.81/170V,PF≧0.82/220V,PF≧0.82/265V |
||
|
Full Load Efficiency（Typ.） |
>83% |
>83% |
|
|
AC Current（Typ.） |
0.66A/110VAC 0.63A/170VAC 0.57A/220VAC 0.52A/265VAC |
||
|
Leakage current |
﹤0.27mA/110V/220VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over voltage |
≦140VAC(100~130V) , ≦270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN-60950-1, EN61347-1 EN61347-2-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level （surge4KV） |
||
|
Others |
Weight |
1.3Kg |
|
|
Size |
230*70*46mm（L*W*H） |
||
|
packing |
329*279*176mm , 10PCS/ctn |
||
|
Notes |
3. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 4. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||

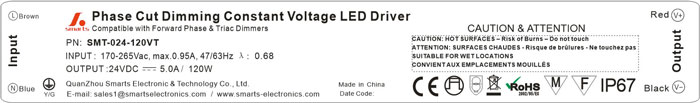

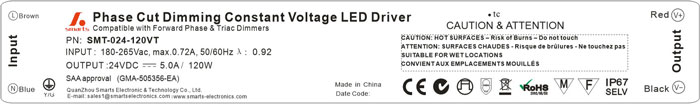

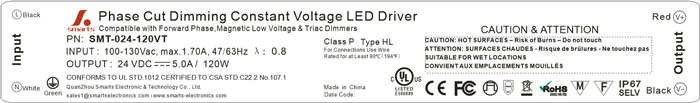

| Label |
|
||
 |
 |
 |
 |
