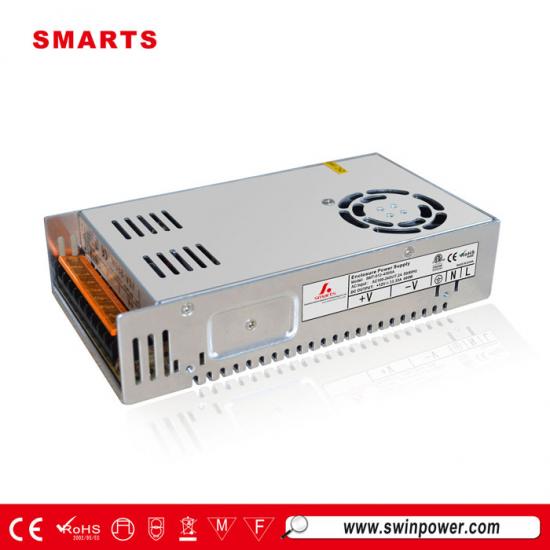

12v 24v 400w led strip light power supply for LED Edge-Lit Flat Panel Light

Competitived price and high reliability, soft-start current can reduce the AC input impact effect, IP20 low energy consumption 12v & 24v led strip light power supply.

  • Brand:

    SMARTS
  • Item No.:

    SMT-012-400SA
  • Input Voltage:

    100-240vac
  • Output Voltage:

    12V
  • Output Current:

    33.33A
  • Working Mode:

    cv
  • Dimming mode:

    non-dimmable
  • Size:

    215*115*50mm
  • Certification:

    ETL, CE, RoHS approval
Products description

12v 24v 400w led strip light power supply for LED Edge-Lit Flat Panel Light


This 240v led strip transformer 400w SMT-012-400SA has an average life of 30,000-hour/3-years, It has an internal built in cooling fan, three output terminals for the Nora Lighting’s 12Volt output indoor ceiling lights.


  Specification

Model

SMT-012-400SA

SMT-024-400SA

SMT-036-400SA

SMT-048-400SA







output

DC voltage

12V

24V

36V

48V

Voltage tolerance

±1%

±1%

±1%

±1%

Rated current

33.33A

16.67A

11.11A

8.33A

Current range

0~33.33A

0~16.67A

0~11.11A

0~8.33A

Rated power

400W

400W

400W

400W

Ripple&noise

150mvp-p

150mvp-p

150mvp-p

150mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%

±10%





input

Voltage range

100~240Vdc

frequency

47~63HZ

AC current

3.2A/115VAC,1.6A/230VAC

efficiency

83%

83%

83%

83%

Inrush current

Cold start current 18A/115VAC,36A/230VAC

Leakage current

< 1mA/240VAC



protection

overload

Rated output power115%~150% start over load protection

protection type:cutoff output,recovery after restart power

Over voltage

15.6~17.8V

18.6~20.8V

30.6~33.2V

33.2~35.6V

protection type:hiccup mode,auto-recovery after fault condition is removed

-----

-----

-----

environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


   Mechanical Specification


24v led strip light power supply

24v led strip light power supply


  Compatible strip LED lights Type


Nanolumens single color strip LED lights are a flexible modular lighting system that is non-dimmable, versatile and very simple to install together with 240v led strip transformer, They allows customers to install in the most locations, easily and with minimum effort.

24v led strip light power supply


  Related Products


24v led strip light power supply

240v led strip transformer allows the end system to easily meet the worldwide energy requirement.


Mode:SMT-012-060SA

intput voltage:100~240V

Size:112*88*34mm (L*W*H)

ETL,RoHS,CE approval
