12V 24V LED Driver Dimmable 60W Manufacturers
Our replacement led drivers is 12v 24v from 30watts to 300watts available with isolated circuits and overload protection. 277vac dimmable led power supply is designed to work with any recent standard wall dimmer (Triac or Low voltage Magnetic) and allows you to smoothly dim Osram Led Strips from 100% to 20% without any noise or flickering.
Specifications
|
model |
SMT-012-060VTHW |
SMT-024-060VTHW |
|
|
Output |
DC Voltage |
12V |
24V |
|
Adj. Voltage Range |
10-13V |
21.5-25.5V |
|
|
Voltage Regulation |
±0.5% |
||
|
Rated current |
5.00A |
2.50A |
|
|
Load Regulation |
±1% |
||
|
Voltage Tolerance |
±0.5V |
||
|
Rated power |
60W |
60W |
|
|
Input |
Voltage Range |
100-277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
0.98@120VAC 0.95@277VAC |
0.98@120VAC 0.95@277VAC |
|
|
Full Load Efficiency（Typ.） |
>83% |
>83% |
|
|
AC Current（Typ.） |
0.9A/110VAC |
||
|
Inrush Current （Typ.） |
14A, 50%, 780us |
||
|
Leakage current |
<0.50mA |
||
|
protection |
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|
|
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:1.88KVac |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
Others |
Weight |
About 0.35Kg |
|
|
Size |
178*61*24mm（L*W*H） |
||
|
packing |
20PCS/CTN （L*W*H） |
||
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
||
 |
 |
 |
 |
Mechanical Specification
Ø Input terminals "Black" and "White" to connect to AC L and N.
Ø Output terminals "Red" to LED Positive side (+) , "Black" to LED Negative side (-).
Dimming Operation
※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or trailing edge triac dimmers, but trailing edge dimmers work better..
Note: Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Compatible Lighting Type
The Spotless strip also has a high colour rendering index of CRI 90 and is very bright at 1420 lm/M, which means the strip can be used to create custom luminaires. Spotless Strip 24V IP20 5m x 10mm 2700K 18W/m CRI90 from ntegral-led can be matched with repalcement led drivers from Swinpower.
Related Products
|
|

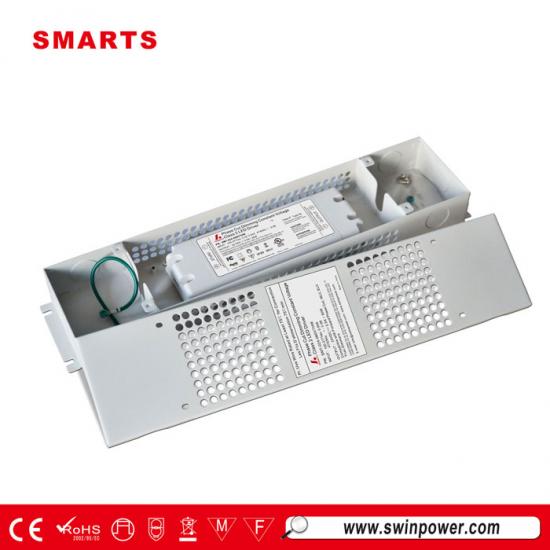

constant voltage 12VDC LED Driver features outstanding LED dimming performance.
