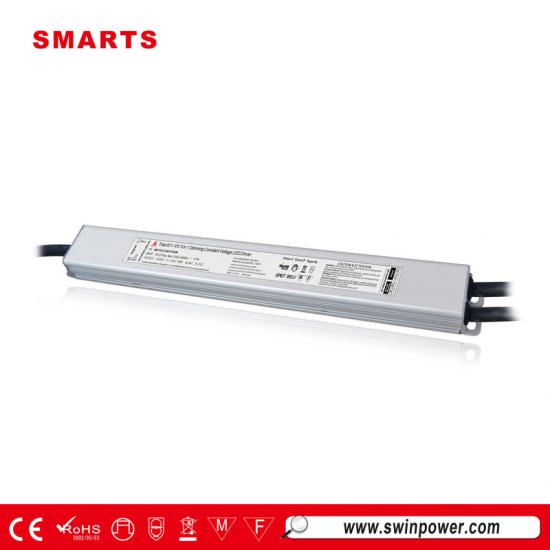

12v 30w Waterproof IP67 Pwm Dimmable Led Power Supply for Ceiling Panel Light

SMT-012-030VTDSWH 200~240VAC slim shape (5 in 1) Dimmable 30 Watt LED driver has 7 years warranty, which is popular in the EU market. It matches with Caseta Smart Home Plug-In Lamp Dimmer Switch P-PKG1P-WH.
  • Brand:

    SMARTS
  • Item No.:

    SMT-012-030VTDSWH
  • Input Voltage:

    200-240vac
  • Output Voltage:

    12/24vdc
  • Output Current:

    2.5A/1.5A
  • Working Mode:

    Constant voltage
  • Dimming mode:

    Triac/0-10V/1-10V/Potentiometer/10V PWM
  • Size:

    262*32*20mm
  • Certification:

    CE ROHS
Products description

12v 30w Waterproof IP67 Pwm Dimmable Led Power Supply for Ceiling Panel Light


SMARTS manufacturer SMT-012-030VTDSWH (5in1) triac & 0-10V dimmable LED drivers  match well with most of brands of Potentiometer like Clipsal Saturn 4000 Light Dimmer and Fan Control Mechanism Knob.


  Specification:

model

SMT-012-030VTDSWH

SMT-024-030VTDSWH

Output

DC Voltage

12VDC

24VDC

Voltage Tolerance

±5%

±5%

Rated current

2.5Amp

1.25Amp

Rated power

30W

30W

Voltage Regulation

±0.5%

Load Regulation

±2%

±1%

Input

Voltage Range

200-240VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≥0.96/230VAC

THD(Typ. ) @ full load

< 20%

Full Load Efficiency(Typ.)

79%

78%

AC Current(Typ.)

0.25A

Inrush Current(Typ.)

40.8A,50%,102us

Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode,recovers automatically after fault condition is removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Over temperature

100℃±10℃

Protection Class

II

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20 - 95%RH,non-condensing

Storage TEM.,Humidity

-40 - +80℃,10 - 95%RH

TEMP.coefficient

±0.03%/℃(0 - 50℃)

Vibration

10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13  EN62493

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P: 100MΩ/500VDC/25℃/70%RH

EMC EMISSION

EN55015    EN61000-3-2    EN61000-3-3

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11      EN61547

Others

Weight

0.2Kg

Size

260*30*18.5mm(L*W*H)

packing

330*275*130mm/   50pcs /CTN    G.W.:  11KG/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

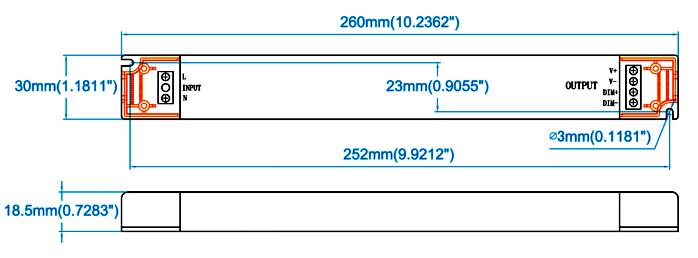

  Dimension:


led power supply ip67

  Compatible Triac Dimmers type


SMT-012-030VTDSWH SMARTS 12v 30w slim shape dimmable led driver is mainly using for EU market. It works well with MFE Single Pole 3 Way Dimmer Switch for Dimmable LED, CFL, Halogen and Incandescent Lamp, Wall Plate Included.

led power supply ip67
