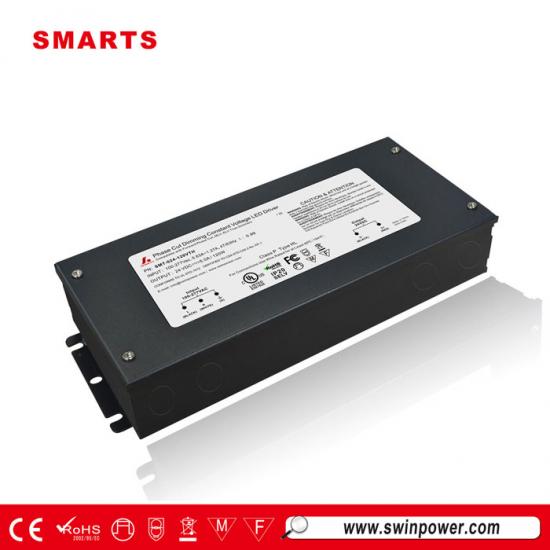

24vdc 120w Class P TYPE HL triac Dimmable LED Driver
Our 277VAC SMT-024-120VTH is an excellent quality 24v dimmable led transformer. Compatible with most AC wall dimmer including Leviton, Lutron and most other household dimmers. Can be used for many LED lights including strip light, puck light, module light of ledwatcher,led bar light and many other applications. Requires no minimum load and it is very quite without any buzz or humming noise.
|
Features |
Label |
|
·Output constant voltage ·Input voltage range 120-277VAC ·Built-in PFC function, PF> 0.97 ·Efficiency > 85% / load:0~100% ·Protections:short circuit/over voltage/over heat ·IP20 design for indoor installations ·Cooling by free air convection ·Work with leading edge and trailing edge triac dimmers available ·PWM output, does not change the color index ·Full protection aluminum housing, for dry, damp, wet location ·Strong compatibility, flicker-free dimming ·Suitable for LED lighting and moving sign applications ·Compliance to worldwide safety regulations for lighting ·7 years warranty |
 |
Specification
|
model |
SMT-012-120VTH |
SMT-024-120VTH |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±2% |
||
|
Rated current |
10.00A |
5.00A |
|
|
Rated power |
120W |
||
|
Input |
Voltage Range |
120~277V AC |
|
|
Frequency Range |
47~63HZ |
||
|
Power Factor ( Typ.) |
0.99@120VAC 0.96@277VAC |
0.98@120VAC 0.96@277VAC |
|
|
Full Load Efficiency(Typ.) |
>82% |
>83% |
|
|
AC Current(Typ.) |
1.7A@100VAC |
||
|
Leakage current |
<0.50mA |
||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Over voltage |
≤140VAC(100~130V) , ≤270VAC(170~277V) |
||
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750, UL1012 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV) |
||
|
Others |
Weight |
1.3Kg |
|
|
Size |
220*93*41mm (L*W*H) |
||
|
packing |
329*279*176mm , 10PCS/ctn |
||
|
Notes |
Can we make the 120w 150w 200w 250w constant volatge led drivers into one output?
Answer: Yes. |
||
 |
 |
 |
 |
