277vac ip20 triac&0-10v dimming constant current led driver 40w 600ma

277vac ip20 triac&0-10v dimming constant current led driver 40w 600ma

60W triac&0-10v dimmable led power supply New design, dip switch can change the output current, users can choose different output current according to their own needs

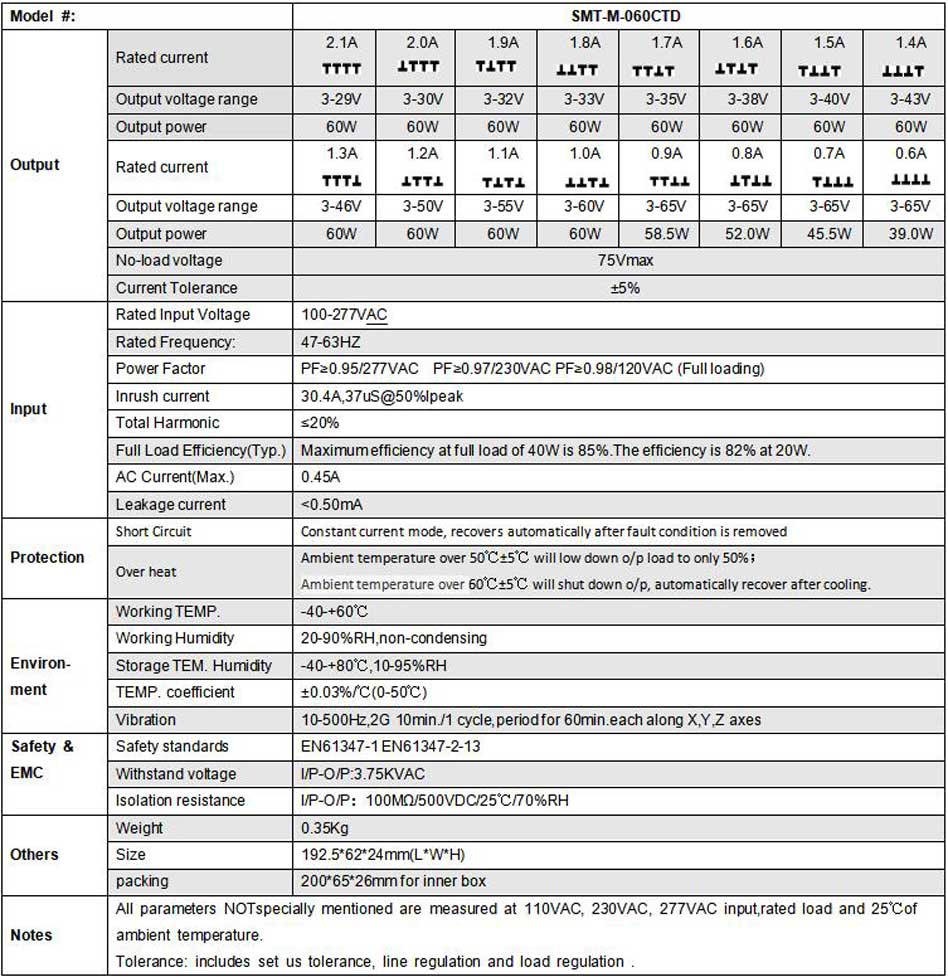

  Specification

  Mechanical Specification

 ※Input terminals "Black" and "White" to connect to AC L and N.

 ※Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.

※Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)

※Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged

 Dimming Operation

Ø Using TRIAC/Phase cut dimming

1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.

2.Work with forward phase /leading edge ,MLV and reverse phase /trailing edge ,ELV,TRIAC dimmers.

3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
