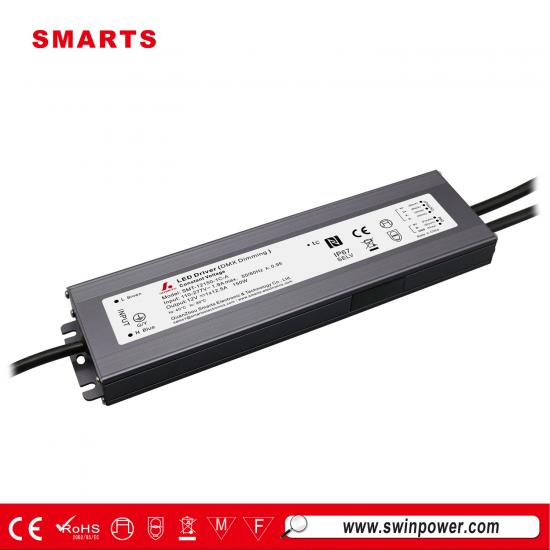

7 yaers warranty 150W DMX512 constant voltage led driver rgb

Model

SMT-12150-XC-A

SMT-24150-XC-A

X=1 , 2,  3,  4,  5 for DIM (DW);  CCT(TW);  RGB;  RGBW;  RGBW+CCT (RGBCW)

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Rated current

CH1+CH2+CH3+CH4+CH5=12.5A

CH1+CH2+CH3+CH4+CH5=6.25A

Rated power

150W

Load Regulation

±2%

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor（Typ.）@ full load

PF≥0.97@230VAC

THD（Typ.）@ full load

≤10%

Efficiency（Typ.）@ full load

91%@230VAC

79%

92.5%@230VAC

AC Current（Max.）

1.85A

1.85A

Inrush Current （Typ.）

88A (Twidth 120us measured at 50% I peak, COLD START, 230VAC)

Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode ,recovers automatically after fault condition is removed

Over Loading

≤120%  Hiccup mode ,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~95%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

EN61347-1   EN61347-2-13 (EU)   &  UL8750  UL1310 (US)

Withstand voltage

I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC (EU) &

I/P-O/P:1.5KVAC(US)

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

EN55015  EN61000-3-2 ,3-3 (EU) & FCC Part 15 B (US)  (≥60% loading)

EMC Immunity

EN61000-4-2,3,4,5,6,11, EN61547

Others

Net Weight

0.9KG

Dimension

277x78x25mm (LxWxH)

packing

Carton size: 300*280*215mm;   20PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.

2. Tolerance: includes set up tolerance, line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
