CE ETL constant voltage waterproof dimmable led driver 12v 24v 80w

Triac dimmable led driver 12v 80w, CE ETL ROHS approved, 5 years warranty. ( SMT-024-080VT for 24v 80w dimmable led driver) SMT-012-080VT can be matched with LEDELS LL-F12P600W1L45.



  • Brand:

    SMARTS
  • Item No.:

    SMT-012-080VT
  • Input Voltage:

    110-277VAC
  • Output Voltage:

    12Vdc/24vdc
  • Output Current:

    6.67A/3.33A
  • Working Mode:

    80W
  • Dimming mode:

    triac dimming
  • Size:

    200*68*45mm
  • Certification:

    CE ETL FCC ROHS
Products description

CE ETL constant voltage waterproof dimmable led driver 12v 24v 80w


SMT-012-080VT is dimmable led driver 12v triac. both 12vdc and 24vdc output voltage are avaliable. It is 80w triac dimmable led drivers without min load limited. Only compatible with leading edge dimmers MLV dimmer, the standard version can not work with ELV dimmer, if you have projects need match with ELV and MLV dimmers then our UL triac dimmable driver can one of your choose. SMT-012-080VT can work with Ledwatcher's 10084598.

  Specification of dimmable led driver 12v:


model

SMT-012-080VT

SMT-024-080VT

Output

DC Voltage

12V

24V



Voltage Accuracy

±0.5V

±0.5V



Rated current

6.66A

3.33A



Rated power

80W

Input

Voltage Range

100~130V AC/170~265V AC



Frequency Range

47~63HZ



Power Factor ( Typ.)

PF≧0.70/110V,PF≧0.70/170V,PF≧0.70/220V,PF≧0.70/265V



Full Load Efficiency(Typ.)

>84%

>84%



AC Current(Typ.)

1.24A/110VAC  0.80A/170VAC  0.62A/220VAC  0.51A/265VAC



Leakage current

﹤0.25mA/110V/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.



Over voltage

≦140VAC(90~135V) , ≦270VAC(170~265V)

Environment

Working TEMP.

-40~+60℃



Working Humidity

20~90%RH,non-condensing



Storage TEM.,Humidity

-40~+80℃,10~95%RH



TEMP.coefficient

±0.03%/℃(0~50℃)



Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN-60950-1, EN61347-1/-2/-13



Withstand voltage

I/P-O/P:3.75KVAC



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)



EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level (surge4KV)

Others

Weight

0.99Kg



Size

210*68.5*43mm(L*W*H)



packing

324*298*176mm

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

 pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top


  Compatible Dimmer Type


SMT250-T2 is CE triac dimmer. The input voltage range is 110-240Vac. Loading wattage range round 12w to 250w. The outer size of triac dimmer is 86*86*38mm(L*W*H) Frequency range 50-60Hz. SMT250-T2 can be used with signify's C3SDL.


CE triac dimmer
CE triac dimmer


  Related Products

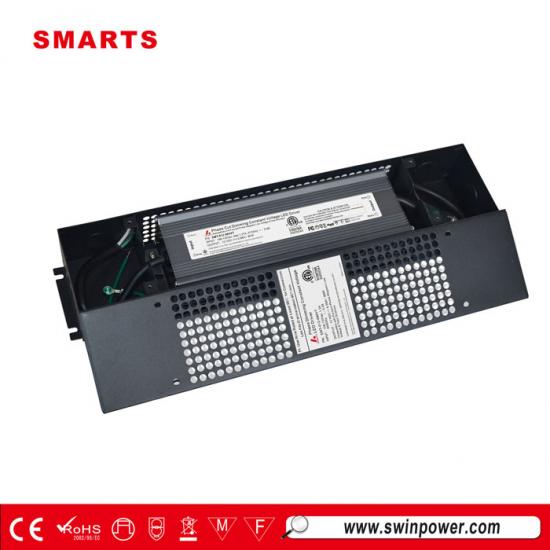

12Vdc 200W triac dimmable led driver
