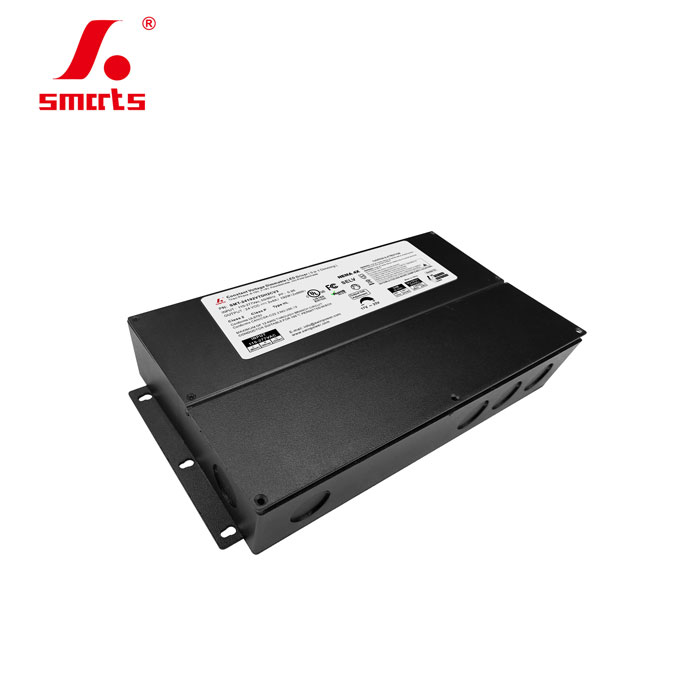

class 2 24v/36v/48v 288W electronic CCT & TRIAC/0 10v dimmable led driver junction box
100-277vac universal input voltage range, CCT & triac/0 10v dimmable led driver with built-in active PFC function, power factor >0.95. Constant voltage operating mode. NEMA 4X suitable for indoor and outdoor use, good heat dissipation, and comes with a 7-year warranty
Specifications
| Model Number | SMT-24288-VTDH3CV3 | SMT-36288-VTDH3CV3 | SMT-48288-VTDH3CV3 |
| OUTPUT | |||
| Rated Power | 288W (3*96W) | 288W (3*96W) | 288W (3*96W) |
| Rated Voltage | 24V | 36V | 48V |
| Rated Current | 3*4A | 3*2.66A | 3*2A |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% | ||
| INPUT | |||
| Voltage Range | 100-277V | ||
| Frequency Range | 47-63Hz | ||
| Power Factor(typ.) | 0.98@120VAC 0.95@277VAC Full load | ||
| Total Harmonic Distortion | THD< 20%@120VC/277VAC; | ||
| Efficiency(Typ.) | 87%@120VAC 90%@277VAC | 87%@120VAC 90%@277VAC | 87%@120VAC 91%@277VAC |
| AC Current(Typ.) | 3.5A@100VAC | ||
| Inrush Current(Typ.) | 35A ,50%,960us @120VAC ; 43A,50%,1ms @277VAC | ||
| Leakage Current | <0.5mA/ 120VAC | ||
| PROTECTION | |||
| Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | ||
| Over Load | ≤120% overload, Constant current output mode, the output voltage will drop and the output current will be limited at a certain value, recovers automatically after fault condition is removed. Over Load≧150%, shut down o/p voltage, re-power on to recover after fault condition is removed. | ||
| Over Temperate | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
| ENVIRONMENT | |||
| Working Temp. | Tcase=-40 ~ +60 ℃ | ||
| Max. Case Temp. | Tcase=+90℃ | ||
| Working humidity | 20 ~ 95% RH non-condensing | ||
| Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||
| Temp .coefficient | ±0.03%/℃(0~50℃) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| SAFETY & EMC | |||
| Safety standards | UL8750, CSAC22.2 No. 250.0-08 | ||
| Withstand voltage | I/P-O/P:1.88KVAC | ||
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||
| EMC Emission | Compliance to FCC part 15 Subpart B | ||
| OTHERS | |||
| Dimension | 289x132x49mm (L*W*H) N.W:2.7kg | ||
| Packing | 8pcs/CTN G.W:25.1KG SIZE: 340*210*245mm | ||
 |
 |
 |
 |
Mechanical Specification
Dimming Operation
Compatible Lighting Type
The 288W triac & 0 10v dimmable led driver is integrated with the junction box and has a built-in fine-tuning voltage function knob. It has strong compatibility and can be used with most triacs and 0 10v dimmers on the market, such as Lutron dimmers.
Related Products
|
This 192W dimmable led driver lighting mode is CCT & 5 in 1 Dimmable. The constant voltage work, the work efficiency is as high as 89%. Has a short -circuit/overload/over -temperature protection function, 7 years warranty
Mode：SMT-24192VTDH2CV3 intput voltage：100~277V AC Certification: UL cUL Size：254*132*42.5mm(L*W*H) Weight：2.5kg/pcs |
