Electronic led driver 150w 12v 24v constant voltage power supply manufacturers

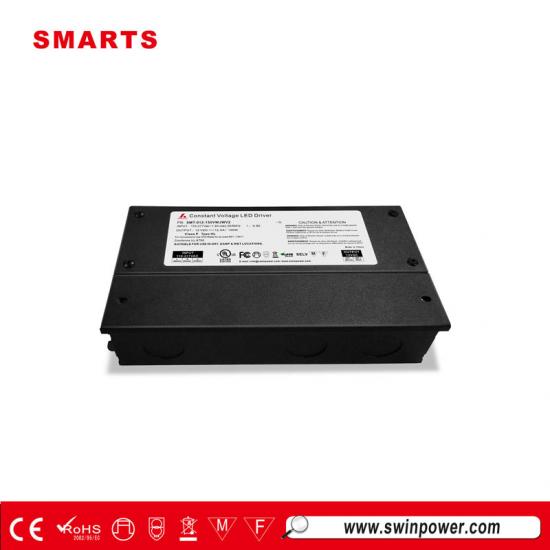

Model SMT-012-150VWJWV2 is a 150w electronic led driver in 12vdc, built in junction box, UL cUL FCC listed, LED power supply manufacturer in China, Compatible with Mean Well HLG / LPV Series LED Power Supplies model: HLG-150H-12A.
Specification:
model
SMT-012-150VWJWV2
SMT-024-150VWJWV2
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
12.5A
6.25A
Load Regulation
±2%
Rated power
150W
150W
Input
Voltage Range
100-277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.99@120V ;0.98@230V ;0.98@277V
0.99@120V ; 0.98@230V ;0.98@277V
Full Load Efficiency（Typ.）
85%@120V, 89%@230V ,89%@277V
88%@120V,92%@230V,92%@277V
AC Current（Typ.）
0.9A/110VAC
Inrush Current （Typ.）
20A,50% ,1.9ms@120V ;60A,50% 130us@230V ; 35A,50% 1.9ms@277V
Leakage current
<0.50mA
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% constant current mode,recovers automatically after fault condition is removed
Over voltage
≦140VAC(90~135V) , ≦285VAC(170~277V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
Others
Weight
About 2.0Kg
Size
260*125*45mm (L*W*H)
packing
10PCS/CTN （L*W*H）
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”t wisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
 |
 |
 |
 |
Dimension:
Compatible LED light type
This 150w constant voltage led power supply is able to work with indoor and outdoor locations LEDs application, Cooling by free air convection and suitable for LED lighting and moving sign applications. work well with ARANI LED strip SKU#ST-120W-30K-I.
