IP65 IP67 12V Triac LED Dimming Drivers for Strip Lights Manufacturer Made in China
The SMT-012-200VTHWV2 200W triac led dimming driver is UL/CUL certification for use in Canada and USA and covered by 7 year manufacturer limited warranty. Typically smaller, lighter and less expensive than magnetic drivers. LED Drivers are fully dimmable with any standard TRIAC dimmer switch.
|
Model |
SMT-012-200VTH (1.0 version) SMT-012-200VTHV2 (2.0 version) SMT-012-200VTHWV2 (3.0 version) |
SMT-024-200VTH(1.0 version) SMT-024-200VTHV2 (2.0 version) SMT-024-200VTHWV2 (3.0 version) |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
Rated Current |
16.66A |
8.33A |
||
|
Rated Power |
200W |
|||
|
Voltage Tolerance |
±0.5V |
|||
|
Voltage Regulation |
±0.5% |
|||
|
Load Regulation |
±2% |
±1% |
||
|
Input |
Voltage Range |
110-277VAC |
||
|
Frequency Range |
47-63HZ |
|||
|
Power Factor（Typ.）@ full load |
0.98@120VAC 0.97@277VAC |
0.98@120VAC 0.95@277VAC |
||
|
THD（Typ.）@ full load |
<20% |
|||
|
Efficiency（Typ.）@ full load |
83% |
86% |
||
|
AC Current（Max.） |
2.3A@110VAC |
|||
|
Inrush Current （Typ.） |
15A, 50%, 1.4ms |
|||
|
Leakage current |
<0.50mA |
|||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
||
|
Over Loading |
≤120% constant current limiting, auto-recovery |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|||
|
Environment |
Working TEMP. |
-40～+60℃ (see below derating curve) |
||
|
Working Humidity |
20～90% RH, non-condensing |
|||
|
Storage TEMP. Humidity |
-40～+80℃，10～95%RH |
|||
|
TEMP .coefficient |
±0.03%/℃（0～50℃） |
|||
|
Vibration |
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
UL8750 |
||
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
FCC Part 15 B |
|||
|
Others |
Weight |
1.8Kg |
||
|
Size |
1.0 version: 260*103*46mm (L*W*H); 2.0 ver.: 260*105*45mm (L*W*H);3.0 ver.: 260*125*45mm (L*W*H); |
|||
|
packaging |
10PCS/CTN Carton size: 385*335*200mm |
|||
|
Notes |
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. |
|||
 |
 |
 |
 |
Mechanical Specification
1.0 version: SMT-012-200VTH , SMT-024-200VTH
2.0 version: SMT-012-200VTHV2, SMT-024-200VTHV2
3.0 version: SMT-012-200VTHWV2, SMT-024-200VTHWV2
-- Input wire 18AWG Black and White to be connected to AC L and N ,Green wire go ground,
-- Output wire 14AWG Red to LED Positive side (+) , Black to LED Negative side (-).

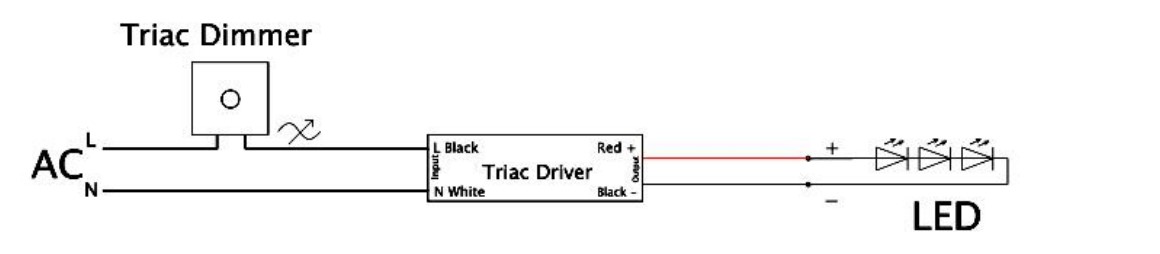

Connection Diagram
Compatible Lighting Type
SMARTS's is the UL led driver manufacturer china. The LED Drivers have been tested for LED Tape lights which onstructed with dependable, industry-standard 3528 SMD LEDs and 0-100% dimmable. Eco Series Tape Light (EC-IP20-80CRI-5m, EC-IP54-80CRI-5m and EC-IP20-80CRI-30m) from superbrightleds brand can be totally matched with our dimmable led drivers.
 |
 |
Related Products
|
|
200W led drivers made in china with universal "Phase" Dimmable Power Supplies to dim your LED Strip Lights using any standard dimmer switch! Featuring ultra-high performance dimming capabilities, our new Universal "Phase" Dimmable Power Supplies are completely Flicker-Free.
Mode：SMT-012-200VTHW intput voltage：100~277V AC Efficiency > 82% Size：256*78*47mm（L*W*H） Weight：1.5Kg/pcs |
|
|
|
