mini 12v 24 volt 60w triac dimming 1-10v dimmable led driver manufacturers
Model SMT-012-060VTD2JV2 is a dimmable led driver 12V 60W, compatible with LUTRON LEVETON triac dimmers and 0-10v dimmers. wattage option from 30w to 300w in UL listed. competitive with DIODE LED OMNIDRIVE Electronic Dimmable Drivers SKU: DI-TD-12V-60W.
Specification
model
SMT-012-060VTD2JV2
SMT-012-060VTD2JV2
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
5A
2.5A
Load Regulation
±1%
Rated power
60W
60W
Input
Voltage Range
100-277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
80%@120V, 80%@230V ,89%@277V
80%@120V,80%@230V,92%@277V
Full Load Efficiency（Typ.）
0.99@120V ;0.98@230V ;0.98@277V
0.99@120V ; 0.98@230V ;0.98@277V
AC Current（Typ.）
0.5A/110VAC
Inrush Current （Typ.）
7A, 50%, 420us @120VAC; 12A, 50% , 480us @277VAC
Leakage current
<0.50mA
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode,recovers automatically after fault condition is removed
Over voltage
≦140VAC(90~135V) , ≦285VAC(170~277V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
Others
Weight
About 0.25Kg
Size
178*61*24mm (L*W*H)
packing
40PCS/CTN （L*W*H）
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”t wisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
 |
 |
 |
 |
Dimension
Compatible LED light type
This 12v led power supply dimmable is able to work with indoor and size limited LEDs application, Cooling by free air convection, universal dimming driver, work with KLUS design LED tape light model: 8K-WP-K-50-1210-12V
Related Products
|

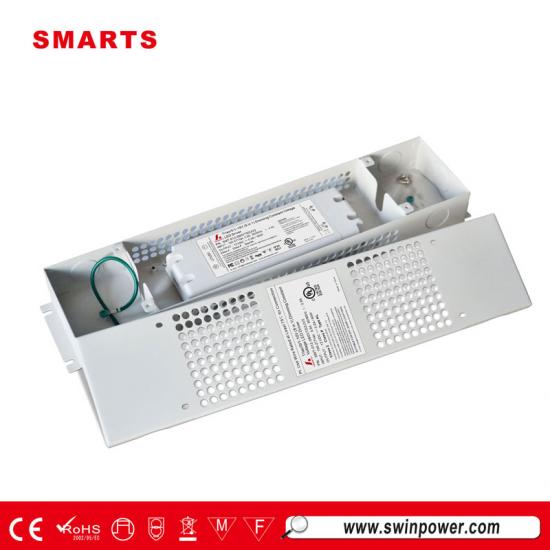

60w led power supply 12v is triac dimmable led driver, phase cut dimming power supply with UL approval.
