New (multi output 3*96W) 288W Class standard LED Driver
2020-07-22

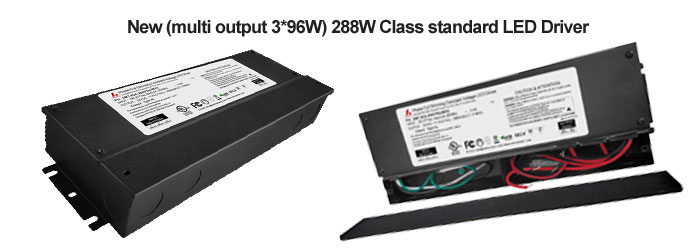

New (multi output 3*96W) 288W Class standard LED Driver

New issued SMT-024-288VTHJWV2 is a led driver 24v dimmable with 3x 96W power outputs, have a perfect operation with wide range of LED under cabinet lights, LED tape lights and various LED sign fixtures installations. Flicker-free lighting which can be smoothly dimmed down to 1%. This 24v constant voltage dimmable led driver is built with junction box which integrated wiring compartment allowing one to make clean connections inside of the power-supply with no need for external junction boxes. With 3x 96W outputs, but with the UL certification and Class-2 Rating.

24v constant voltage dimmable led driver
-- Compact and Durable Metal Housing
-- Flicker free dimming
-- Cooling by free air convection
-- Input voltage: 100-277VAC
-- Auto Circuit Protection: protected against short circuits, over current faults, overloading, and overheating
-- Easy installation
-- High efficiency with a power factor of up to 0.99
-- 7 Years warranty
-- No minimum power load is required

SMARTS 24v triac dimmable led driver are compatible with both forward phase and reverse phase AC dimmers, such as Lutron and LEVITON.
