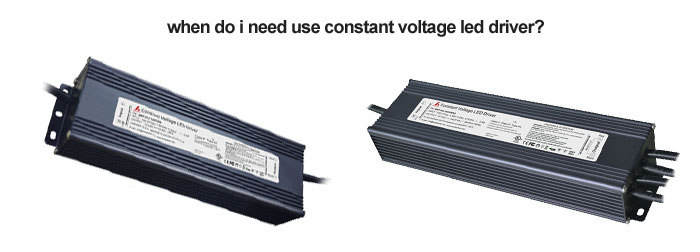

when do i need use constant voltage led driver?
2020-07-24
For lighting equipment in actual projects, it is neither convenient nor economical to manually construct all objects with a single diode. Engineers usually use LEDs in series or parallel to produce the desired effect. Fortunately, more and more LED products are assembled together in the market, such as LED rope lights, LED light bars, etc.

The constant voltage led driver is designed for a single direct current (DC) output voltage. The most common constant voltage led driver (or led power supply) is 12VDC or 24VDC. LED lamps with a constant rated voltage usually specify the amount of input voltage required for their normal operation. Please check the parameters of smart constant voltage led driver as follows:


model

SMT-012-060VWN

SMT-024-060VWN

Output

DC Voltage

12V

24V

Adj. Voltage Range

10-13V

21.5-25.5V

Voltage Tolerance

±0.5V

±0.5V

Voltage Regulation

±0.5%

Rated current

5.00A

2.50A

Load Regulation

±1%

Rated power

60W

60W

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor(Typ.)

@ full load

0.99@120VAC 0.94@230VAC 0.94@277VAC

0.99@120VAC 0.95@230VAC 0.94@277VAC

THD(Typ.)@ full load

<15%@120VAC  <20%@230VAC < 20%@277VAC

Efficiency(Typ.)@ full load

83%@120VAC  87%@230VAC  85%@277VAC

85%@120VAC  88%@230VAC  86%@277VAC

AC Current(Max.)

0.9A@100VAC

0.9A@100VAC

Inrush Current (Typ.)

14A, 50%, 780us@120VAC; 50A,50%,176us@230VAC; 15A,50%,660us@277VAC

Leakage current

<0.50mA

protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

EMC IMMUNITY

Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547

Alight industry level surge4KV

Others

Weight

About 0.35Kg

Size

178*61*24mmL*W*H

packing

20PCS/CTN

L*W*H

Notes

1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.

2. To extend the driver's using life ,please reduce the loading at lower input voltage.

When a constant voltage led driver is used instead of a constant current LED driver, a slightly smaller lumen is usually obtained. Although constant voltage led driver are not as widely used as similar products, they are more efficient when very large displays and or multi-component signs.constant voltage led driver
