outdoor 12v 60 watt led driver triac dimming constant voltage for strip light

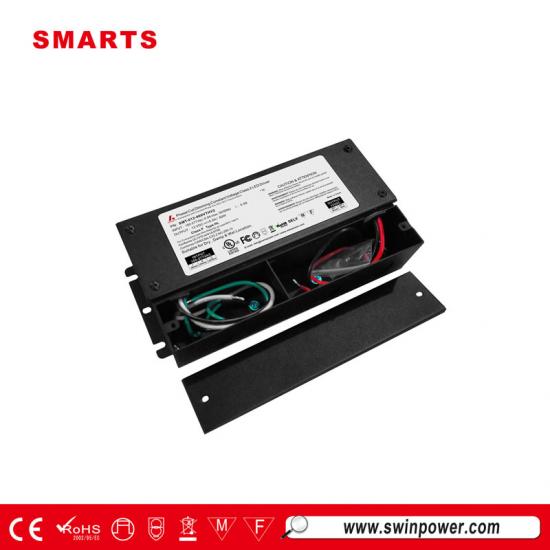

SMT-012-060VTHV2 is a UL cUL class 2 rated 12v 5a 60 watt led driver, diameter of knockout on led drivers for AC & DC wires comming out is about 22MM. this led driver is suitable for working with LED strip of Ushio dim to warm type.
Specification
model
SMT-012-060VTHV2
SMT-024-060VTHV2
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Voltage Regulation
±0.5%
Rated current
5.00A
2.50A
Load Regulation
±1%
Rated power
60W
60W
Input
Voltage Range
100-277V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.98@120VAC 0.95@277VAC
0.98@120VAC 0.95@277VAC
Full Load Efficiency（Typ.）
>83%
>83%
AC Current（Typ.）
0.9A/110VAC
Inrush Current （Typ.）
14A, 50%, 780us
Leakage current
<0.50mA
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode,recovers automatically after fault condition is removed
Over voltage
≦140VAC(90~135V) , ≦285VAC(170~277V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
Others
Weight
About 1.1Kg
Size
2.0 version: 188*94.5*40mm(L*W*H)
packing
20PCS/CTN （L*W*H）
Notes
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”t wisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
 |
 |
 |
 |
Dimension
Compatible Dimmer Type
SMT-012-060VTHV2 12v 60w led driver traic dimming, is competiable with most of the dimmers in Market, like LUTRON brand in North American. its able to work with both MLV dimmer and ELV dimmer. See dimmer cometiable list as below:
Related Products
|
Phase dimming led driver 60w is the terminal screw type connection, plastic caseIP20 design with max. 24mm height, make this able to be used in Mirrors, display, slimline LEDs applications.......
Model：SMT-012-060VTHW intput voltage：100~277V AC Efficiency > 87% PFC:93% Size：178*61*24mm （L*W*H） Weight：0.55Kg/pcs |
|
|

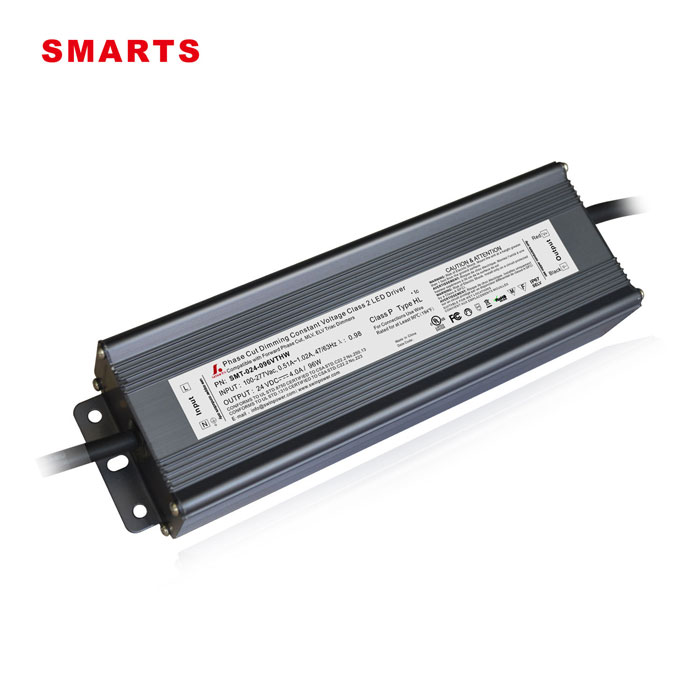

led dimmable power supply PWM output 24v 96w class 2 is aluminum case IP67 waterproof rated, competiable with both leading edge and trialing edge dimmers.
Mode：SMT-024-096VTHW Dimming Mode : triac dimming Size：230*68*45mm （L*W*H） Weight：1.5Kg/pcs
Dimming range：0-100% Certification: UL CE ROHS
Inrush Current （Typ.）: 20A, 50%, 1.6ms |
