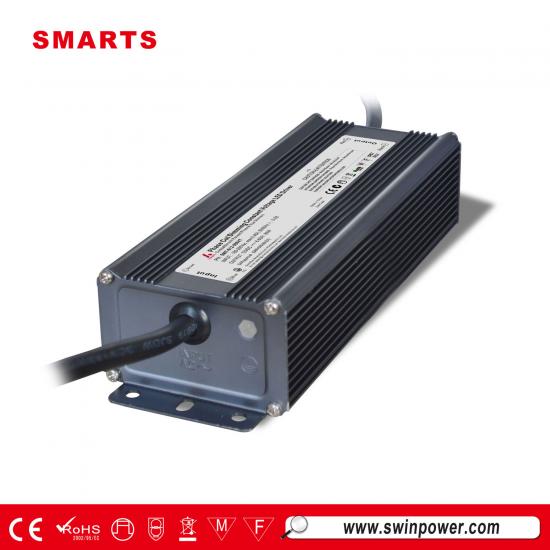

outdoor led driver dimmable single ac to dc 12v LED waterproof transformer
12v LED waterproof transformer is designed for a single direct current output voltage. This led power supply 12volt features an IP67 rated waterproof design, making it suitable for indoor or outdoor use. In addition, they have the certification of CE SAA FCC RoHs and 5 years warranty,has advantages over Itech led power supply in the certificate.
Specifications
Input Voltage: 180-265V AC (50/60Hz)
Output Voltage: 12V DC
Max Load: 80 Watts
Max Ambient Temp.: -40°F to 194°F (-40°C to 90°C)
model
SMT-012-080VT
SMT-024-080VT
Output
DC Voltage
12V
24V
Voltage Accuracy
±0.5V
±0.5V
Rated current
6.66A
3.33A
Rated power
80W
Input
Voltage Range
100~130V AC/170～265V AC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.70/110V,PF≧0.70/170V,PF≧0.70/220V,PF≧0.70/265V
Full Load Efficiency（Typ.）
>84%
>84%
AC Current（Typ.）
1.24A/110VAC 0.80A/170VAC 0.62A/220VAC 0.51A/265VAC
Leakage current
﹤0.25mA/110V/220VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over voltage
≦140VAC(90~135V) , ≦270VAC(170~265V)
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety&EMC
Safety standards
EN-60950-1, EN61347-1/-2/-13
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level （surge4KV）
Others
Weight
0.99Kg
Size
210*68.5*43mm（L*W*H）
packing
324*298*176mm
Notes
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted
pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3.Tolerance:includes set us tolerance,line regulation and load regulation .
Label
Features
No load limitation
PWM out
0-100% dimming range
