triac dimmable led driver 60w 12v dc power supply 5 amp for led lights
The led driver is no load limitation and about dimming mode is triac dimmable. This led power supply 12v is reliable, long-lasting and led power supply 60w will convert 180-265 volts down to 12 volts. With 7 Years Warranty,Longer warranty period than Tauras 60W led power supply
|
Features |
|
|
·Output constant voltage ·Input voltage range 180-265VAC ·Built-in PFC function ·Efficiency >83% ·Protections:short circuit/over voltage/over heat ·IP67 design for indoor or outdoor installations ·Cooling by free air convection ·Work with leading edge and trailing edge TRIAC dimmers ·Strong compatibility, flicker-free dimming ·Suitable for LED lighting and moving sign applications ·Compliance to worldwide safety regulations for lightings. ·5 years warranty |
|
model |
SMT-012-060VT |
SMT-024-060VT |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
5.00A |
2.50A |
|
|
Rated power |
60W |
60W |
|
|
Input |
Voltage Range |
180～265V AC |
|
|
Frequency Range |
50～60HZ |
||
|
Power Factor ( Typ.） |
PF≧0.78/180V,PF≧0.80/170V,PF≧0.81/220V,PF≧0.82/265V |
||
|
Full Load Efficiency（Typ.） |
>83% |
>83% |
|
|
AC Current（Typ.） |
0.58A/180VAC, 0.46A/220VAC, 0.41A/265VAC |
||
|
Leakage current |
﹤0.25mA/180V/220VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over voltage |
≦270VAC(180~265V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
EN-60950-1, EN61347-1/-2/-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level （surge4KV） |
||
|
Others |
Weight |
About 1.0Kg |
|
|
Size |
210*68.5*43mm（L*W*H） |
||
|
packing |
324*298*176mm （L*W*H） |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation . |
||

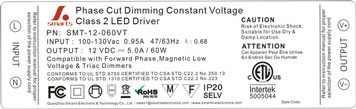

| Label |
|
||
 |
 |
 |
 |
